Falcon 24 Series Installation Instructions

24/25 series exit alarm kit

Advertisement

Quick Links

*23963390*
23963390
24/25 Series Exit Alarm Kit
Battery Holder
9 Volt Battery
Battery Clip

Important Note

• The Exit Alarm Kit requires a RX or LX switch mounted in the exit device.
1
Remove and discard existing cover plate.
A
b
a
B
Cylinder
Alarm
Hardware
PREPARE FOR INSTALLATION
d
c
Cover Plate
EA
Nut
2
If exit device has dogging, remove device from door.
If exit device does not have dogging (Fire or less dogging
applications), skip to step 4.
Cover Plate
25-R Device
Shown
Installation Instructions
Mortise cylinder
sold separately
1¹⁄₄"
(32 mm)
Standard cam

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Falcon 24 Series

  • Page 1: Important Note

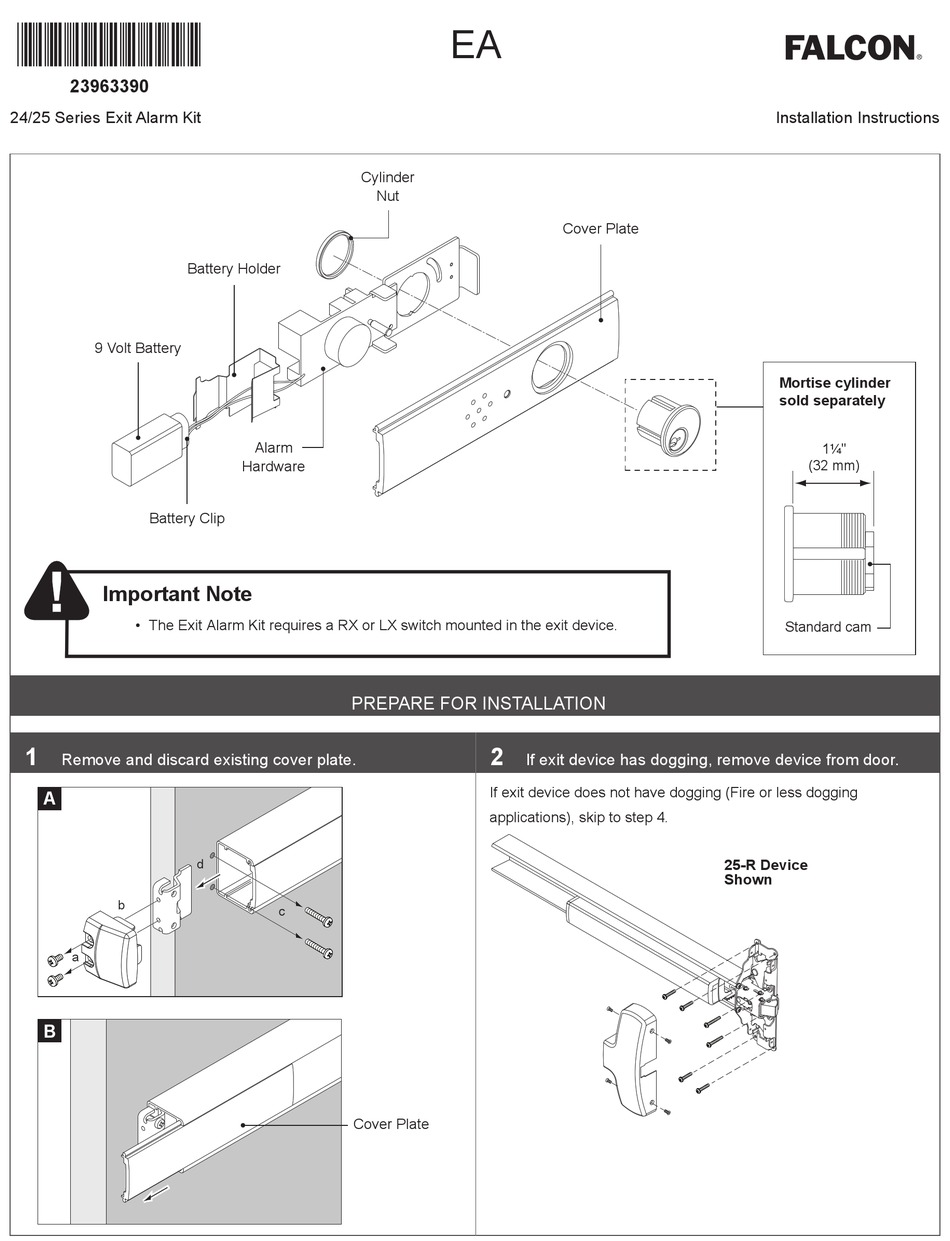

    *23963390* 23963390 24/25 Series Exit Alarm Kit Installation Instructions Cylinder Cover Plate Battery Holder 9 Volt Battery Mortise cylinder sold separately Alarm 1¹⁄₄" Hardware (32 mm) Battery Clip Important Note • The Exit Alarm Kit requires a RX or LX switch mounted in the exit device. Standard cam PREPARE FOR INSTALLATION Remove and discard existing cover plate.
  • Page 2 Cam should be in Remove and discard dogging assembly. OFF position before battery is installed Dogging assemblies are shown below. If exit device does not have LX or RX switch, install switch before proceeding. a. Remove pushbar endcap. Cut new cover plate as needed to match exit device length.
  • Page 3 d. Reinstall pushbar endcap. L Do not force endcap. If endcap does not fit easily, verify that the switch clip is oriented correctly and the pin is in the correct slot (step 6b). Reinstall exit device onto door as needed. Attach wiring to terminal blocks on exit alarm kit board as shown.
  • Page 4 Attach battery and holder into end cap bracket. OPERATING INSTRUCTIONS Insert the key into the cylinder and arm the unit by Battery turning the key clockwise to position B until it stops. Holder Return key to position A to remove. L Note: There is a 15 to 20 second delay before arming during which the LED will flash every 3 to 5 seconds.
