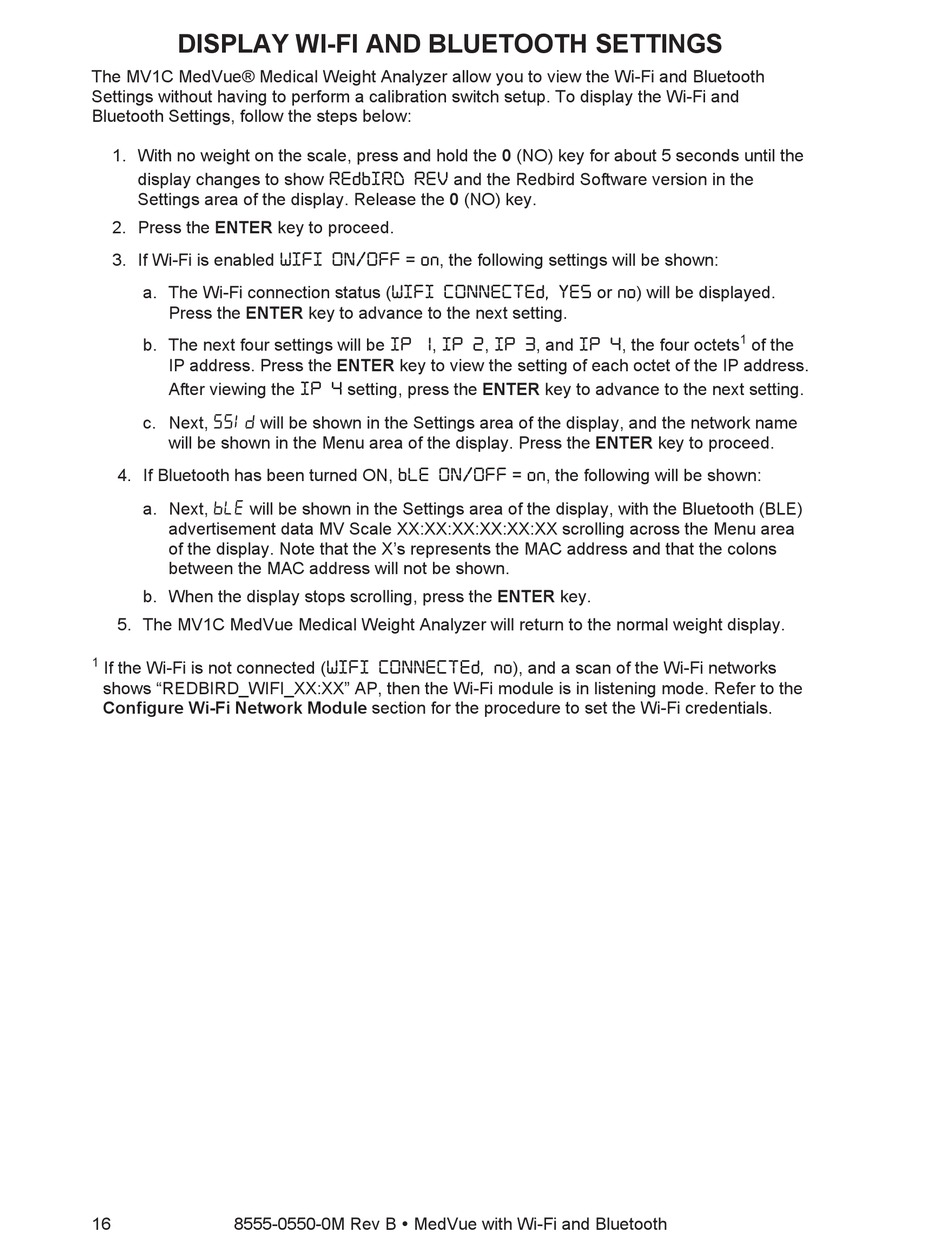

DISPLAY WI-FI AND BLUETOOTH SETTINGS
The MV1C MedVue® Medical Weight Analyzer allow you to view the Wi-Fi and Bluetooth
Settings without having to perform a calibration switch setup. To display the Wi-Fi and
Bluetooth Settings, follow the steps below:
1. With no weight on the scale, press and hold the 0 (NO) key for about 5 seconds until the
display changes to show
Settings area of the display. Release the 0 (NO) key.
2. Press the ENTER key to proceed.
3. If Wi-Fi is enabled
a. The Wi-Fi connection status (
Press the ENTER key to advance to the next setting.
b. The next four settings will be
IP address. Press the ENTER key to view the setting of each octet of the IP address.
After viewing the
c. Next,
will be shown in the Settings area of the display, and the network name
will be shown in the Menu area of the display. Press the ENTER key to proceed.
4. If Bluetooth has been turned ON,
a. Next,
will be shown in the Settings area of the display, with the Bluetooth (BLE)
advertisement data MV Scale XX:XX:XX:XX:XX:XX scrolling across the Menu area
of the display. Note that the X's represents the MAC address and that the colons
between the MAC address will not be shown.
b. When the display stops scrolling, press the ENTER key.
5. The MV1C MedVue Medical Weight Analyzer will return to the normal weight display.
1
If the Wi-Fi is not connected (
shows "REDBIRD_WIFI_XX:XX" AP, then the Wi-Fi module is in listening mode. Refer to the
Configure Wi-Fi Network Module section for the procedure to set the Wi-Fi credentials.
16
8555-0550-0M Rev B MedVue with Wi-Fi and Bluetooth
REdbIRD REV
and the Redbird Software version in the
WIFI ON/OFF
on
=
, the following settings will be shown:
WIFI CONNECTEd, YES
IP 1
IP 2
,
IP 4
setting, press the ENTER key to advance to the next setting.
bLE ON/OFF
WIFI CONNECTEd, no
no
or
) will be displayed.
IP 3
IP 4
,
, and
, the four octets
on
=
, the following will be shown:
), and a scan of the Wi-Fi networks
1
of the
