Summary of Contents for BERNSTEIN DPG5019

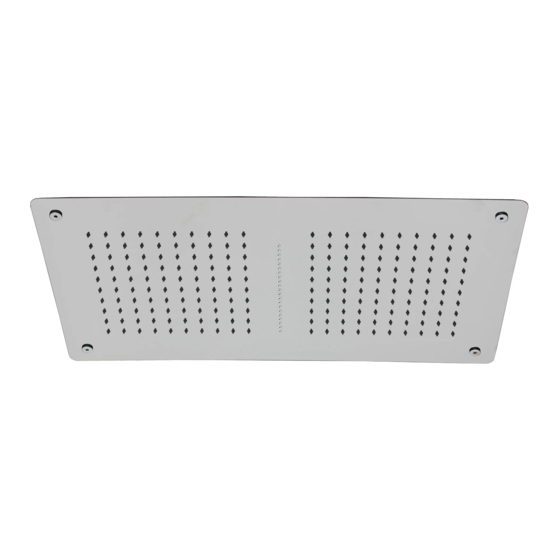

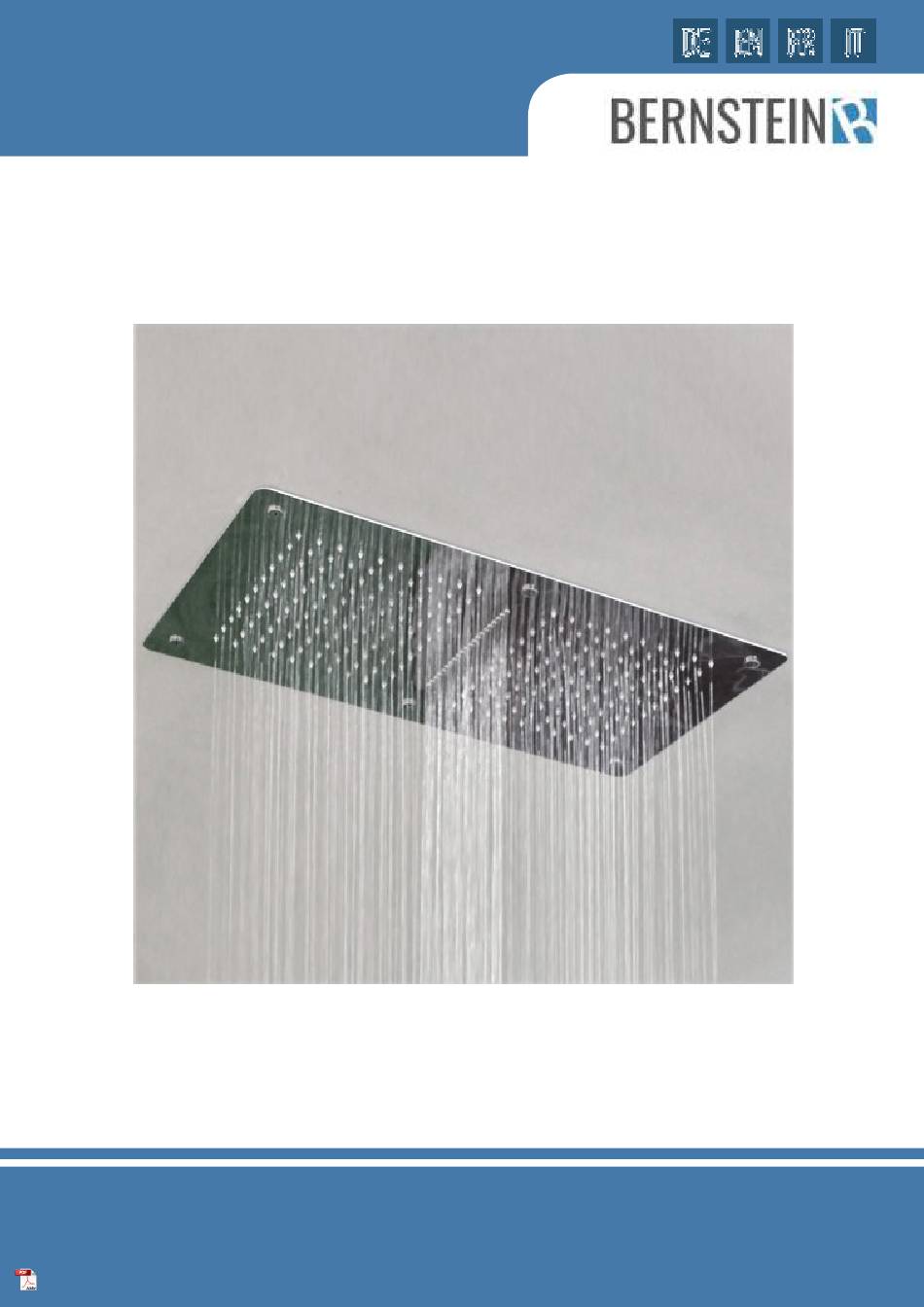

- Page 1 REGENDUSCHE EDELSTAHL DPG5019 RAINFALL CEILING SHOWER DPG5019 POMMEAU DE DOUCHE PLUIE DPG5019 SOFFIONE A SOFFITTO DPG5019 MONTAGEANLEITUNG - I / 2018 ASSEMBLY INSTRUCTIONS / NOTICE DE MONTAGE / ISTRUZIONI DI MONTAGGIO...
- Page 2 DPG5019 ERKLÄRUNG Die Bedienungsanleitung dient nur als Referenz. Diese Anleitung kann abweichende Angaben enthalten. Die beschriebenen Produkte können jederzeit aktualisiert werden. Die Zeichnungen in dieser Anleitung dienen nur zur Darstellung und haben keinen Anspruch auf Aktualität. STATEMENT This instructions should only be considered as a standard manual. Modifications applied to updated version of the pro- duct might not be mentioned inside this document.
- Page 3 DPG5019 Draw and drillfour holes on the wall. Insert plastic expansile screw.Turn the screw clockwise. Bottom view Adjust the expansion link. Make sure the holder is at the same line with ceiling.
- Page 4 DPG5019 FILL VALVE INSTALLATION 1. Please read carefully the following installation instructions in Refill tube order to avoid component damage or injury to the installer. 2. The instructions have been composed based in the latest product specifications. We reserve the right to make modifications to the packaging and specifications without providing prior notification.
- Page 5 DPG5019 3. CLEANING FILTER (Filter which is located inside the inlet valve shank is required for cleaning periodically). inlet connector filter water supply inlet connector pipe bracket bolt overflow tank pipe filter water supply switch 1. Shut off the water supply valve (angle stop) then remove the water supply line from the inlet adaptor.
