Ferrite Core

Installation Instructions

Stylistic LT C-500
In order to ensure compliance with the pertinent RF
emissions limits governing the Stylistic LT pen tablet,
shielded interconnect cables must be used.
Stylistic LT C-500

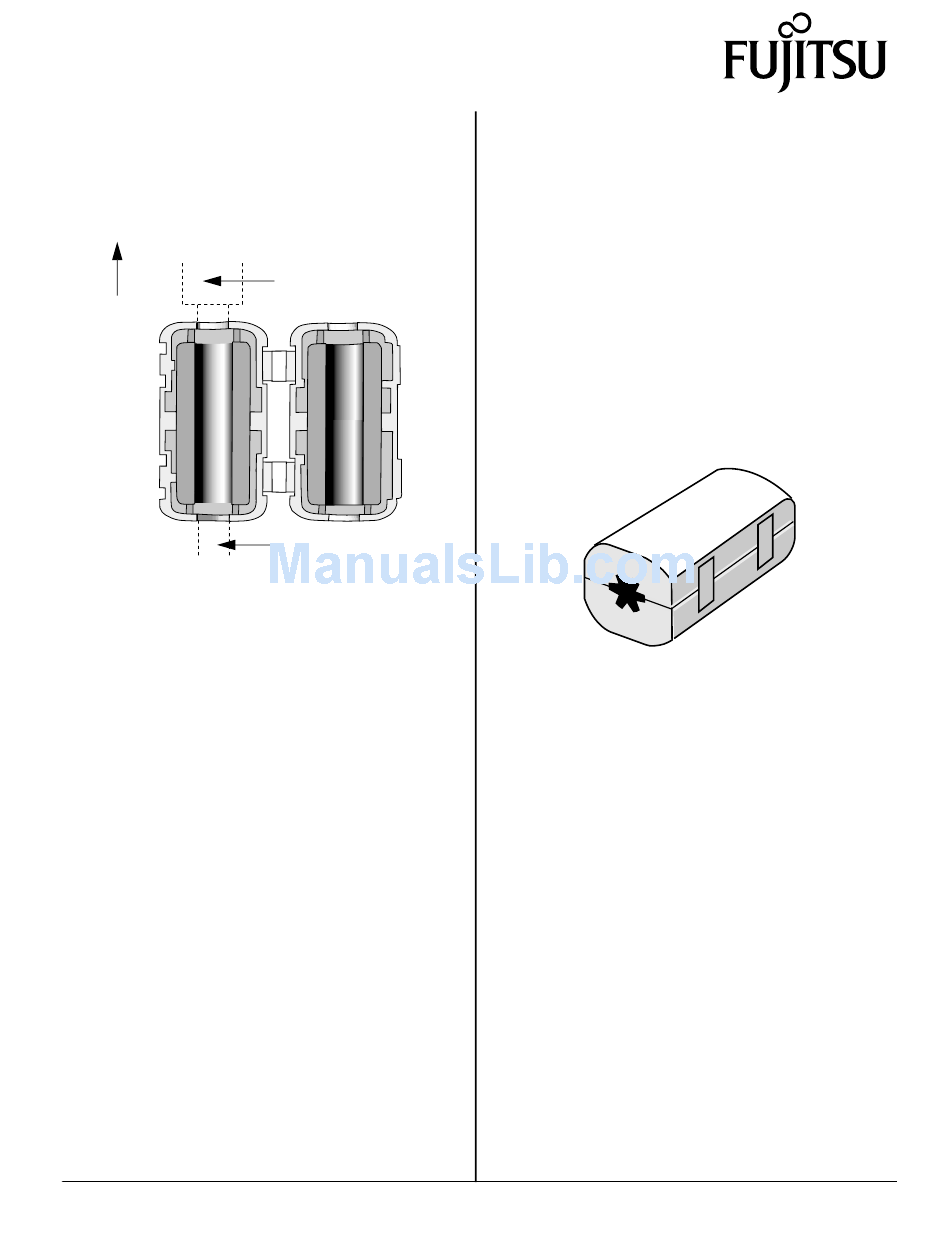

Figure 1. Ferrite Core - Open
To meet FCC Class B limits, ferrite cores must be added
to the RJ-11 and the microphone cables when they are
connected to the Stylistic LT C-500. The ferrite core
should be installed adjacent to the end of the cable that
attaches to the system.
8/00
Connector
Cable
Stylistic LT C-500 is a trademark of Fujitsu PC Corp. © 2000 Fujitsu PC Corp.
To install the core, open it up so that it lies flat (see
Figure 1). Lay the modem or microphone cable into
one of the channels in the open core. The cable should
be positioned so that it is as close as possible to the
connector that enters the pen tablet.
Holding the cable in place, snap the core around the
cable. Figure 2 illustrates the closed ferrite core
without a cable inserted. The illustration may differ
slightly from the ferrite core delivered with your
system.
Be sure to leave the ferrite core in place when the
modem and/or microphone cables are plugged into
the pen tablet.
Figure 2. Ferrite Core - Closed
58-0766-00A
