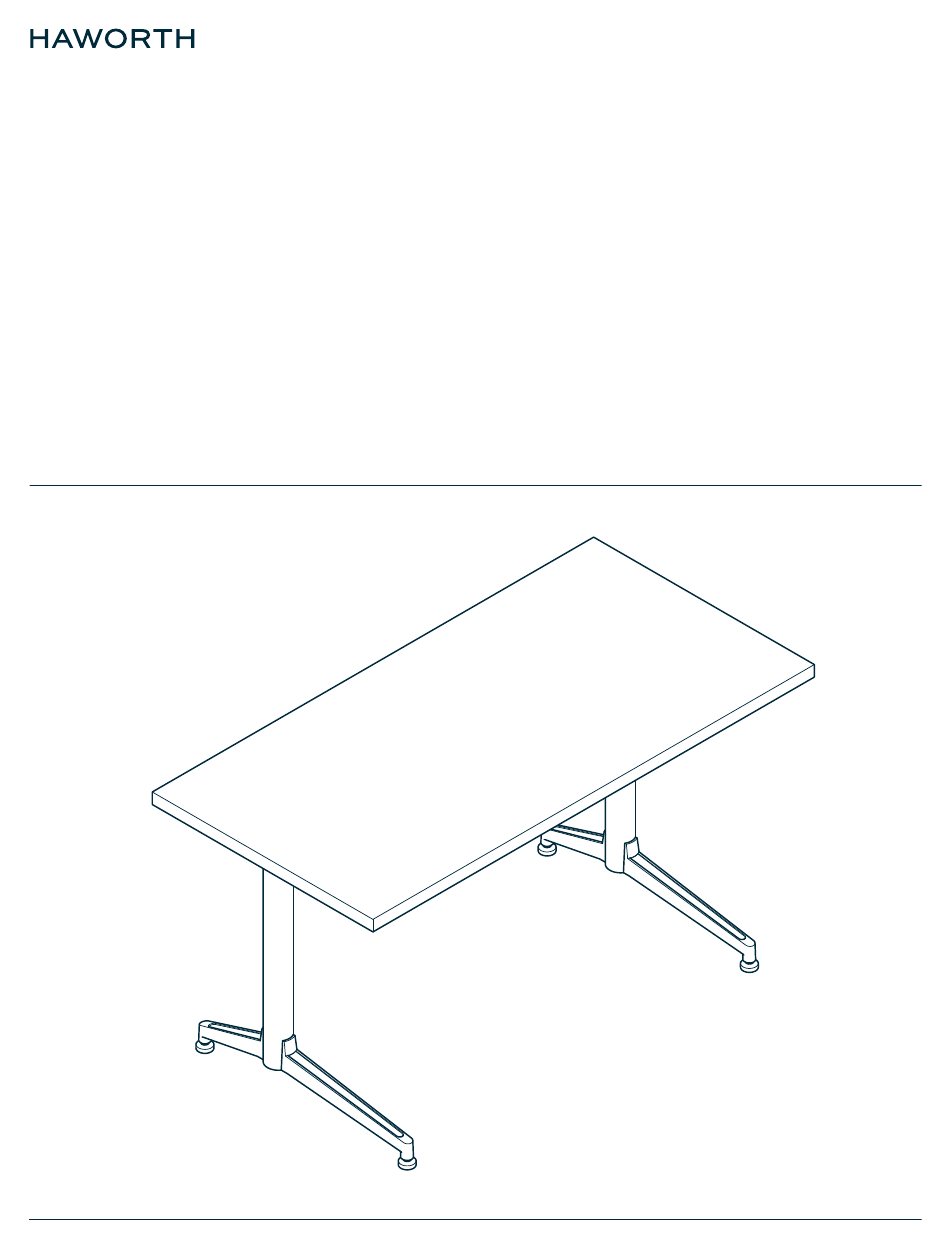

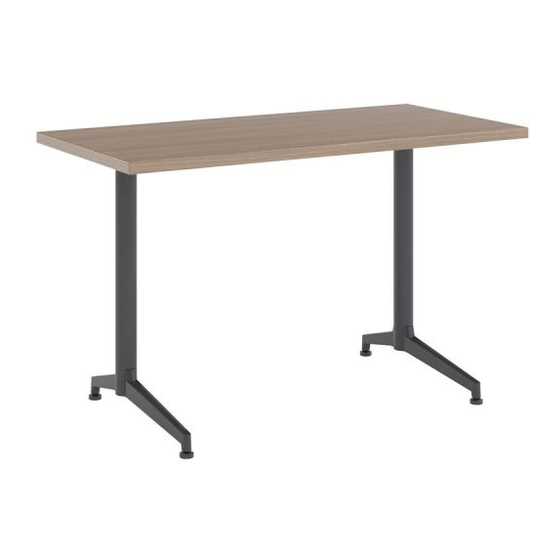

Jive
Congratulations on your
purchase of a new Jive Desk
with C-Leg Base!
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to create a dedicated workspace just for you?
We know you want to get up and running as soon as possible, but
before you dive right into setting up your desk be sure to:
1. Grab a friend to help you with the lifting. They can also help you
hold parts in place during assembly to make things a little easier.
2. Make sure you have all your parts and hardware, and gather the
necessary tools and safety equipment.
3. Follow all the steps and level your desk before using it.
That's it! Once you've got your desk assembled and leveled, you'll be
ready to get down to business with a fresh, new space that's
dedicated to helping you stay productive.
Advertisement
Table of Contents
Related Manuals for Haworth Jive
Summary of Contents for Haworth Jive
- Page 1 That’s it! Once you’ve got your desk assembled and leveled, you’ll be ready to get down to business with a fresh, new space that’s with C-Leg Base! dedicated to helping you stay productive. For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 Jive Desk with C-Leg Leg Base Assembly Instructions Tools Required Optional: For caster installation only. Wobble Extension 9/16” 9/16” Socket Assembly Overview 24D x 48W 24D x 60W 30D x 48W 30D x 60W S-66 Scale 1 : 1 (S-66) #12 x 1” Pan Head Screw...
- Page 3 Jive Desk with C-Leg Leg Base Assembly Instructions (A) Desk Top (B) Columns (C) Front Feet (Long) (D) Column Washers - Qty. 4 (E) Back Feet (Short) (S197) Hex Nuts - Qty. 4 (S-59) Hex Head Bolts - Qty. 4 (S-66) Pan Head Screws - Qty.
- Page 4 Jive Desk with C-Leg Leg Base Assembly Instructions Attach back foot (E) to column (B) as shown; repeat for second column 2 Qty. (S-59) 3/8” x 1-1/2” Hex Head Bolt 2 Qty. (S197) 3/8” Hex Nut S197 S-59 Attach front foot (C) to column (B) as shown; repeat for second column 2 Qty.
- Page 5 Jive Desk with C-Leg Leg Base Assembly Instructions Attach columns (B) to desk top (A) as shown 16 Qty. (S-66) #12 x 1” Pan Head Screw FRONT (SIDE VIEW) CASTER INSTALLATION - OPTIONAL Insert casters (F) and tighten with wrench as...
- Page 6 Jive Desk with C-Leg Leg Base Assembly Instructions With a helper, flip desk onto its feet FLIP DESK ONTO FEET Level desk as shown Customer Service: 800 426 8562 E.C.O. No 245-691 Part No 6100-0169 Rev 1 Page 6 of 6...
