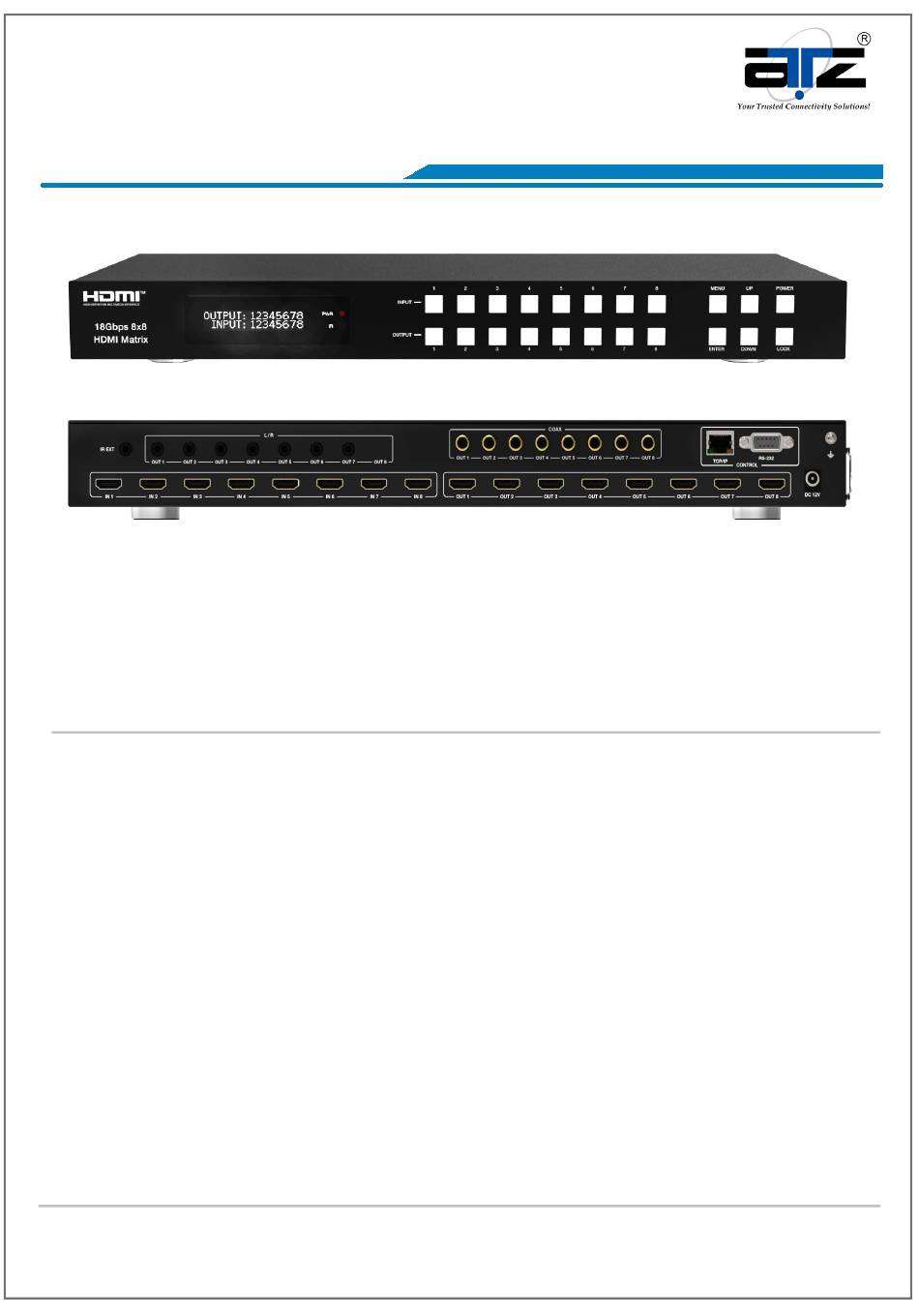

ATZ HDMI-V2-88DA Manual

8x8 hdmi matrix switch v2.0b,4k2k@60,18gbps downscaler+arc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model
: ATZ HDMI-V2-88DA
Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC
The 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz
YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8
HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8
HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from
HDMI display devices will be extracted to coaxial audio output. Each HDMI output of
this 8x8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is
via front panel buttons, IR remote, RS-232, LAN and Web GUI.
Features:
HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
•
Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
•
Support 18Gbps video bandwidth
•
Dolby Vision, HDR10+ and HLG are supported.
•
Support 4K->1080P Down Scaler for each output port
•
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
•
Master Audio)
Audio de-embedded is supported via analog and coax ports
•
ARC, CEC and smart EDID management are supported
•
1U rack mounted design with front panel OLED display
•
Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
•
Notes
: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
pg. 1
All specifications are subject to change without prior notice.
© Copyright ATZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMI-V2-88DA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATZ HDMI-V2-88DA

Summary of Contents for ATZ HDMI-V2-88DA

  • Page 1 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC The 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports.

  • Page 2: Specifications

    Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Specifications: Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@50/60Hz (4:4:4) Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0 Color Depth...

  • Page 3: Operation Controls And Functions

    Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Operation Controls and Functions Front Panel Name Function Description OLED screen Display matrix switching status, input / output port, EDID, Baud rate, IP Address. Power LED The LED will illuminate in green when the product is connected to power supply, and red when the product is on standby.

  • Page 4: Rear Panel

    Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Rear Panel Name Function Description If the IR receiver window of the unit is blocked or the unit is IR EXT installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT”...
  • Page 5 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC IR Remote ①Power on or Standby: Power on the Matrix or set it to standby mode. ② Input 1/2/3/4/5/6/7/8: Select input source button. : Select the last or next input source button.
  • Page 6 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC IR Cable Pin Assignment EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 8 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI.

  • Page 7: Edid Mode

    Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC On-panel button operation: On the initial OLED display screen, press “MENU” button to enter the EDID setting interface, press “UP/DOWN” button to select the required EDID, and press the “ENTER” button. A prompt “copy to input:” will appear. Then press “UP/DOWN”...
  • Page 8 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC 4K2K60_444, Stereo Audio 2.0 4K2K60_444, Dolby/DTS 5.1 4K2K60_444, HD Audio 7.1 4K2K60_444, Stereo Audio 2.0 HDR 4K2K60_444, Dolby/DTS 5.1 HDR 4K2K60_444, HD Audio 7.1HDR USER1 USER2 Copy from hdmi output 1...
  • Page 9 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC After entering the Web GUI page, there will be a Login page, as shown below: Select the Username from the list and enter the password. The default passwords are:...
  • Page 10 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Video Page ■ You can do the following operations on the Video page: ① Output: The current device’s OUTPUT port. You can select signal source for it. ② Input: You can click the drop-down menu to select signal source for the corresponding OUTPUT port.
  • Page 11 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC name (max length: 12 characters) in the input box (Chinese name is unsupported). ④ EDID: You can set the current channel’s EDID. The specific operation is as follows: Set EDID for the User: Click the “Browse”...
  • Page 12 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC ⑥ Stream: Turn on/off the output stream. CEC Page ■ You can perform CEC management on this page: ① Input Control: You can control the operation of each input source by clicking the icons on the page.
  • Page 13 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Set the Default Network Click “Set Network Defaults”, there will be a prompt, as shown in the following figure: Click “OK” to search the IP Address again, as shown in the following figure:...
  • Page 14 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC After modification, if the Mode is “Static”, it will switch to the corresponding IP Address; if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by the router.
  • Page 15 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Then, open a Serial Command tool on PC to send ASCII command to control the Matrix. The ASCII command list about the product is shown as below. ASCII Command Serial port protocol.
  • Page 16 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC z=0~4 (0:off, 1:always on, 2:15s, s lcd on time 1! s lcd on time z! lcd on 15 seconds 3:30s, 4:60s) r lcd mode! Get the backlight status of lcd...
  • Page 17 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC 15, 4K2K60_420,HD Audio 7.1 16, 4K2K60_444,Stereo Audio 17, 4K2K60_444,Dolby/DTS 5.1 18, 4K2K60_444,HD Audio 7.1 19, 4K2K60_444,Stereo Audio 2.0 HDR 20, 4K2K60_444,Dolby/DTS 5.1 21, 4K2K60_444,HD Audio 7.1 22, User1 23, User2...
  • Page 18 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC x=0~8(0=all input) operation s cec in x next! set input x next by CEC, s cec in 1 next! input 1 next operation x=0~8(0=all input) s cec hdmi out y...

  • Page 19: Package Includes

    Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC r tcp/ip port! r tcp/ip port! Get network TCP/IP port TCP/IP port:8000 s telnet port x! Set network telnet port s telnet port 23! Set Telnet port:23 (x=1~65535) r telnet port!
  • Page 20 Model : ATZ HDMI-V2-88DA Description: 8x8 HDMI Matrix Switch v2.0b,4K2K@60,18Gbps Downscaler+ARC Product Diagram: Warranty: 2 Years Warranty is effective from the date of original delivery. This warranty shall be void if a serial number has been removed from the product.
