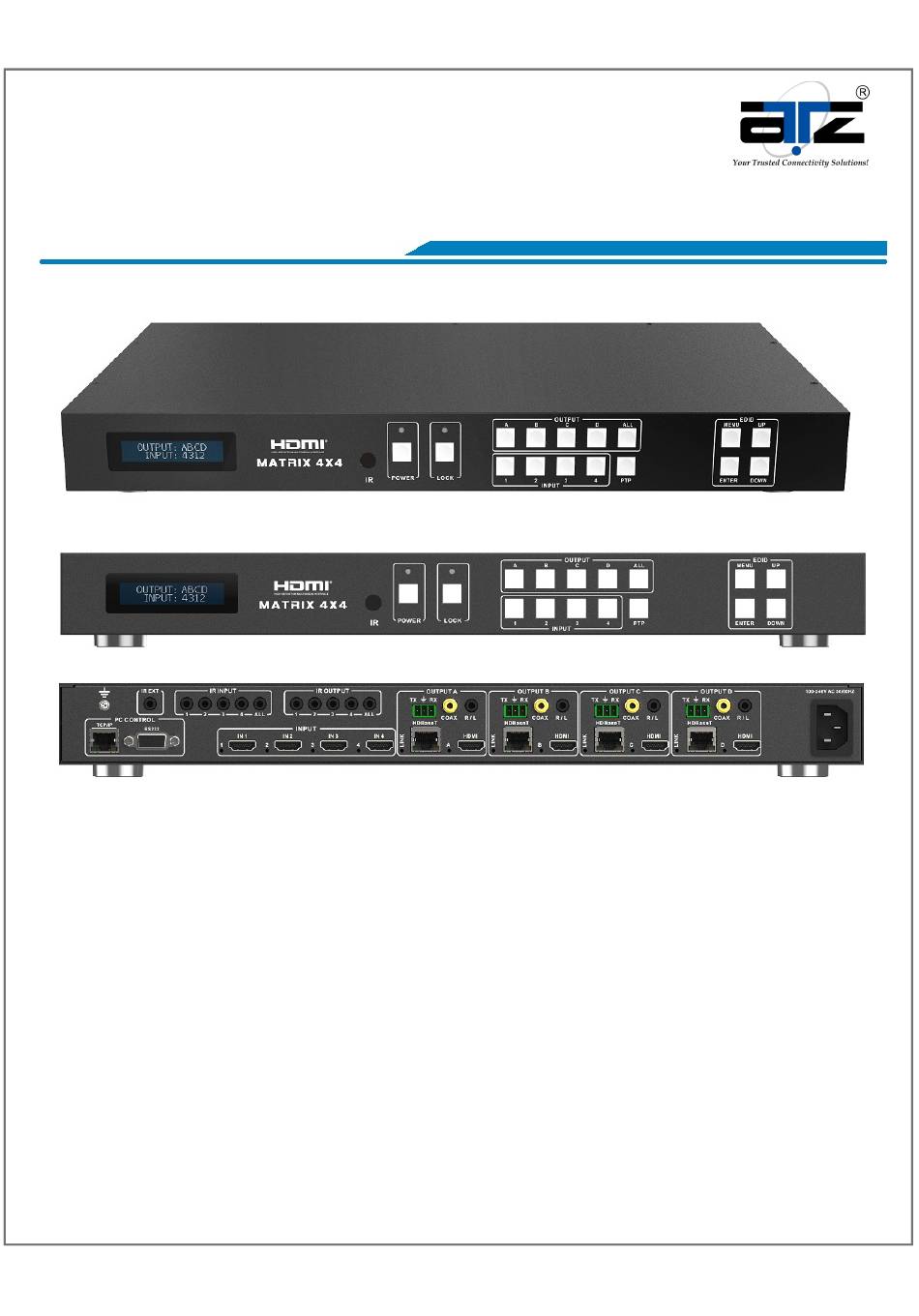

ATZ HDMI-V2-44HE70 Quick Start Manual

4×4 matrix switch over hdbaset™ w/4x hdbaset receiver box 70m, 4k60 4:2:0 hdmi2.0 hdcp2.2
Hide thumbs

Advertisement

Quick Links

Download this manual
Model
: ATZ HDMI-V2-44HE70
Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m,
4K60 4:2:0 HDMI2.0 HDCP2.2
This HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs
connects four HDMI sources to eight displays. This matrix features four HDMI outputs
and each HDMI output is mirrored to provide a CAT-Cable output which runs
simultaneously. It supports the transmission of video (resolutions up to 1080p Full HD
and 4Kx2K@30Hz) and supports high resolution digital audio formats such as LPCM
7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Connect a HD BaseT
Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m
(70m Version) or 131ft/40m(40m version)for multi-room connectivity. It works with
Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that connect to
an HDMI display. Any source is accessible at all times by any display by selecting it via
the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the
front panel. This device supports High Definition Audio, and 3D signal compatibility
pg. 1
Notes
: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDMI-V2-44HE70 and is the answer not in the manual?

Questions and answers

Related Manuals for ATZ HDMI-V2-44HE70

Summary of Contents for ATZ HDMI-V2-44HE70

  • Page 1 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 This HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously.
  • Page 2 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 Features: • HDMI2.0, HDCP2.2 compliant. • Support color space conversions among RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats without deep color.
  • Page 3 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 Human-body Model: ± 8kV (Air-gap discharge)± 4kV ESD Protection (Contact discharge) Power Supply AC Power Supply (US/EU standards, CE/FCC/UL certified) Dimensions 440 mm (W)×200 mm (D)×45 mm (H)
  • Page 4 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 Press this button to lock all the buttons on the panel, press LOCK again to unlock Press the OUTPUT and INPUT button to select the output corresponding input.
  • Page 5 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 3D,1080p, HD AUDIO 4K x 2K@30Hz, 2CH AUDIO 4K x 2K@30Hz , DOLBY/DTS 5.1 4K x 2K@30Hz , HD AUDIO 4K x 2K@60Hz, 2CH AUDIO 4K x 2K@60Hz , DOLBY/DTS 5.1...
  • Page 6 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 What options do I have to manage the EDID in the HDMI Matrix? First, it is important to note that each source device can only output one video/audio signal type.

  • Page 7: Remote Control

    Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 OUTPUT and the HDBT OUTPUT connect to the HDBT Receiver. The coaxial and analog audio output connect to the audio amplifier.

  • Page 8: Ir Control System

    Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 IR Control system (IR Call-back of Matrix and Source Devices) The matrix is not only a switcher and extender of multiple HDMI...
  • Page 9 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 NOTE: Infrared receiving areas of devices can be located by shining a flashlight onto the front of the device – the sensor should be able to be seen through the plastic as a small, round object inside.
  • Page 10 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 pg. 10 Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time.

  • Page 11: Hdbt Receiver

    Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 HDBT Receiver Number Name Function description This LED illuminates when the device is connected with POWER power supply DC 24V Plug the 24V DC power supply into the unit.
  • Page 12 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 D ark: No HDMI signal. ※ Description 1 ※ POE(Power Over Ethernet) Application Example: This system can run by only the matrix(TX) is powered, RXs do not need powered.
  • Page 13 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 Description 2 ※ GLOBAL IR control Application Example:  TV remote can control all TV at the same time.  All DVD remotes can control DVD, but not at the same time.
  • Page 14 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 Description 3 ※ Bidirectional RS-232 control Application Example:  This system provides 4 channel RS-232. pg. 14 Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time.
  • Page 15 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 Operate and Connect Connect up to 4 sources such as a Blue-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI inputs on the unit. Do not hot plug! Insert and extract cables carefully with the power switch off.
  • Page 16 Model : ATZ HDMI-V2-44HE70 Description : 4×4 Matrix Switch Over HDBaseT™ w/4x HDBaseT Receiver Box 70m, 4K60 4:2:0 HDMI2.0 HDCP2.2 HDBT Receiver display receivers (sold separately) (using well terminated or pre-terminated Cat5e/6/7 cables no longer than 230 ft/70M) 3. If utilizing UTP, connect the output HDMI ports of the HDBT Receiver display receivers (sold separately) to high-definition displays such as an HDTV or HD projector that use HDMI inputs.
