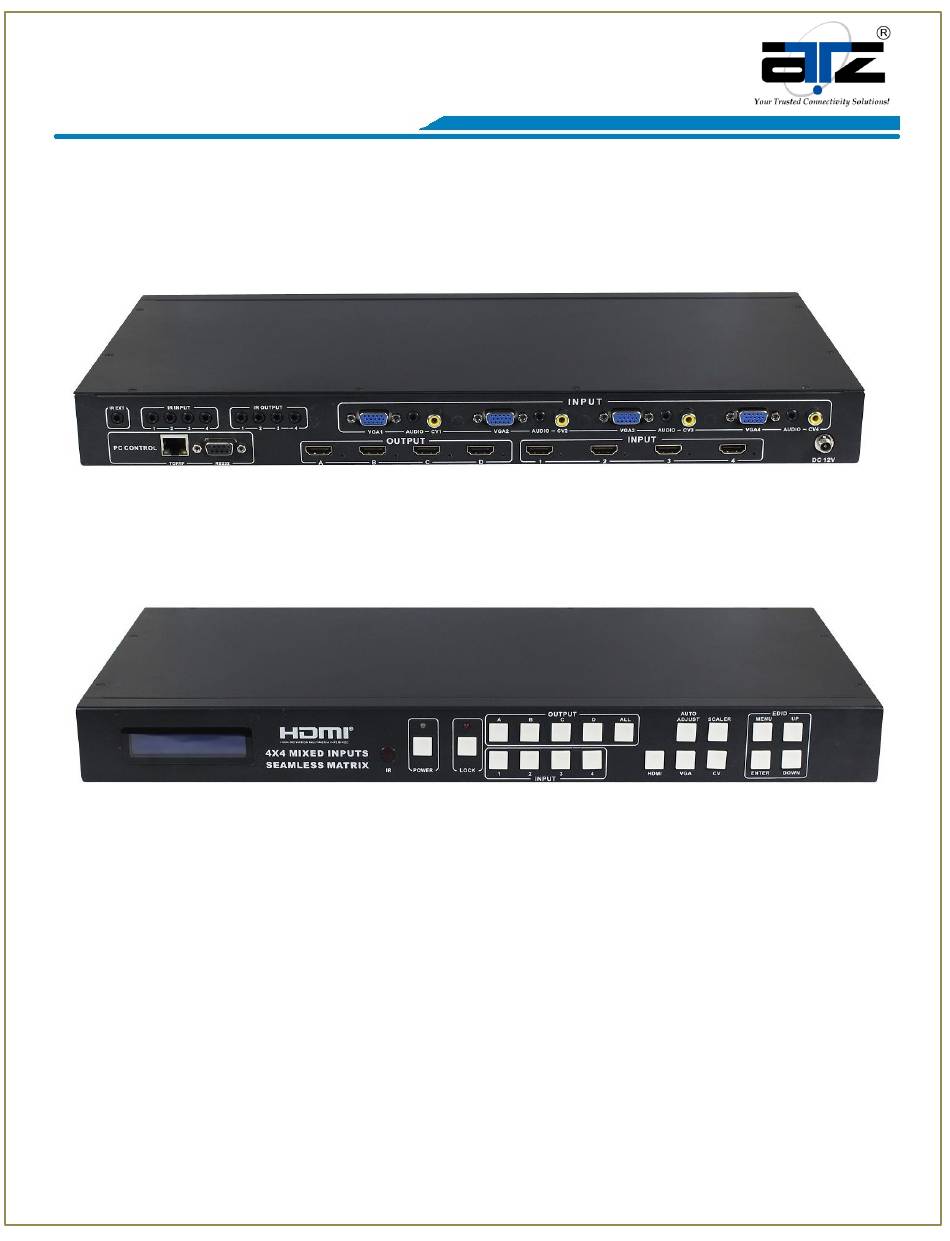

ATZ HDMI-444MPR-TW Manual

4x4 hdmi 1.4 seamless matrix switch supports pip/pop/video wall supports mixed inputs
Hide thumbs

Advertisement

Quick Links

Download this manual
Model
: ATZ HDMI-444MPR-TW
Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall
Supports mixed inputs
I. Introduction
This is a high performance HDMI Matrix with four HDMI inputs & four outputs. It allows
any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be
shown on the any of the four displays simultaneously, and supports 4K×2K, 3D, Deep
Color. With its 3Gbps bandwidth and the additional features of the latest HDMI
standards you can be sure of great HDMI distribution. It features Seamless switching
function, Seamless switching mode: fast switching, fade in/fade out, blinds and so on.
The mixing matrix switcher adopts the advanced digital technology, with scaler function,
and achieve a variety of formats to achieve a unified output signal, switching seamlessly
pg. 1
All specifications are subject to change without prior notice.
© Copyright ATZ 2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDMI-444MPR-TW and is the answer not in the manual?

Questions and answers

Related Manuals for ATZ HDMI-444MPR-TW

Summary of Contents for ATZ HDMI-444MPR-TW

  • Page 1 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs I. Introduction This is a high performance HDMI Matrix with four HDMI inputs & four outputs. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, and supports 4K×2K, 3D, Deep...
  • Page 2 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs perfect visual effects. At the same time it with infrared matrix function, analog video signal input with embedded audio function. Flexible control mode diversity, through the front panel button, remote control,RS-232 and TCP/IP control.
  • Page 3 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 4. Specifications Input Ports 4×HDMI, 4xVGA, 4xRCA, 1×RS-232, 1xRJ-45(Control), 5×IR INPUT, 4xAudio Output Ports 4×HDMI, 4xIR OUTPUT Input Resolutions Support Up to 1920x1080P@60Hz...

  • Page 4: Panel Functions

    Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 5. PANEL FUNCTIONS 5.1 Front Panel Part 1. LCM: Displays the information of each input and output setting and EDID management . Part 2. IR: IR Receiver window (accepts the remote control signal of this device only).
  • Page 5 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs wall. For example: a. Select matrix mode, press buttons HDMI/M1 > ENTER. b. Select multi-viewer mode, press buttons VGA/M2 > ENTER, and press buttons A/B/C/D select different mode c.
  • Page 6 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs Why is EDID so important with the HDMI Matrix ? The Matrix is complex piece of technology that replicates and switches between multiple inputs and outputs.

  • Page 7: Part5: Hdmi Input

    Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs Part1: IR Channel IR EXT: if the panel sensor is obstructed or the unit is installed in a closed area out of infrared line of sight, the IR RX receiver included can be inserted into the IR EXT port at the rear to extend the IR sensor range and enable local control of the matrix.
  • Page 8 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 6. Remote Control (1). Press this button to power on the matrix or set it to standby mode. (2).RESET Button: Press this button reset to the factory settings (3).Output selection and Picture adjust a.
  • Page 9 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 7. IR Control system At Matrix end: Insert the 3.5mm jacks of the IR TX Emitters included with the unit into the IR TX Emitter ports at the rear of the matrix according to input. The IR signal is added to the HDMI of the input device so, for example, if the user is watching Blu-ray on input 1, the IR signal will be directed through the IR TX1 socket to control the device.
  • Page 10 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 9. PC controller user guide Installation Matrix controller is a green software. Just copy MatrixController.exe to PC which is used to control the Matrix by RS232 COM port or TCP/IP to complete installation.
  • Page 11 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 1. Select RS232 COM or TCP mode 2. Select RS232 COM port 3. Click to connect or disconnect PC and Matrix 4. Select Matrix IP 5.
  • Page 12 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 1. Select auto or static IP 2. Rewrite the Matrix IP 3. Rewrite the Matrix MAC  The Multi-viewer mode The Multi-viewer mode has a variety of display modes. All the display modes as below:...
  • Page 13 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs Picture outside Picture (POP) Displaying Mode 1: Mode 2: Mode 3: pg. 13 All specifications are subject to change without prior notice. © Copyright ATZ 2015...
  • Page 14 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs Picture in Picture (PIP) Displaying Mode 4: pg. 14 All specifications are subject to change without prior notice. © Copyright ATZ 2015...
  • Page 15 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs  The video wall mode Detailed operations: While the PC software is running normally, click on the button In this area, users can set the bezel size of the adjacent images in zoom-in model, to make the whole image looks coherently.
  • Page 16 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs Diagram of Video Wall Displaying 4x Zoom-in: It means matrix switcher is able to zoom in the input image and spilt to 4 parts, and then full-screen display on the output displayers one to one.
  • Page 17 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs 1. Select the needed EDID to input port and click set button the EDID will write to the selected HDMI input ports. “Matrix” page ...
  • Page 18 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs “FW upgrade” page  1. Click to open FW file(file extension is “.fw”) 2. Display the FW file path 3. Displaying the progress of the software upgrade 4.
  • Page 19 Model : ATZ HDMI-444MPR-TW Description: 4X4 HDMI 1.4 SEAMLESS Matrix Switch supports PIP/POP/Video Wall Supports mixed inputs Connect up to 4 sources such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI ,VGA or CV inputs on the unit. Insert and extract cables carefully with the power switch off.
