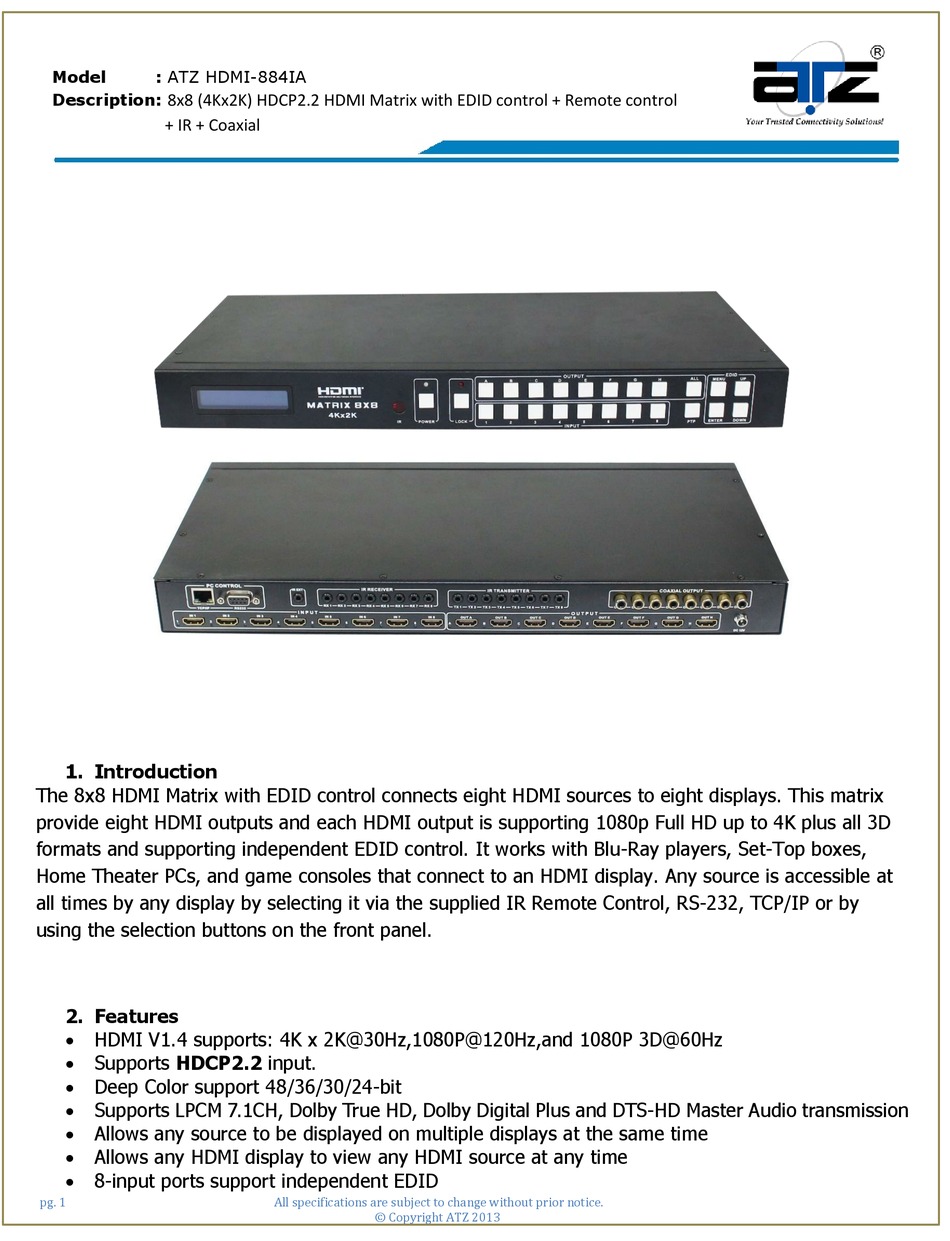

ATZ HDMI-884IA Manual

Model : ATZ HDMI-884IA
Description:
8x8 (4Kx2K) HDCP2.2 HDMI Matrix with EDID control + Remote control
+ IR + Coaxial
1. Introduction
The 8x8 HDMI Matrix with EDID control connects eight HDMI sources to eight displays. This matrix
provide eight HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D
formats and supporting independent EDID control. It works with Blu-Ray players, Set-Top boxes,
Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at
all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by
using the selection buttons on the front panel.
2. Features
 HDMI V1.4 supports: 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
 Supports HDCP2.2 input.
 Deep Color support 48/36/30/24-bit
 Supports LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio transmission
 Allows any source to be displayed on multiple displays at the same time
 Allows any HDMI display to view any HDMI source at any time
 8-input ports support independent EDID
