- Page 1 LogTag Recorders TRED30-16R Temperature Recorder with Display Product User Guide Document Release Version: 1.5 Published 22. February 2019 Copyright © LogTag Recorders, 2004-2019 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Marking a reading with an inspection mark Clearing an Alarm Paused Readings Sensor is disconnected Power Save Total Number of Days Statistics Collected Reviewing Day Statistics directly on the TRED30-16R Trip Minimum/Maximum Temperatures Resetting the Trip Minimum/Maximum Temperatures Stopping the TRED30-16R Automatically Push-button stop... -
Page 3: Safety Information
For consequential loss. Battery Life The main battery in the TRED30-16R is designed to power the device for up to 12 months, provided ... … a fresh battery from a reputable manufacturer is used, … the device is not downloaded excessively (more than once a week), …... -
Page 4: Introduction

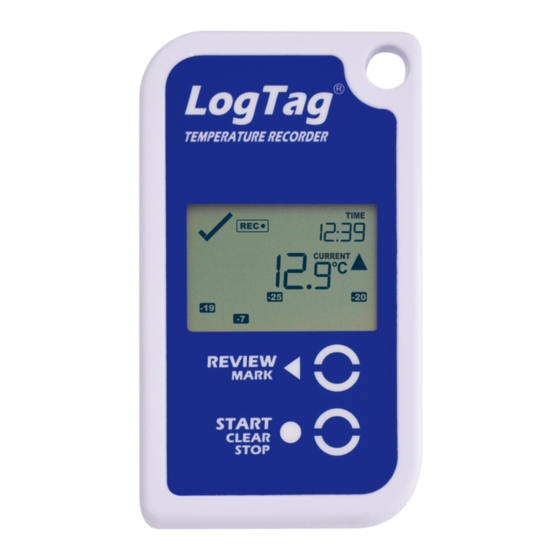

Introduction ® The LogTag TRED30-16R temperature logger features a data logging memory storing up to 15,905 temperature readings and a separate statistical memory, storing maximum and minimum reading as well as alarm duration for each of the last 30 days. -
Page 5: Display
Analyzer installed. Optional Items In addition to the above, following items are useful accessories: A wallmount bracket, which can be used, for example, to attach the TRED30-16R to the side of a cabinet. A Glycol buffer This buffer simulates the temperature of the environment inside a vaccine vial. -
Page 6: Configuring The Tred30-16R
Configuring the TRED30-16R TRED30-16R User Guide Configuring the TRED30-16R Before a TRED30-16R logger can be used, it must be configured with the parameters required for starting ® and recording temperature values . This is done using LogTag Analyzer software, which is also used for downloading and analyzing data. -
Page 7: Tred30-16R Start Options
You cannot combine a date/time start with pre-start readings or the start delay function. Audible Alarm The TRED30-16R is fitted with a buzzer, which can be turned on when an alarm event has been registered ® to provide extra feedback. This function is enabled or disabled when... -
Page 8: Alarm Configuration Options
Alarm Configuration Options The TRED30-16R can display an alarm if either of the configured alarm trigger conditions have been met. This is indicated on the display by showing the Alarm Indicator ( ) and the Day Alarm Marker for today (... -
Page 9: Advanced Configuration Options
Advanced Configuration Options Select Advanced Options for additional configuration settings. These settings decide how some of the elements are displayed on the screen and set certain options specific to the TRED30-16R. Figure 3: TRED30-16R advanced configuration screen Parameters that influence the appearance of the display are ... -
Page 10: Display Overview
OK. ALARM/OK indicator symbol is shown as soon as the TRED30-16R has registered an alarm event. If no alarms have been registered, or if an existing alarm has been cleared, the symbol is shown. - Page 11 Display Overview TRED30-16R User Guide Time Value and Time Indicators The time value display is used to show one of the following: a clock with the current time, time remaining to start of logging with a delayed start or ...
-
Page 12: Real Time Clock
Real Time Clock TRED30-16R User Guide Real Time Clock The time shown on the recording display is linked to the logger’s internal real time clock. A day change occurs when the display time rolls through midnight (i.e. 00:00). This is the primary function of the display clock. -
Page 13: Starting The Logger
Once disappears, release the button within two seconds. will also disappear, and the READY STARTING symbol will be shown. The TRED30-16R now records temperature data. The logger will not start if you… … release the button before disappears READY … keep holding the button for more than 2 seconds after disappears. -
Page 14: Push Button Start, Quickstart Disabled
Starting the Logger TRED30-16R User Guide Push button start, quickstart disabled Again, the logger must be in mode for it to be started. READY Press and hold the button. The symbol starts flashing for about 4 seconds. START STARTING /CLEAR/STOP Then the symbol remains on permanently for 2 seconds. -
Page 15: Push Button Start With Start Delay
STOPPED Automatic date/time start If you configured the TRED30-16R for a date/time start, it will start recording temperature values as soon as the entered start time is reached. The logger will display the following if a Date/Time Start has been chosen: ®... -
Page 16: During Recording
The day summary has shifted by 1 day as the display time has passed through midnight (00:00). Marking a reading with an inspection mark When you press the button, the next reading taken by the TRED30-16R will be identified in REVIEW /MARK the downloaded data with an inspection mark. -
Page 17: Clearing An Alarm
Paused Readings During configuration of the TRED30-16R you can set the option to ignore up to 15 readings for alarm- and statistics calculations after either button is pressed. The readings are still shown on the graph and in the data listing, but they are labelled as paused, and their value is ignored when determining alarm trigger conditions, minimum/maximum values and other statistical calculations. -
Page 18: Sensor Is Disconnected
Sensor is disconnected The display shows --.-, if the external sensor of the TRED30-16R is disconnected. This function is useful if the sensor is permanently mounted , but you wish to take the TRED30-16R to a computer for downloading its data. -
Page 19: Total Number Of Days Statistics Collected
Stopped Display. Figure 5: TRED30-16R recording, showing ‘18’ days of data has been collected. Figure 6: TRED30-16R stopped, showing ‘27’ days of data has been collected. Note, this is not always the number of days the logger has collected data. Depending on the... -
Page 20: Reviewing Day Statistics Directly On The Tred30-16R
Reviewing Day Statistics directly on the TRED30-16R User Guide TRED30-16R Reviewing Day Statistics directly on the TRED30-16R The review of day statistics history is accessed by pressing the button REVIEW /MARK You can review the data regardless of whether the logger is still logging data, or has already been stopped. - Page 21 Reviewing Day Statistics directly on the TRED30-16R User Guide TRED30-16R an alarm was triggered, indicated by the , as this duration was longer than the allowed time above the threshold The maximum temperature recorded yesterday was 12.9 °C. Pressing the button now displays yesterday’s minimum statistic:...
- Page 22 Reviewing Day Statistics directly on the TRED30-16R User Guide TRED30-16R flashes and -07 is shown to indicate that the data being displayed is from seven days DAYS ago. Seven days ago recordings above the upper threshold were recorded, indicated by the upper alarm threshold marker ...
-
Page 23: Trip Minimum/Maximum Temperatures
TRED30-16R User Guide TRED30-16R Trip Minimum/Maximum Temperatures You can configue the TRED30-16R so it tracks the minimum and maximum temperatures since it started logging. This feature needs to be enabled during configuration of the logger in the Advanced Configuration Options on page 9. - Page 24 Reviewing Day Statistics directly on the TRED30-16R User Guide TRED30-16R You can only complete the next steps if you are viewing the Minimum temperature screen! press and hold . After 1 second the following screen sequence will show, and then...
-
Page 25: Stopping The Tred30-16R
Stopping the TRED30-16R Automatically The TRED30-16R automatically stops recording temperature when the maximum number of readings specified during configuration has been reached. Your unit can also be set up to stop automatically when it is downloaded. This option needs to be set up at the factory and cannot be changed during configuration ®... -
Page 26: Push-Button Stop, Quick Stop Disabled
Stopping the TRED30-16R TRED30-16R User Guide Push-button stop, quick stop disabled Press and hold the button. The symbol starts flashing for 4 seconds. START STOPPED /CLEAR/STOP Then the symbol turn on permanently: STOPPED Release the button within 2 seconds. The logger will now stop taking readings. -
Page 27: Resetting The Logger
(typ. 5 or more years). This is useful for conserving battery life when the logger is not used for extended periods . ® TRED30-16R loggers are placed into Hibernation using LogTag Analyzer by clicking Hibernate on the LogTag menu. - Page 28 Hibernating a TRED30-16R TRED30-16R User Guide the low battery symbol if the battery requires replacing. the text not rdY if the battery is OK, and the logger can be re-activated at a later point. A hibernated logger can be activated again by pressing and holding the buttons together for a period of 6 seconds.
-
Page 29: Technical Specifications
Sensor Compatibility Weight All ST100 precision thermistor external probes can be interchangeably 43g (excluding probe) connected to the TRED30-16R. Please refer to the dedicated sensor page on the LogTag Recorders website. Calibration Calibration traceable to an ISO/IEC 17025 accredited testing laboratory Clock accuracy Quartz crystal locked real time clock, rated accuracy ±25ppm @ 25 °C (equiv... -
Page 30: Appendix 1 - Battery Replacement
® Hibernate the unit using LogTag Analyzer. and make sure it covers the range of the TRED30-16R. Failing to hibernate the logger may result in serious memory corruption. As a result you may Put a new CR2032 cell into the battery no longer be able to use this product.
