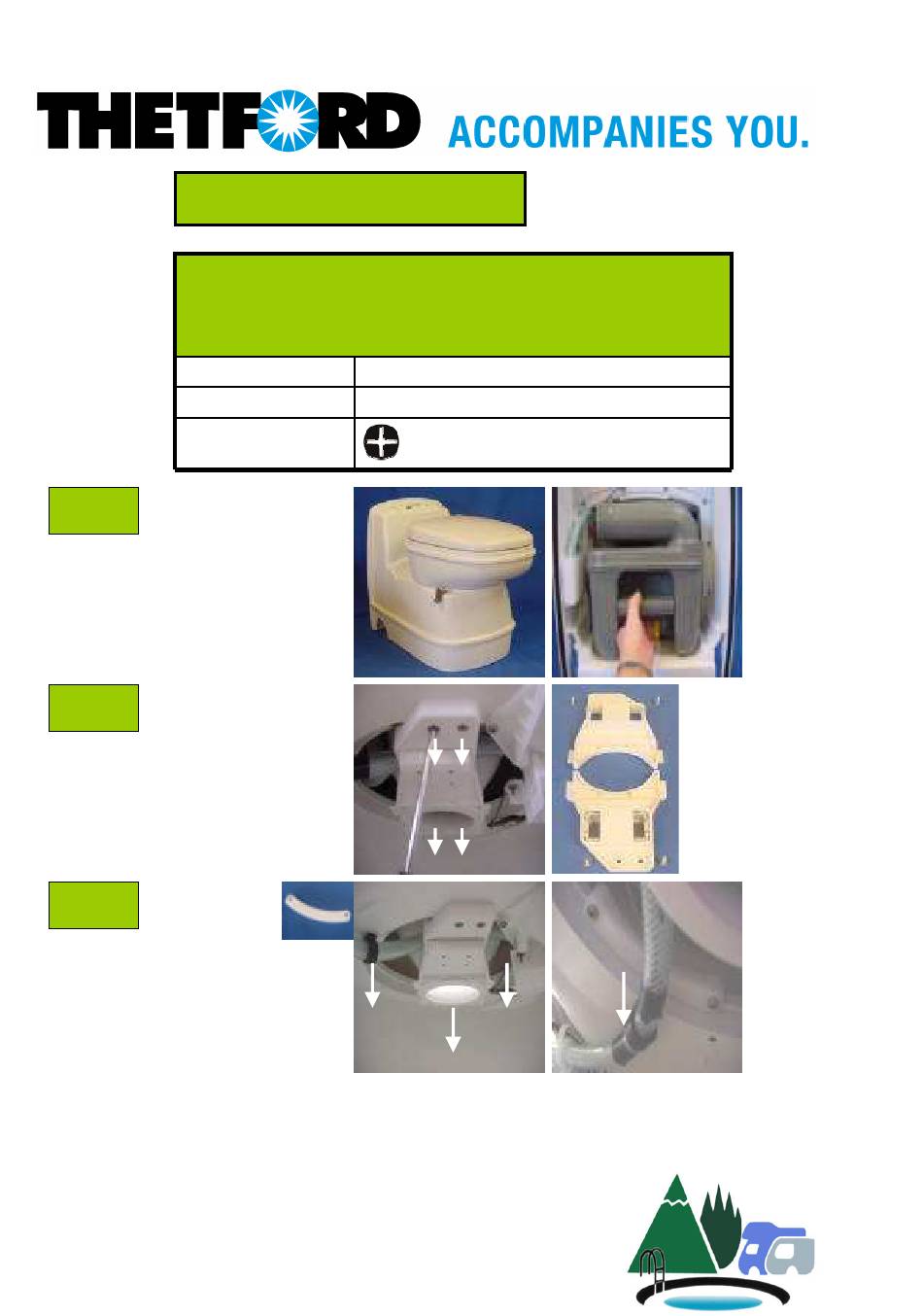

Repair instruction

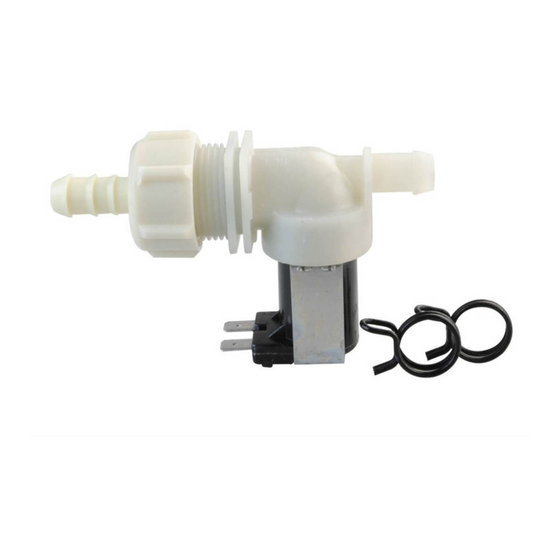

Description: C200S CS Electric Valve
Part number: 23709
Look for Service Centers, Point of Sale addresses and other
information on: www.thetford-europe.com
Version:
Date:
Tools required:
C200S/CS toilet.
A
Pull the waste tank out of
the Cassette toilet by lifting
up the yellow clip.
Inside view, part is
B
assembled with 4 screws
(2 in front, 2 at the back).
Remove the two bowl
retainers.
This bracket
C
is 3x assembled around the
toilet bowl. Each bracket
has two screws.
08/05/2006
V1
08/05/2006
1.
3.
2.
Description: C200S CS
1.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thetford 23709
Summary of Contents for Thetford 23709
- Page 1 Repair instruction Description: C200S CS Electric Valve Part number: 23709 Look for Service Centers, Point of Sale addresses and other information on: www.thetford-europe.com Version: Date: 08/05/2006 Tools required: C200S/CS toilet. Pull the waste tank out of the Cassette toilet by lifting up the yellow clip.
- Page 2 For bracket nr. 3, we advise you to use a mirror as the bracket is very difficult to see. When all the parts are unscrewed, the toilet bowl can be taken off. Looking into the toilet bowl, the electric valve can be found.
- Page 3 Replace the electric valve. Place vacuum breaker back into Opening position the following way. Place complete water tube back into the toilet bowl. place toilet bowl back in position. Replace the three brackets. 08/05/2006 Description: C200S CS Electric Valve...
- Page 4 Replace the two bowl retainers. Note : Bracket with the magnet in it, has to be + magnet placed in the front. Place waste tank back into the toilet. 08/05/2006 Description: C200S CS Electric Valve...
