Thetford 23709 Manual

Sc250/c260 electric valve
Hide thumbs Also See for 23709:

Advertisement

Quick Links

Download this manual

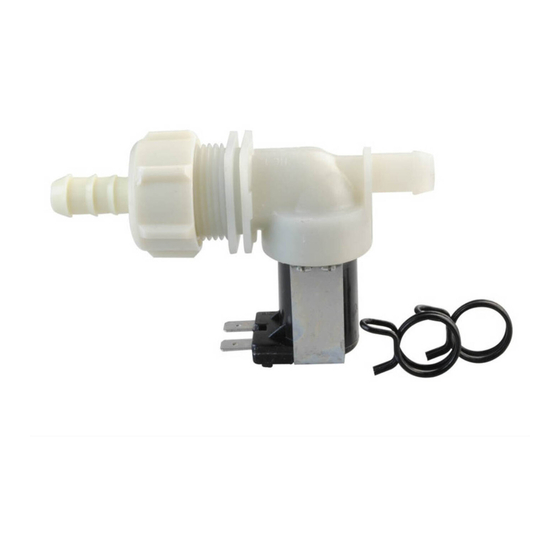

Description: SC250/C260 Electric valve
Part number: 23709
Look for Service Centres, Point of Sale addresses and other
information on: www.thetford-europe.com
Version:
Date:
Tools required:
A
Remove waste holding tank.
Remove bowl retainer bracket closest to
B
the door and take the bowl inner off.
Remove retaining clip and electric valve.
C
Slide hose clamp over water tube and push
D
new electric valve in. Note: arrow should point
in direction of water flow
Repair instruction
3
Aug 2018
42799/0818
