Add and confi gure in Composer Pro
After the touch screen is installed and appears on the home
network, use Composer Pro to add it to the Control4 system and
confi gure it.
Use the Composer Pro System Design and Connections views to
add and confi gure this device.
To add and confi gure a T3 touch screen to a project:
1 Add the T3 Tabletop Touch Screen driver to your project.
2 Identify the device to the project, select the touch screen in
Composer Pro's Connections > Network view, click Identify,
then tap Identify on the touch screen.
3 To confi gure the properties, select the touch screen in the
System Design view, then view and change the properties in
the Properties pane as needed.
Properties include:
• Network Connection—Reports the touch screen's current
network connection type.
• Back Light—Click the arrows or type numbers to set the
light level, then click Set.
Advanced properties include:
• Enable Camera—Allows you to enable or disable the
camera.
Intercom (nested under the touch screen) properties:
• Appearance—Select to hide the touch screen from
appearing in Navigators as an available device.
• Behavior—Select the modes you want this touch screen to
support.
• Audio Control—Select the volume of individual audio
settings.
• Sip Information—Information for integrating the touch
screen into your SIP/VoIP system.
• Custom Buttons—Select to enable and label the two
available custom buttons.
• Alternate Camera—Select to use an external camera for
the video associated with the touch screen, for example, a
security camera mounted to the side of the entrance and
pointing at the door.
Mounting options
Place the charging station on any level surface. Consider the
angle of the touch screen's camera and the position of the people
who will use it while it's on the charging station.
Portable
You can set the touch screen onto the charging station for
recharging and tabletop use, and lift the screen from the
charging station for portable use. For this option, make sure the
data connection is WiFi (see "Power and network installation
options" above).
5
Tabletop only
For security purposes, you can permanently attach the charging
station to the touch screen. For this option, we recommend using
Ethernet or PoE for the data connection.
Use of the screw in the 10" is not recommended without the use
of the mounting bracket (coming soon).
To permanently attach the charging station:
1 Disconnect any cables from the charging station.
2 While holding the charging station upside-down, insert the
mounting screw (included) through the mounting base and
up through the mounting hole in the top.
3 Align the screw with the screw hole in the back of the touch
screen, then tighten to secure it in place.

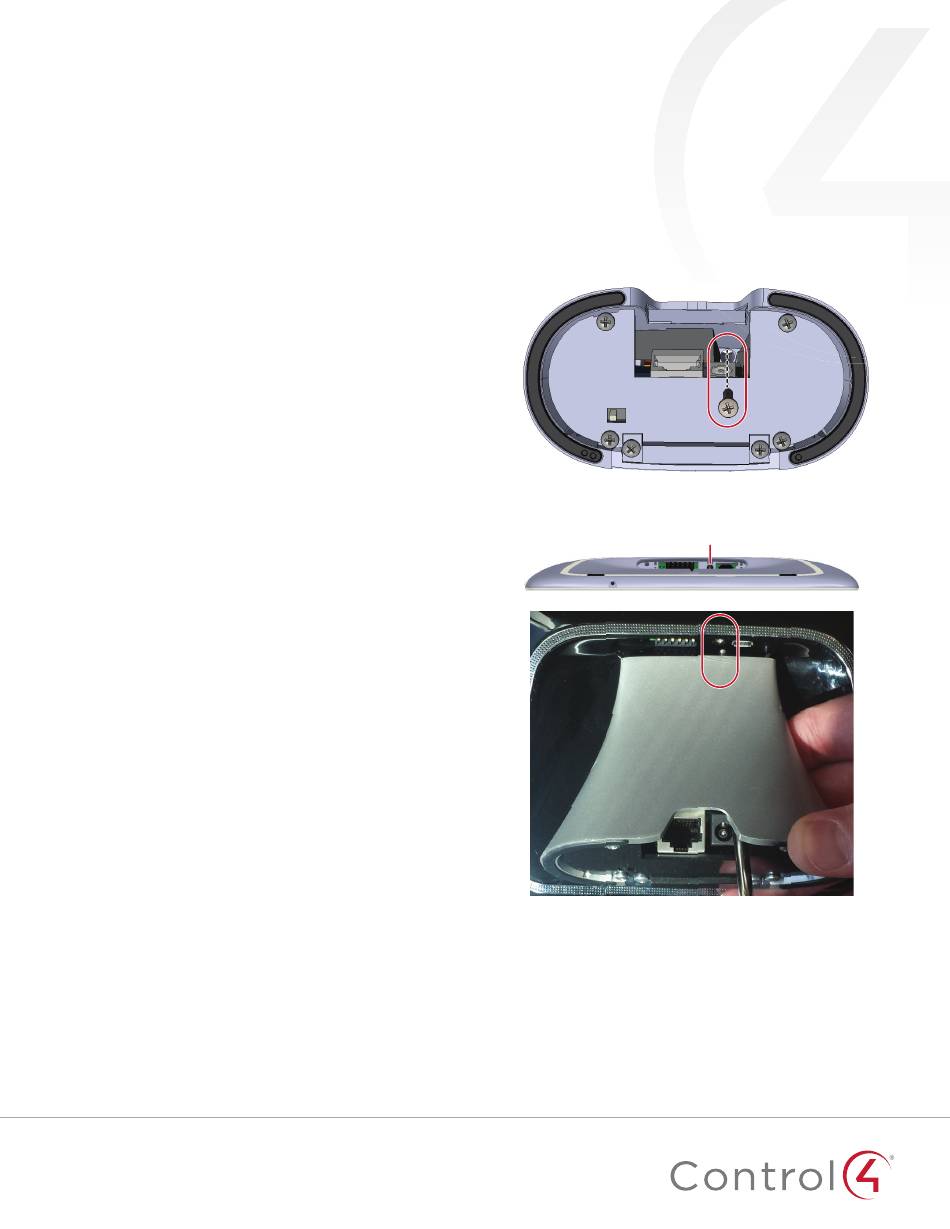

Permanent-mount screw hole
