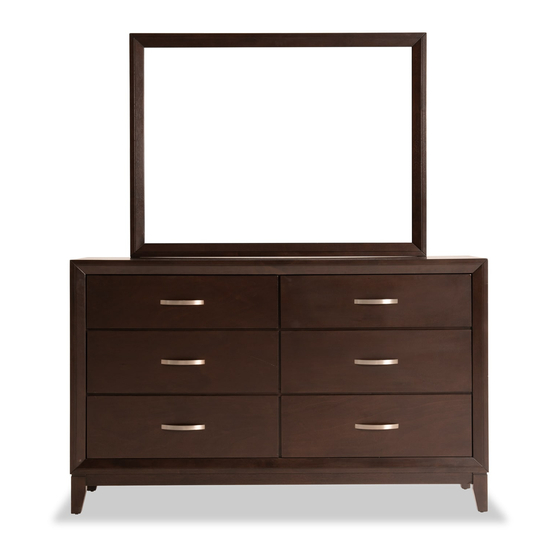

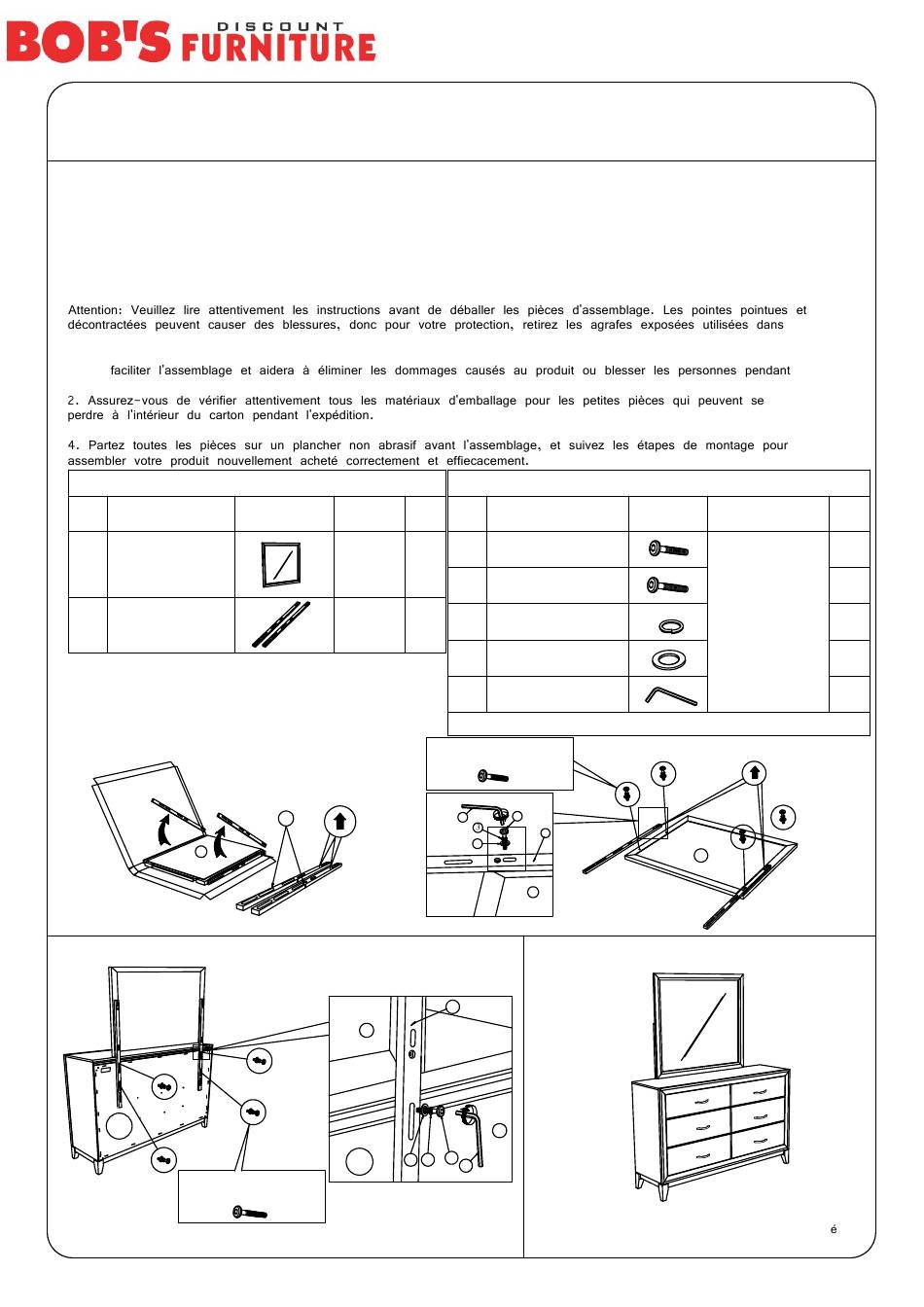

Bob's Discount Furniture Tremont DRESSER/MIRROR 20054472 Assembly Instructions

Assembly Instructions for / Instruction Dassaemblage pour
Caution : Please read instruction thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and willl help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten the screw or bolts.
4. Please put all parts on a none-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and effieciency.
l'emballage.
1. Nous vous recommandons d'assembler ce produit avec l'aide d'une autre personne; cela fera
l'assemblage.
3. Ne pas serrer la vis ou les boulons.
PART LIST
NO NAME
A Mirror / Miroir
Mirror Support
B Slats / Support Du
Miroir
ARROW MARKING - UP
A
C
WARNING !
USE LONG BOLT M6 x 40mm
DRESSER /MIRROR /COMMODE/MIRROIR
QTY
PART CODE
- 1
PTM100
2
MRSLT
WARNING !
USE SHORT BOLT M6 x 35mm
B
**BACK VIEW
A
C
4 3
HARDWARE LIST
NO NAME
1
JCBC M6 x 35mm
2
JCBC M6 x 40mm
M6 Spring Washer
3
4 M6 Flat Washer
Allen Key M4
5
HARDWARE LOCATED INSIDE MIRROR BOX
1
5
B
4
A
B
C
2
5
Page: 1 of 1
PART CODE
PTM100 MRHW
ARROW MARKING - UP
A
Assembly completed /
Assemblage complet
QTY
4
4
8
8
1
