HWDxxPS, HWDF30S
• Observe all governing codes and ordinances during planning/
installation. Contact your local building department for details.
• The drawer must be installed as directed in its installation
instructions.

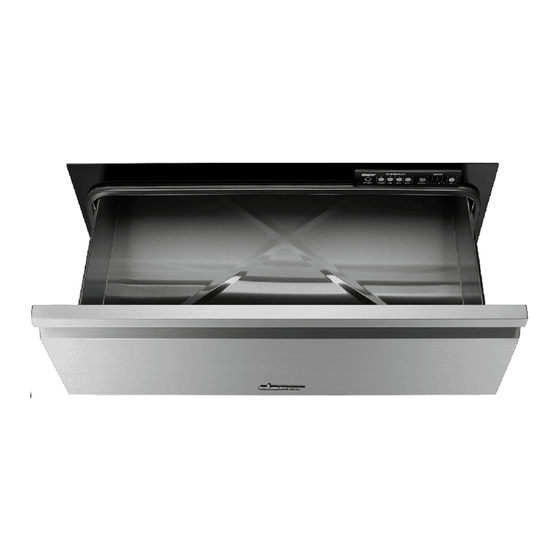

HWDxxPS shown
(height/width typical)
Warming Drawer Overall Dimensions
(A) Drawer Face
Model
Width
HWD24PS
24" (61.0 cm)
HWD27PS
27" (68.6 cm)
HWD30PS
30" (76.2 cm)
HWDF30S
All specifications subject to change without notice.
Heritage
Warming Drawer
WARNING
(B) Chassis Face
(C) Chassis Width
Width
23 5/8" (60.0 cm)
22 1/4" (56.5 cm)
26 5/8" (67.6 cm)
25 1/4" (64.1 cm)
29 5/8" (75.2 cm)
28 1/4" (71.8 cm)
24", 27", 30" Wide
®
Electrical Circuit Required
120Vac, 60 Hz, 15 Amp
grounded, dedicated circuit
www.dacor.com
Doc #: PGH-HWD.01 Revised 14 May 2018 Page 1 of 2
All tolerances: ±¹/₁₆" (±1.6 mm), unless otherwise stated.
PLANNING
Total Connected Load
4.0 Amp. @
120Vac, 60 Hz
Handle Dimensions
GUIDE
Min. Ambient
Operating Temp.
32°F (0°C)
Ph. 800.793.0093
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dacor Heritage HWD PS Series
Summary of Contents for Dacor Heritage HWD PS Series
- Page 1 22 1/4” (56.5 cm) HWD27PS 27” (68.6 cm) 26 5/8” (67.6 cm) 25 1/4” (64.1 cm) HWD30PS 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm) HWDF30S Handle Dimensions All specifications subject to change without notice. www.dacor.com Ph. 800.793.0093...
- Page 2 3/4” (1.9 cm)* 24” (61.0 cm) HWD30PS 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* HWDF30S 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* *Minimum spacing for ventilation and to avoid scraping. All specifications subject to change without notice. www.dacor.com Ph. 800.793.0093...
