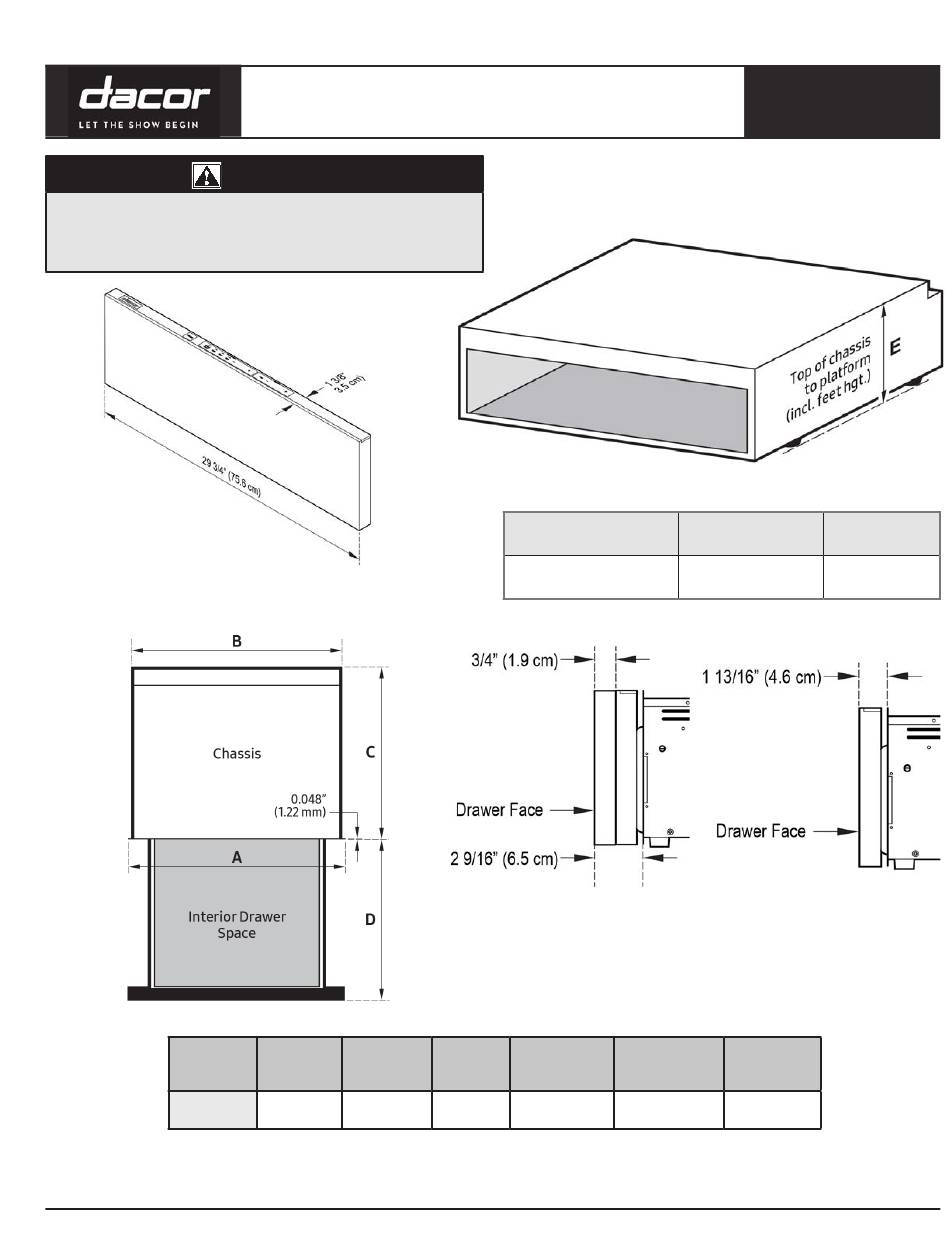

DWR30M977WIP/WIM/WIS
• Observe all governing codes and ordinances during planning/
installation. Contact your local building department for details.
• The drawer must be installed as directed in its installation
instructions.
Front Panel for WIM/WIS Shown
Model No.
DWR30M977
All specifications subject to change without notice.
Modernist
WARNING
(A)
(B)
Chassis Face
Chassis
Width
Width
29 5/8"
27 7/8"
(75.2 cm)
(70.8 cm)
All tolerances: ±¹/₁₆" (±1.6 mm), unless otherwise stated.
®
Electrical Circuit Required
120Vac, 60 Hz, 15 Amp
grounded, dedicated circuit
Front Panel for WIP
(C)
(D)
Chassis
Drawer Depth
Depth
(without panel)
20 15/16"
19 3/4"
(53.1 cm)
(50.2 cm)
www.dacor.com
Doc #:PGM-DWR.01 Revised 29 Jan 2019 Page 1 of 4
PLANNING
GUIDE
Total Connected Load
4.0 Amp. @
120Vac, 60 Hz
Front Panel for WIM/WIS
(D)
(E)
Drawer Depth
Chassis Height
(with 3/4" panel)
(with feet)
20 1/2"
9 3/4"
(52.1 cm)
(24.8 cm)
Min. Ambient
Operating Temp.
32°F (0°C)
Ph. 800.793.0093
Advertisement
Table of Contents
Related Manuals for Dacor Modernist DWR30M977WIP
Summary of Contents for Dacor Modernist DWR30M977WIP
- Page 1 (with 3/4” panel) (with feet) 29 5/8” 27 7/8” 20 15/16” 19 3/4” 20 1/2” 9 3/4” DWR30M977 (75.2 cm) (70.8 cm) (53.1 cm) (50.2 cm) (52.1 cm) (24.8 cm) All specifications subject to change without notice. www.dacor.com Ph. 800.793.0093...
-
Page 2: Warming Drawer
(D1) Min. Vertical Gap Betw. Warm- 1 1/4” (3.2 cm) ing Drawer Cutouts (D2) Min. Vertical Gap Betw. 1 1/2” (3.8 cm) Dacor Wall Oven (E1) Flush to Drawer Front 1 5/64” (2.7 cm) (E2) Flush to Cab’t Frame / Drawer with Panel Flush to 1 53/64”... - Page 3 DWR30M977WIP/WIM/WIS Page 3 of 4 All tolerances: ±¹/₁₆” (±1.6 mm), unless otherwise stated. PLANNING Modernist Warming Drawer ® GUIDE WIP Installation Scenarios All specifications subject to change without notice. www.dacor.com Ph. 800.793.0093...
- Page 4 Page 4 of 4 All tolerances: ±¹/₁₆” (±1.6 mm), unless otherwise stated. PLANNING Modernist Warming Drawer ® GUIDE WIP Panel Mounting Information Bracket Location (rear view) Minimum Clearances (side view) WIM/WIS Installations Scenarios All specifications subject to change without notice. www.dacor.com Ph. 800.793.0093...
