Futon ST BUREAU FOLIO Assembly Instructions

Assembly Instructions

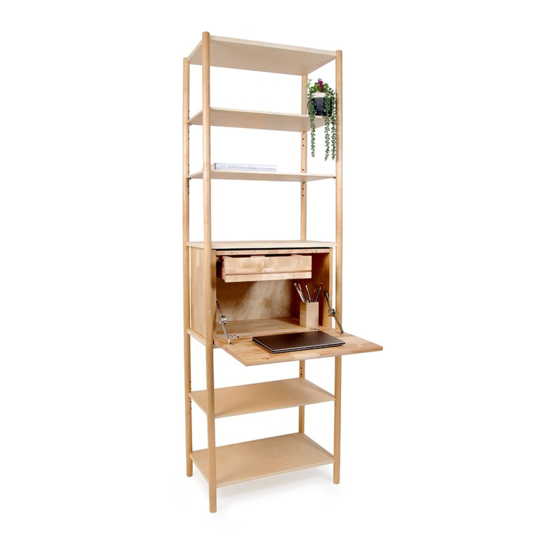

Shelving - Folio Birch Bureau
ROPO no:
PLEASE READ THESE INSTRUCTIONS VERY CAREFULLY BEFORE
YOU BEGIN,TO ENSURE THAT YOUR FUTON COMPANY PRODUCT
WILL GIVE YOU MANY YEARS OF SATISFACTION
Thank you for buying a Futon Company product.
We are constantly striving to improve everything we do, but occasionally mistakes
do occur. In the unlikely event that you find any part missing, please call your
nearest Futon Company store and we will arrange for the despatch of an immediate
replacement. Please keep all packaging until you have checked every part and
assembly of your Futon Company product is complete.
Version number: 1 Product code: ST BUREAU FOLIO
Top x 1
1
Right Side x 1
2
3 Left Side x 1
Back Board x 1
4
5 Bottom x 1
Front x 1
6
Drawer Front x 1
7
Drawer Side A x 1
8
Drawer Side B x 1
9
Drawer Bottom x 1
10
Drawer Back x 1
11
a Dowel x 12
e
Small Spanner x 1
i
3x12mm Screw x 14
m Left Side Door Hinge x 1
p
Door Hinge Bracket x 2
S 4x18mm Screw x 8
Date: 31/07/21
t Small Hinge x 2

Parts Checklist

Please count and check every component very carefully before you begin
3

Fittings Checklist

Please count and check every component very carefully before you begin
c Pressure Plate x 12
b Bolt x 12
g
f
Cam Bolt x 2 Cam x 2
j
4x30mm Screw x 4
n
Anti-slip pad x 4
q
Allen Key x 1
*
Cross head and flat head Screwdriver
also required for assembly
1
4
2
5
6
11
8
10
7
9
d
Nut x 12
h 3x15mm Screw x 12
k Right Side Door Hinge x 1
o
Door Hinge Plate x 2
r
Door hinge Screw x 4
