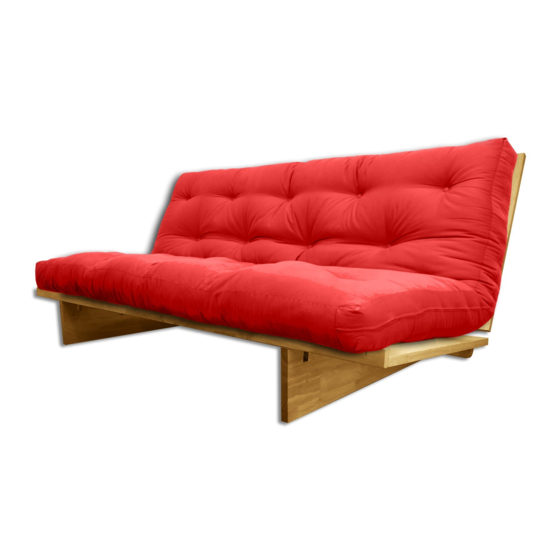

Futon YOKOHAMA Assembly Instructions

READY

YOKOHAMA FRAME

BED POSITION

M6 x 50 mm Allen Bolts - 4 pcs

M6 x 35 mm Allen Bolts - 8 pcs

M8 x 50 mm Allen Bolts - 4 pcs

YOKOHAMA FRAME

ASSEMBLY INSTRUCTIONS

Thank you for choosing our product.

This practical design offers the utmost in versatility.

Before assembling your Yokohama, please read through these

instructions carefully, familiarising yourself with the different parts.

Please note that you will require an Allen Key.

YOKOHAMA FRAME

SOFA POSITION

YOKOHAMA FRAME SHOWN COMPLETED ASSEMBLED

HARDWARE

Assembling by Adult

M6 Allen Key - 1 pc

M8 Allen Key - 1 pc

Page 1 of 5

Allen Key

Table of Contents

Do you have a question about the YOKOHAMA and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS Thank you for choosing our product. This practical design offers the utmost in versatility. Before assembling your Yokohama, please read through these instructions carefully, familiarising yourself with the different parts. Please note that you will require an Allen Key.
Page 2 PARTS LIST PARTS LIST Hardware Front Leg Seat Deck Back Leg 1 BOX 2 Back Deck Storage Rail Back Deck Panel Leg Support NOTE: BOX TWO IS DRAWER PART. Page 2 of 5 YOKOHAMA FRAME...
Page 3 M6 Allen Key M8 Allen Key M8x50 mm Allen Bolt Attach the Front Leg (02) and Leg Support (08) to the Back Leg (04), using M6x55 mm Allen Bolt (E) and Allen Key (D). Page 3 of 5 YOKOHAMA FRAME...
Page 4 M6x35 mm Allen Bolt CONGRATULATIONS! M6 Allen Key Your Yokohama Bed now is ready for use. Fix the Seat Deck (03) to the Front Leg with pre-inserted Nut (02) using 35 mm Allen bolt (B) and Allen Key (C) Page 4 of 5...
Page 5 Lift the Back deck up Until the Seat Deck fully down on the floor Fold Push Yokohama in Sofa Position. Fold Leg Support to lock the Back Deck and Seat Deck as shown. Push the Drawer in. Unfold Unfold Leg Support to unlock the Sofa Position Complete Back Deck and Seat Deck as shown.
