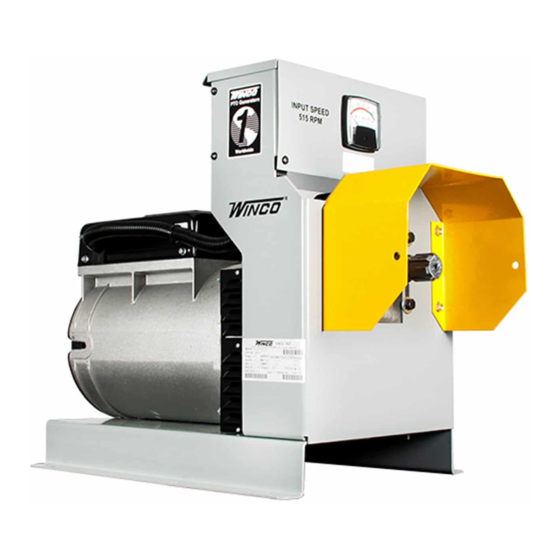

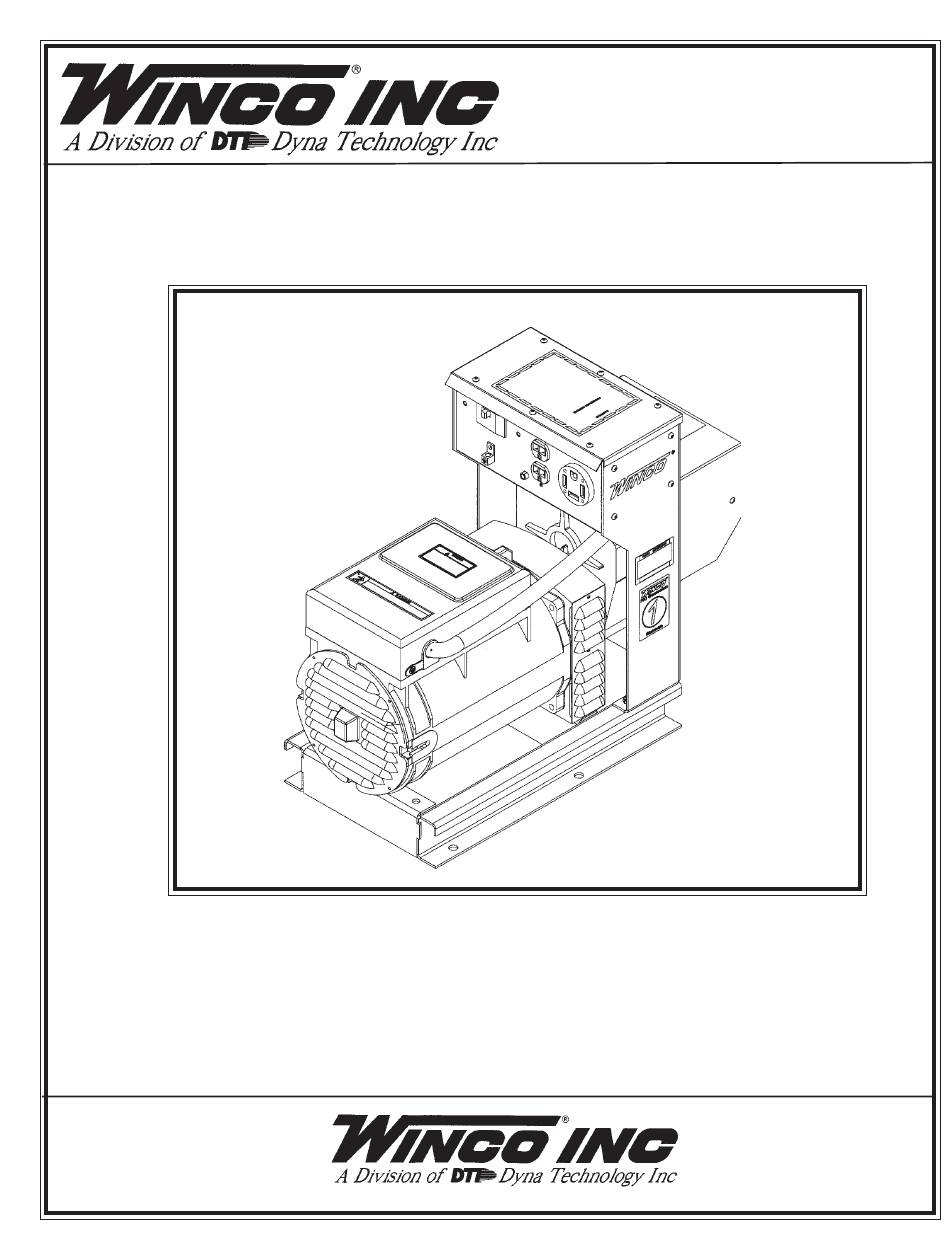

- Page 1 COMPACT PTO GENERATORS OPERATOR INSTRUCTION MANUAL COMPACT SERIES TRACTOR DRIVE GENERATOR W15PTOS/E...
-
Page 2: Table Of Contents
PARTS LIST, PARTS DRAWINGS, AND WIRING DIAGRAM PERTAINING TO YOUR UNIT ARE ENCLOSED WITH THIS MANUAL. This manual covers the latest compact portable tractor driven Power Take Off (PTO) generator model from Winco. This 15,000 watt generator is designed to provide120/240V single phase electrical power for standby and utility service when commercial power is interrupted, inaccessible or impractical. -
Page 3: Safety Information
DEADLY EXHAUST GAS - Exhaust fumes from any SAFETY INFORMATION engine contain carbon monoxide, an invisible, odorless and deadly gas that must be mixed with fresh air. This generator set has been designed and manufactured to Operate only in well ventilated areas. allow safe, reliable performance. -
Page 4: Specifications
DESCRIPTION UNPACKING The WINCO rotating field power take-off generators are CAUTION: Equipment Damage designed primarily for hobby/small farm use as a standby DO NOT invert generator during unpacking. The Gearcase electrical power supply, utilizing the power take-off of a tractor contains oil which will leak out if inverted during unpacking. -
Page 5: Trailer Mounting
Install shims if necessary to even out the bed under the mounting pads, then bolt the generator firmly in place. C. The foundation surface should be flat. WINCO THREE POINT HITCH D. Space is required around the generator for mounting switching devices, making connections, and for servicing. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS DANGER: P ERSONAL INJURY CAUTION: IF THE GENERATOR IS TO BE USED AS A STANDBY Only qualified electricians should install electrical wiring. POWER SOURCE, A MANUAL TRANSFER SWITCH Wiring must conform to all applicable national, state, and MUST BE INSTALLED TO SEPARATE THE GENERATOR local codes. -
Page 7: Load Disconnect Plug Installation
PTO generator. If you need additional plugs for multiple sites you can order additional 1. Visually inspect the generator. Check for: plugs from your Winco dealer, the part number is “300137”. a Correct mounting WARNING: Personal Injury b. -
Page 8: Generator Starting Procedure
3. With engine idling, engage the power take-off drive. age to flicker. Drive shafts shipped new from Winco are al- ways synchronized and tethered so they can not be taken 4. -
Page 9: Storage & Maintenance Requirements
If the generator is mounted on an off-highway that wiring connections are not loose at the generator end, trailer, such as the Winco trailer, it should be circuit breakers, and receptacles. stored in a garage, barn or machine shed in a dry and clean location. -
Page 10: Service Diagnosis
SERVICE DIAGNOSIS REMEDY POSSIBLE CAUSE LOW OUTPUT VOLTAGE Low Speed Undersized/overloaded. Check for overload on the tractor or undersized. Defective governor. Check tractor governor. Tight or defective throttle levers and joints. Low power - worn engine. Worn or defective tractor engine (see engine manufacturers check list.) High line loss. -
Page 11: Receptacle Panel Assembly Illustration/Wiring Diagram
RECEPTACLE PANEL PART # DESCRIPTION 300079-4 Control Box Sheet Metal 91370-000 Voltmeter 0 - 300 VAC 300136 Receptacle, NEMA 14-60R 50766-000 Receptacle, NEMA 5-20R 91286-001 Circuit Breaker 20 AMP - 120 VAC 63708-000 Ground Lug 57030-005 Circuit Breaker 60 AMP - 240 VAC 300137 Plug. -
Page 12: Complete Unit Assembly Illustration
Oil Fill Hole Decal Gear Case Assy Z2568 PTO Danger Decal S20F-230/A M5 91369-003 515 RPM Decal 300077-6 Base Assembly 53113-001 WINCO Decal 99841-002 Gear Case Support 62487-003 2.5’ Loom 5/8” 300160-6 Receptacle Box Assembly NI 300323-112 Capacitor, 31.5 mf, 425 V... -
Page 13: Two Wheel Transport
TWO WHEEL TRANSPORT DESCRIPTION PART NO. SUPPORT, TONGUE (QTY. 2) 300081 HITCH, TONGUE (QTY. 2) 300082 TONGUE 300083 AXLE (QTY. 2) 300085 SUPPORT, AXLE 300164 SUPPORT, PTO SHAFT 300161-1 SUPPORT, PTO SHAFT 300161-2 TIRE/RIM, PNEUMATIC (QTY. 2) 43657-000 Page 11 60706-180 0310-00... - Page 14 PTO GENERATOR 12 MONTH LIMITED WARRANTY WINCO, Inc., warrants for twelve months from date of shipment, that it will repair or replace at its option, for the original user, the whole or any part of the product found upon examination, by WINCO at its factory at 225 South Cordova Avenue, Le Center, Minnesota, or by any factory- authorized service station, to be defective in material or workmanship under normal standby use.
- Page 15 60706-180 0310-00...
-
Page 16: Winco Limited Warranty
225 SOUTH CORDOVA AVE LE CENTER MN 56057 1-507-357-6831 60706-180 0310-00...
