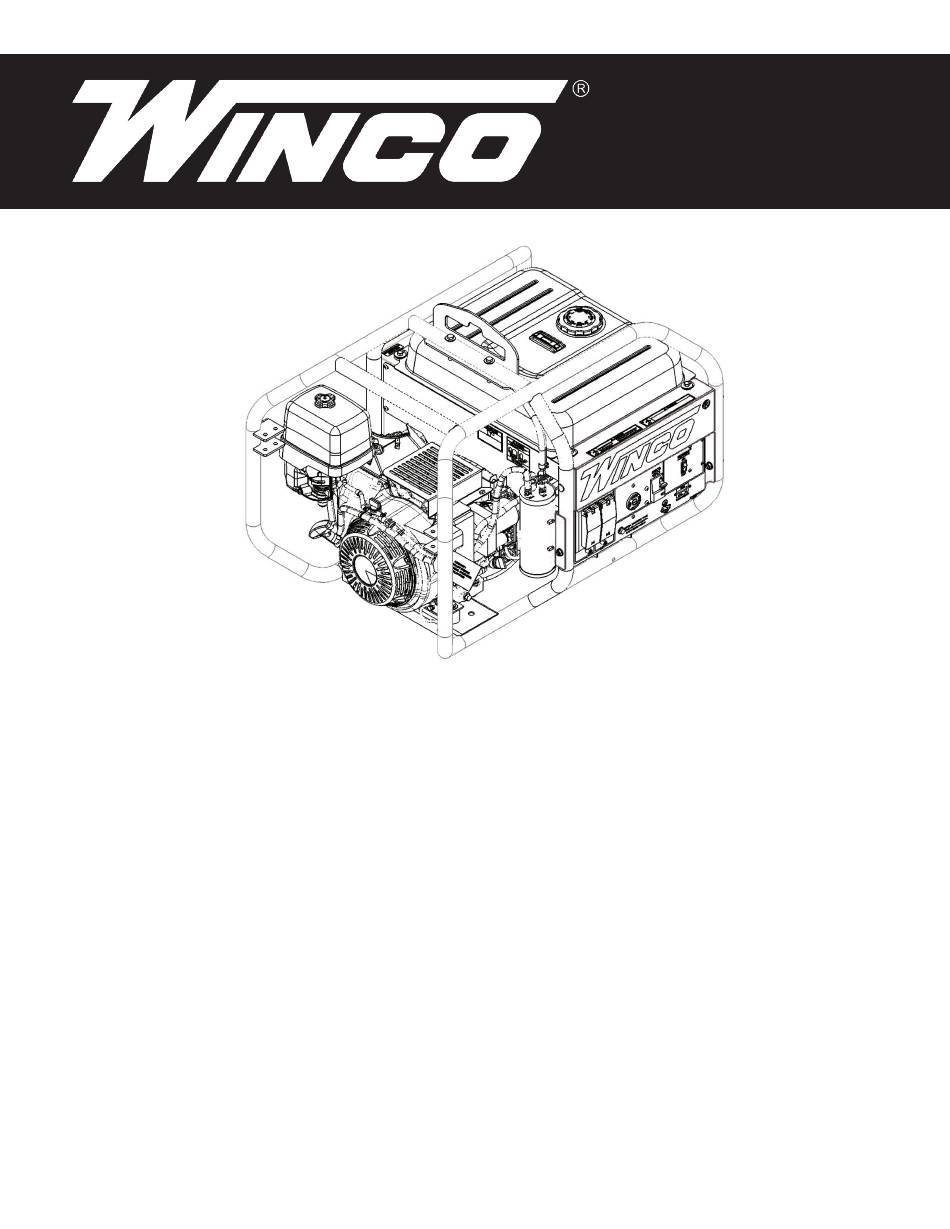

WC6000HE/F
GENERATOR
INSTALLATION AND
OPERATORS
MANUAL
WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 507-357-6821
SERVICE DEPT. 507-357-6831
www.wincogen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC6000HE/F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winco WC6000HE/F

Summary of Contents for Winco WC6000HE/F

  • Page 1 WC6000HE/F GENERATOR INSTALLATION AND OPERATORS MANUAL WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 507-357-6821 SERVICE DEPT. 507-357-6831 www.wincogen.com...

  • Page 2: Table Of Contents

    STARTING ELECTRIC MOTORS PREPARING THE UNIT COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If UNPACKING you should ever need to contact us concerning this unit, it will help us LUBRICATION to respond to your needs faster.

  • Page 3: Specifications

    SPECIFICATIONS GENERATOR Model WC6000HE/F Surge Watts 6,000 Continuous Watts 5,500 Volts 120/240 Amps 45.8/22.9 Generator Manufacturer Mecc Alte Spa Generator Model Number ES16F-160/A Part Number 16346-027 Rotor Resistance 6.57 Ohms Stator Resistance 0.124 Ohms Regulation AVR ASR ENGINE Engine Manufacturer...

  • Page 4: Safety

    SAFETY 4. CLEANLINESS - IMPORTANT SAFETY INSTRUCTIONS Keep the generator and surrounding area clean. SAVE THESE INSTRUCTIONS A. Remove all grease, ice, snow or materials that create slippery conditions around the unit. This manual contains important information that should be understood B.

  • Page 5: Introduction

    GENERATOR CONNECTIONS This engine generator set has been designed primarily for portable WC6000HE/F: 120 Volt and 240 Volt receptacles are provided for heavy duty commercial use. Both 120 volt and 240 volt receptacles connection to various loads. The diagram below represents this 5,500 are provided in the control panel to plug in your loads (lights, portable watt (rated output) generator.

  • Page 6: Preparing The Unit

    1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2.

  • Page 7: Automatic Voltage Regulator

    The use of fuel additives, such as Sta-Bil, or an equivalent will minimize A 12 Volt battery, BCI group 24 rated at 300CCA or larger is the formation of fuel gum deposits. If a unit has been out of operation recommended for this electric start engine-generator set.

  • Page 8: Conserv-R® Idle Control

    CONSERV-R® IDLE CONTROL The automatic Conserv-R ® Idle Control is a gas saving, solid state system, designed to reduce engine speed whenever the electrical load is removed from the generator. Without a slow down control, the engine would run at full speed at all times, regardless of the electrical load. With the Conserv-R ®...

  • Page 9: Initial Start Up

    INITIAL START UP ELECTRIC STARTING If the engine is cold and stiff or if the battery is not fully charged, The throttle control on these generators is preset and locked to operate starting can be made easier by slowly hand cranking the engine at 3600 RPM (nominal) with no load speed set at 3690 RPM.

  • Page 10: Connecting The Loads

    STOPPING AND STORING LOAD vs. OUTPUT 1. Move the key to the “OFF” position. Generator Speed Frequency Voltage 2. Turn off the fuel supply valve. Load (RPM) (Hz) 3. Before extended storage (over 30 days) certain precautions None 3690 61.5 120V must be taken to ensure the fuel doesn’t deteriorate and clog the fuel system.

  • Page 11: Applying The Loads

    CAUTION: EQUIPMENT DAMAGE Failure to properly limit and balance the load applied to the generator Your WINCO portable generator ships with a bonded neutral. You can will cause the generator to produce low voltage and may damage safely use this generator without external grounding as long as all the engine generator set.

  • Page 12: Engine Care

    ENGINE CARE C. Replace the oil drain bolt making sure the sealing washer is in place. D. With the engine in a level position, fill with new oil. Refer to the MAINTENANCE SCHEDULE table on page 5 for the proper grade of oil. NOTE: This engine requires 34 ounces (1.2 quarts) of oil if it is If major engine service or repair is required, contact an authorized completely drained.

  • Page 13: Spark Plug

    GENERATOR CARE SPARK PLUG Replace annually or every 300 hours of operation. Always replace with Proper care and maintenance of the generator is necessary to ensure a the same spark plug that came in the engine and check gap before long trouble free life.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Voltage too low AVR adjustment Defective stator Defective rotor (field) Defective AVR Circuit breaker trips Defective load...

  • Page 15: Control Panel Wiring Diagram

    CONTROL PANEL WIRING DIAGRAM OPM-120 REV C...

  • Page 16: 36 Month Limited Warranty

    WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE. WINCO is liable for the repair or replacement of the product only and is not liable for incidental or consequential damages as permitted by your state. This warranty gives you specific legal rights which may vary from state to state.
