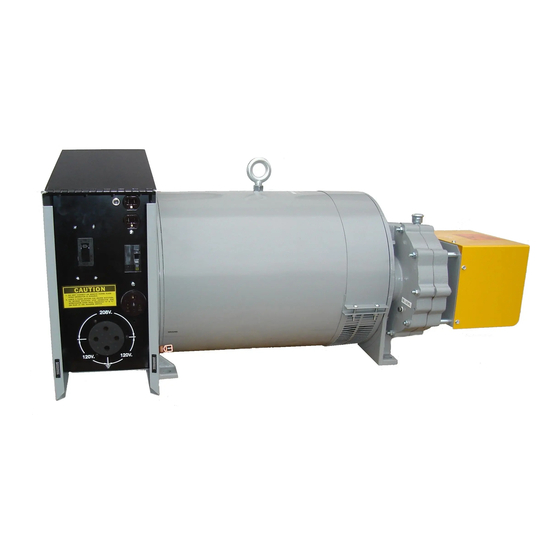

- Page 1 Tractor Drive PTO Generators 35PTOC-3 OWNERS MANUAL 40PTOC-4 INSTALLATION AND OPERATION INSTRUCTIONS 45PTOC-17 50PTOC-3 75FPTOC-4 75FPTOC-17 75FPTOC-17 SAFETY FIRST READ THIS MANUAL BEFORE OPERATING YOUR GENERATOR. 60706-198...
-
Page 2: Table Of Contents
To get the best performance from your new generator set, it is important that you carefully read and follow the No other WINCO generator has the same serial number as operating instructions in this manual. yours. It is important that you record the number and other... - Page 3 DEADLY EXHAUST GAS - Exhaust fumes from any engine SAFETY INFORMATION contain carbon monoxide, an invisible, odorless and deadly gas that must be mixed with fresh air. This generator set has been designed and manufactured to allow safe, reliable performance. Poor maintenance, Operate only in well ventilated areas.
-
Page 4: Preparing The Unit
If you require different inserts or contacts for local code, b. Load disconnect plug (disassembled, in bag) WINCO has a variety of different inserts and contacts avail- able. Contact the factory at 507-357-6831 for pricing. 5. Remove the four bolts which hold down the generator feet to the pallet. -
Page 5: Installation
“TRAILER MOUNTING” if generator will be used as a portable CONTACTS power source (see Figure 3). When planning a foundation All 4 contact consider the following points: WIRE INSERTS must be used. Figure 2 NOT USED IN ALL APPLICATIONS SINGLE PHASE 4 WIRE CONNECTION A. - Page 6 WARNING: Personal Injury & Equipment Damage D. The generator mounting area of the trailer bed should be flat. All four generator mounting pads must rest firmly on the TRAILER MAY TIP OVER AND CAUSE INJURIES IF trailer bed. Install shims if necessary to even out the bed WHEELS ARE NOT SPACED FAR ENOUGH APART.
-
Page 7: Electrical Connections
NOTE: ELECTRICAL CONNECTIONS Electric motors require much more current to start than to run. Commonly, the current rating given on a motor nameplate is CAUTION: the full load (running) current required by the motor, not its Only qualified electricians should install electrical wiring. starting current, which is a lot higher. -
Page 8: Starting Procedure
5. Make sure no binding exists in generator or gear box. If 2. Check gear case oil level. (See Figure 6.) Case should be binding is found, locate the cause and correct it before pro- filled with oil to plug marked “OIL LEVEL.” Fill or remove oil as ceeding. -
Page 9: Maintenance
STORAGE & MAINTENANCE If the generator is mounted on an off-highway trailer, such as the Winco trailer, it should be stored in a garage, barn or machine shed in a dry and clean location. The generator should be covered with a tarpaulin to prevent the entrance of dust, chaff, and/or moisture. -
Page 10: Storage
TROUBLE SHOOTING TABLE SYMPTOM CAUSE(S) CORRECTIVE ACTION No output 1. Circuit breaker open. Reset circuit breakers, replace if defective. voltage. 2. Defective voltmeter. Check output with another meter, replace meter if defective. 3. Short circuit in the load. Disconnect the load. Check voltage at receptacle cord set. Check motors, appliances and load leads for short circuit. - Page 11 SYMPTOM CAUSE(S) CORRECTIVE ACTION High voltage. 1. Engine speed too fast. Check engine speed for correct input RPM. 2. Connection of current Have qualified service technician recheck the connections. transformer secondary leads not correct. Output voltage 1. Tumbling bar (coupling shaft) Reduce tumbling bar misalignment to less than 15 degrees.
-
Page 12: Month Warranty
36 MONTH LIMITED WARRANTY WINCO, Inc., warrants for thirty-six months from date of shipment, that it will repair or replace at its option, for the original user, the whole or any part of the product found upon examination, by WINCO...
