MainBoard

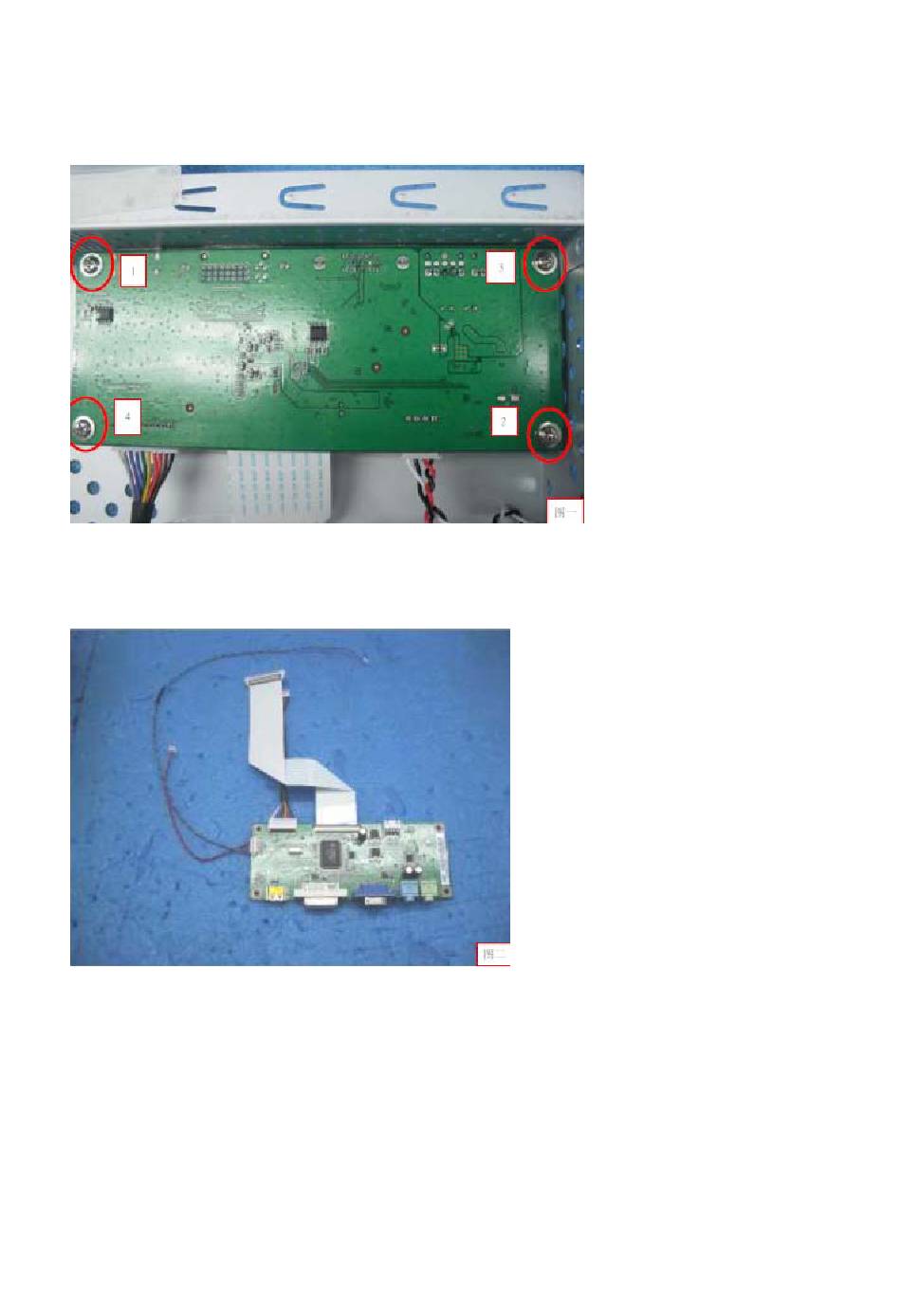

1. Remove 4 screws that fixing on the MainBoard.
3. Disconnect the LVDS and Keypad Cable from MainBoard and remove the
MainBoard.
VX2739wm-1
CONFIDENTIAL – DO NOT COPY
