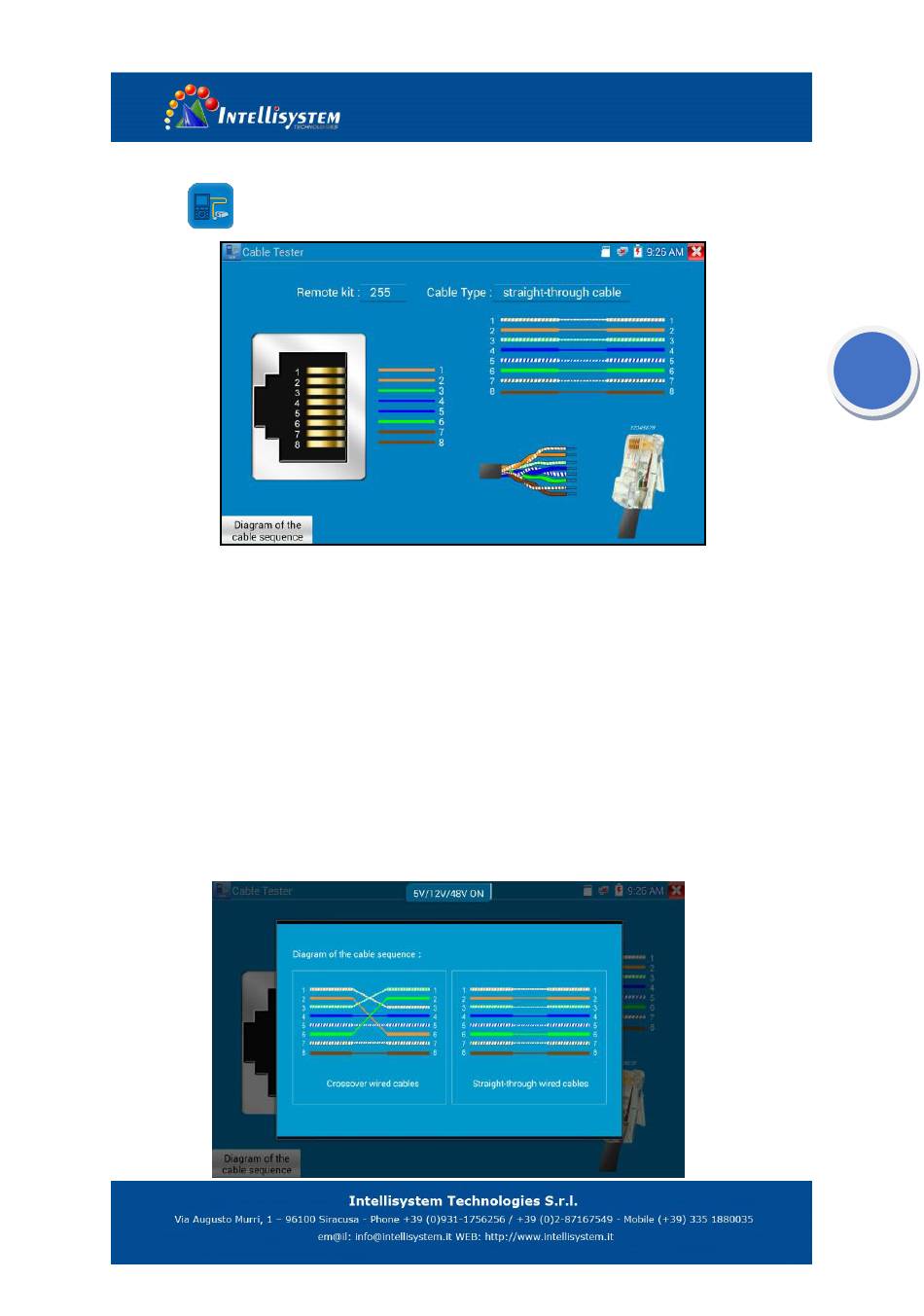

3.3.20 Cable Test
Click icon
to enter
74
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the
connecting status, cable type and the sequence of wires as well as the serial number of the cable tester
kit will be displayed.
The number of the cable tester is 255.
If need several different number other types cable testers, should pay the additional cost.
Cable test
Tap "cable test sketch map", pop up Straight-through cable and crossover cable skectch, It is for line
sequence reference ,when the crystal on the first pressure in the twisted-pair
