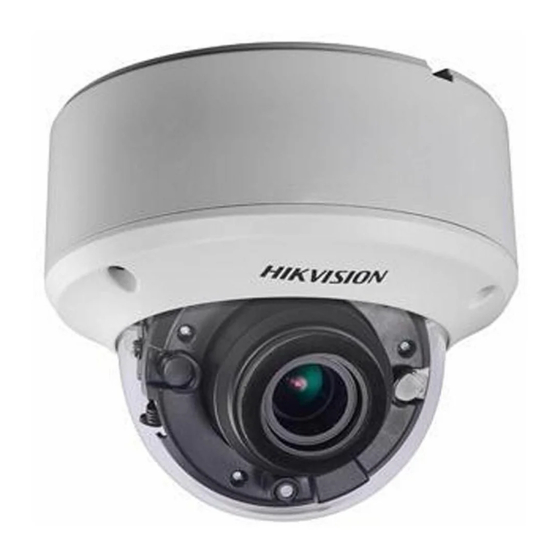

TURBO HD
H5T Series Turret & Dome
Camera
User Manual
UD05382B
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
Type III Camera
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
Model
DS-2CE56H5T-IT1(E)
DS-2CE56H5T-IT3(E)
DS-2CE56H5T-ITM(E)
DS-2CE56H5T-VPIT(E)
0100001070419
Advertisement
Table of Contents
Related Manuals for HIKVISION H5T Series
Summary of Contents for HIKVISION H5T Series
- Page 1 TURBO HD H5T Series Turret & Dome Camera User Manual UD05382B User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below:...
- Page 2 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
-
Page 5: Installation
1.2.3 Overview of Type III Camera Power Cord 12 VDC Mounting Video Cable TVI Base Tilt Adjusting IR LED Screw Photoresistor Black Liner Bubble Safty Rope Figure 1-3 Overview of Type III Camera 2 Installation Before you start: Make sure that the device in the package is in good ... - Page 6 Figure 2-2 Drill Template Note: Drill the cable hole, when adopting the ceiling outlet to route the cable 5. Attach the mounting base to the ceiling/wall, and secure them with supplied screws. Figure 2-3 Attach the Mounting Base to the Ceiling Note: The supplied screw package contains self-tapping ...
- Page 7 2.1.2 Mounting with Inclined Base Steps: 1. Paste the drill template (supplied) to the place where you want to install the camera. 2. Drill screw holes, and the cable hole on the ceiling/wall according to the supplied drill template. Figure 2-6 The Drill Template 3.
- Page 8 1. Disassemble the turret camera by rotating the camera to align the notch to the clip plate, as shown in the Figure 2-10. Clip Plate Notch Figure 2-10 Disassemble the Camera 2. Pry the mounting base to remove the mounting base from the camera body.
- Page 9 Pan Position [0° to 360°] Tilt Position Rotation Position [0°to75°] [0° to 360°] Figure 2-14 3-axis Adjustment 1). Hold the camera body and rotate the enclosure to adjust the pan position [0° to 360°]. 2). Move the camera body up and down to adjust the tilt position [0°...
- Page 10 Steps: Drill four screw holes in the wall according to the holes of the bracket. 2. Install the bracket to the wall by aligning the four screw holes of the bracket with expansion screws on the wall. 3. Secure the bracket with four hex nuts and washers. Type I Camera Figure 2-17 Install the Bracket 4.
-
Page 11: Adjusting Screw
Figure 2-20 Remove the Bubble 4. Fix the mounting base on the ceiling with supplied screws. Figure 2-21 Fix the Mounting Base 5. Route the cables through the cable hole, or the side opening. 6. Connect the corresponding cables, such as power cord, and network cable. -
Page 12: Menu Description
3 Menu Description Purpose: Call the menu by clicking the button on the PTZ Control interface, or call preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection 2. - Page 13 Figure 3-3 OUTPUT MODE RESOLUTION Resolution refers to the number of the pixels contained in an image. You can set the resolution as 5 megapixels, 4 megapixels or 1080p. The higher the value, the finer the image is. FRAME RATE Frame rate refers to the number of image output in 1 second.
-
Page 14: Anti-Flicker
BLC (Backlight Compensation) BLC (Backlight Compensation) compensates light for the front object to make it clear, but this may cause the over-exposure of the background, where the light is strong. When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8. -
Page 15: Video Settings
You can turn on/off the INFRARED and set the value of SMART IR in this menu. Figure 3-6 DAY/NIGHT INFRARED You can turn on/off the IR LED to meet the requirements of different circumstances. SMART IR The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. -
Page 16: Save And Exit
3.7 RESET Reset all the settings to the default. 3.8 SAVE & EXIT Move the cursor to SAVE & EXIT and click Iris+ to save the setting and exit the menu.
