ALLEN&HEATH
Service manual

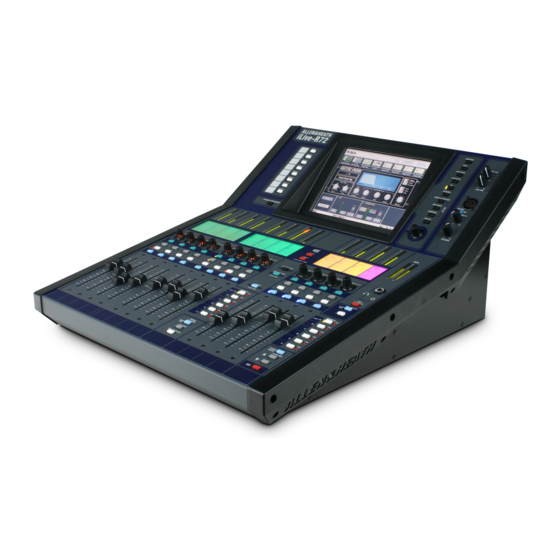

iLive –R72
Copyright © 2011 Allen & Heath Limited. All rights reserved
Allen & Heath Limited
Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
ALLEN&HEATH
iLive-R72 service manual
AP7893 _3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iLive –R72 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ALLEN & HEATH iLive –R72

  • Page 1 ALLEN&HEATH Service manual iLive –R72 Copyright © 2011 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 2: Limited One Year Warranty

    Limited One Year Warranty This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide be- fore operating.
  • Page 3 Servicing Precautions – General Notes Service personnel: Service work should be carried out by technically qualified service personnel only. Mains power is dangerous and can kill. Do not attempt to work on a line- ar or switched mode power supply if you are not suitably qualified to do so. Do not attempt to repair surface mount circuit assemblies unless you are suitably qualified and have the necessary facilities to do so.
  • Page 4: Operation

    Testing the unit: Before operating the equipment, read and adhere to the Important Safety In- structions printed in the user guide. Test that the service work has been suc- cessfully carried out. Shipping the unit: Use adequate packing such as the original packaging or purpose designed flight case if you need to ship the unit.
  • Page 5 Separate front panel from base panel. 001 Remove rear screws 002 Remove plastic trims and side screws 003 Remove front screws ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 6 004 Remove side panels and put R72 on its side 005 Cut cable ties and remove fader DC leads ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 7 006 Disconnect large harness from 004-022 West PCB 007 Disconnect harnesses 008 Open R72 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 8 009 Disconnect harness 010 Disconnect harness 011 Disconnect harness ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 9 012 Disconnect LCD harness 013 Disconnect SBC harness 014 Disconnect LVDS cable ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 10 015 Disconnect talkback PCB 016 Top and base are separate ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 11: Parts Identification

    PARTS IDENTIFICATION How to order parts Parts must be ordered from our distributor in your territory. A list of international distributors can be viewed http://www.allen-heath.com/UK/distributors.asp UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp EXTERIOR PARTS...
  • Page 12 Switch caps and guides AJ7532 PUSH BTN SKPMA GREY AJ7533 PUSH BTN SKPMA WHITE AJ7534 PUSH BTN SKPMA RED AJ7535 PUSH BTN SKPMA BLACK AJ7536 PUSH BTN SKPMA GREEN AJ7537 PUSH BTN SKPMA BLUE AJ 7398 push button guide with LED window AJ 7416 push button guide NO LED window Lamp socket AL8104...
  • Page 13: Interior Parts

    INTERIOR PARTS Bank L 004-018 Bank M 004-019 Bank R 004-020 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 14 Backlight WEST TFT WEST & BACKLIGHT 004-022 TFT EAST 004-023 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 15 Talkback 004-024 Fader PSU / Distribution 004-025 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 16 Issue 1, 2 ASSIGN AS T80 OR Issue 3 → ASSIGN AS T80 OR T112 OR R72 iLive controller PCB 003-791 Fader slave 003-323 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 17 PFL meter 003-543 Fader master 003-796 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 18 Headphone 003-932 Channel PCB 004-021 This part not used Channel PCB 004-021 on R72 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
  • Page 19 PSU 004-026 ALLEN&HEATH iLive-R72 service manual AP7893 _3...
