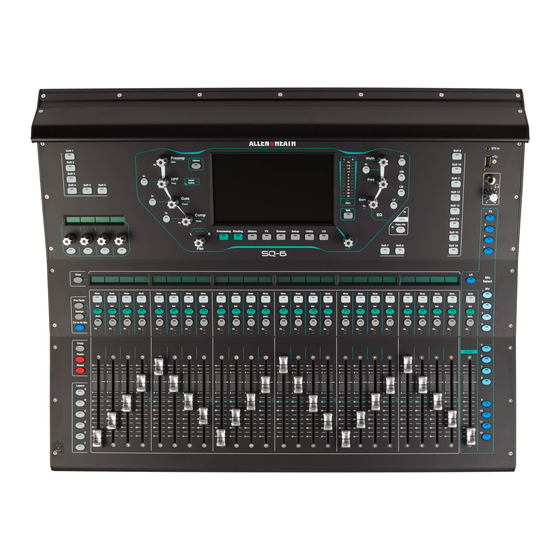

ALLEN & HEATH SQ-6 Manual

Midi protocol, firmware v1.4.0 or later
Hide thumbs Also See for SQ-6:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual

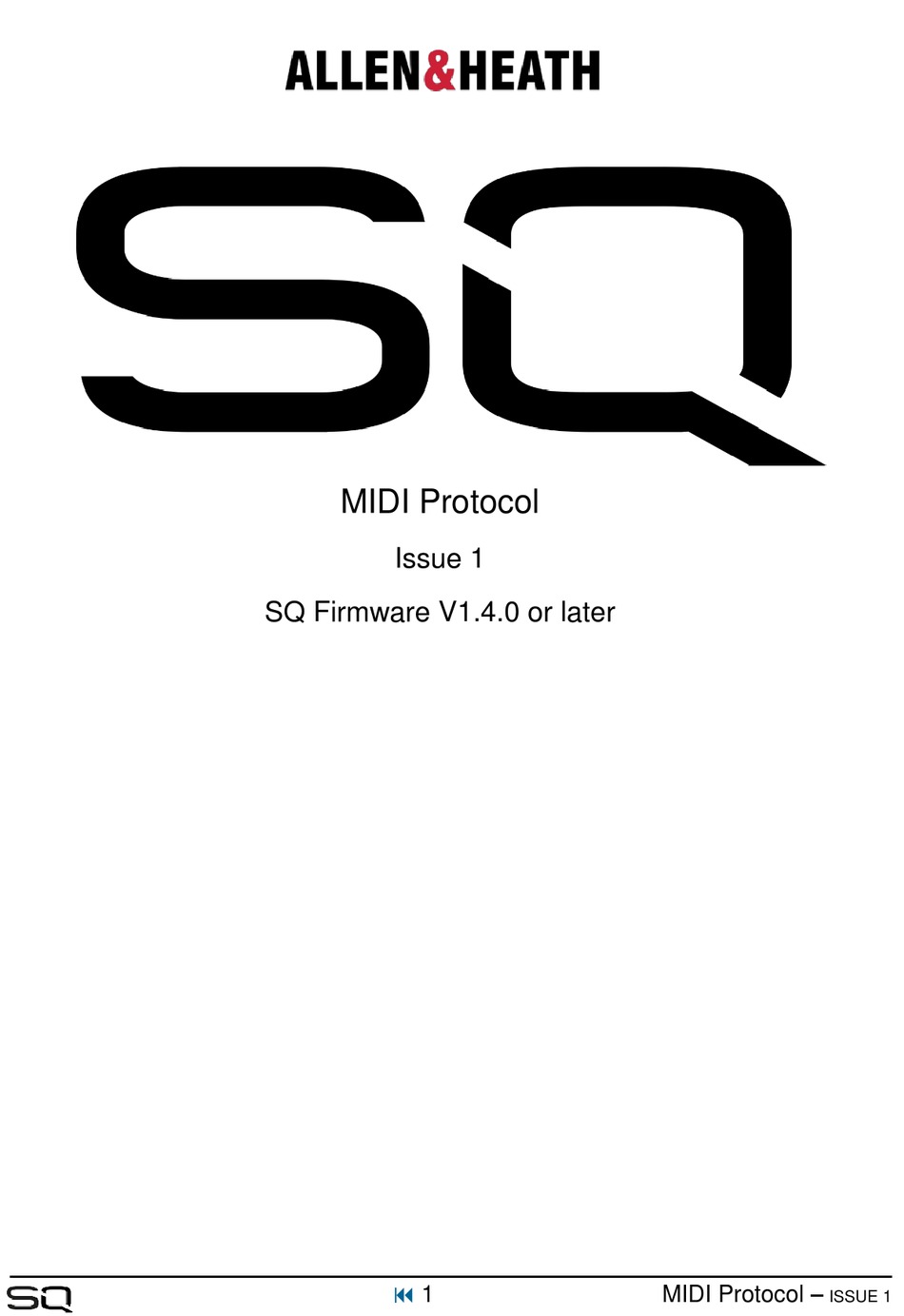

MIDI Protocol
Issue 1
SQ Firmware V1.4.0 or later
MIDI Protocol –
1
ISSUE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQ-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALLEN & HEATH SQ-6

Summary of Contents for ALLEN & HEATH SQ-6

  • Page 1 MIDI Protocol Issue 1 SQ Firmware V1.4.0 or later MIDI Protocol –  ISSUE 1...

  • Page 2: Table Of Contents

    Contents 1. Introduction and setup ....................3 1.1 Connection ......................... 3 1.2 MIDI channels ........................4 1.3 Types of message ......................5 1.4 DAW Control Driver ......................6 2. MIDI Faders and Soft Controls................... 7 2.1 MIDI faders ......................... 7 2.2 Soft Keys and Footswitch ....................

  • Page 3: Introduction And Setup

    1. Introduction and setup MIDI (Musical Instrument Digital Interface) is a standardised communication protocol that enables digital devices to communicate and allows one piece of equipment to control another. The SQ sends and receives MIDI over USB (via the USB-B port) as well as over ethernet (using MIDI over TCP/IP via the network port).

  • Page 4: Midi Channels

    1.2 MIDI channels There are 16 MIDI channels available, and the SQ makes use of 2 of these, one for mixer control and one for use with the DAW Control Driver. Press the ‘Utility’ screen key, then touch the ‘General’ tab followed by the ‘MIDI’...

  • Page 5: Types Of Message

    1.3 Types of message MIDI messages can be presented in different ways in various hardware and software, including plain text, binary, decimal and hexadecimal. As an example, here are four representations of the same message: Plain text MIDI Channel 1, C-1, Note on Binary 1001 0000 0000 0000 0111 1111 Decimal 144 0 127 Hexadecimal 0x90 0x00 0x7F...

  • Page 6: Daw Control Driver

    Control Driver DAW Control MIDI 1 to 4 PC / mac SQ-5 / SQ-6 / SQ-7 In addition to the translations, a ‘MIDI Thru’ option is provided which allows MIDI messages to pass through unaffected. This is the easiest way to communicate with an SQ on a network by using MIDI over TCP/IP.

  • Page 7: Midi Faders And Soft Controls

    2. MIDI Faders and Soft Controls 2.1 MIDI faders The SQ has 32 freely assignable MIDI fader strips. Refer to the SQ Reference Guide for information on strip assignments. Each strip sends and responds to the following messages sent on the ‘MIDI DAW Control Channel’: MIDI Mute Key...

  • Page 8: Soft Keys And Footswitch

    2.2 Soft Keys and Footswitch The SQ-5 features 8 assignable Soft Keys, while the SQ-6 and SQ-7 both feature 16 assignable Soft Keys and all SQ models feature a dual footswitch input. Any of these can be assigned the following MIDI functions:...

  • Page 9: Control To And From The Mixer

    3. Control to and from the Mixer 3.1 Scene change A scene change uses a bank change followed by a program change. Bank Program N= MIDI BK = PG = Program Where: Channel, Bank, The bank change (BK) selects between three ranges of scenes: Scenes 1 to 128 = Bank 1 = 00 Scenes 129 to 256 = Bank 2 = 01 Scenes 257 to 300 = Bank 3 = 02...

  • Page 10: Soft Keys

    3.2 Soft Keys The SQ Soft Keys can be controlled using standard MIDI Note On/Off messages, allowing the control of many more internal functions of the SQ by proxy.  The SQ does not send note on/off messages when a Soft Key is pressed unless the Soft Key is set to a MIDI note on/off function.

  • Page 11: Mutes

    3.3 Mutes The SQ sends and receives absolute On or Off mute messages. It will also toggle the mute state when either an increment or decrement message is received. MSB and LSB are a parameter number for the channel you wish to mute or unmute.

  • Page 12: Levels

    3.4 Levels Levels can be set using either absolute values or in relative 1dB increments/decrements. MSB and LSB are a parameter number showing where the signal is being sent from and where it is being sent to.  MSB/LSB parameter numbers are shown in the reference tables.

  • Page 13: Panning/Balance

    Examples: Address, Inc/Dec, MIDI Ch Message B0 63 40 B0 62 00 B0 60 00 Ip1 to LR, Increment, Ch1 B4 63 40 B4 62 34 B4 61 00 Grp5 to LR, Decrement, Ch5 BB 63 46 BB 62 22 BB 60 00 FX2Rtn to Aux3, Increment, Ch12 3.5 Panning/Balance Panning (mono sources) or balance (stereo sources) can be set using either...
  • Page 14 Right one step (increment) Increment 60 00 Left one step (decrement) Decrement 61 00 N= MIDI MB/LB = MSB/LSB Parameter number Both where: Channel, Examples: Address, Left/Right, MIDI Ch Message B0 63 50 B0 62 00 B0 60 00 Ip1 to LR, Right, Ch1 B0 63 50 B0 62 00 B0 61 00 Ip1 to LR, Left, Ch1 B0 63 53 B0 62 7B B0 60 00...

  • Page 15: Mix Assignments

    3.6 Mix Assignments The SQ sends and receives absolute On or Off assign messages. It will also toggle the assign state when either an increment or decrement message is received. MSB and LSB represent a parameter number showing where the signal is being sent from and where it is being sent to.

  • Page 16: Getting Values

    3.7 Getting values A ‘get’ command can be sent to the SQ in order to return the current value of any mute, level, pan/balance or assignment parameter listed in this document. MSB and LSB represent the parameter number of the value being requested, followed by a data increment with value 7F (i.e.

  • Page 17: Reference Tables

    4. Reference Tables MIDI channels 1 to 16 (N) Channel 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 4 5 6 7 8 9 A B C D E F SQ Value to Note to Hexadecimal and other values from 1-128) VAL HEX...
  • Page 18 Soft Key Notes and Hexadecimal Values (SK) SoftKey Note SoftKey Note SoftKey Note SoftKey Note Example Level Values (VC/VF) dB VC VF dB VC VF dB VC VF dB VC VF dB VC VF dB VC VF -inf 00 00 -45 4C 7D -29 5B 69 -19 65 0C...
  • Page 19 In the following tables, the source is shown on the left and the destination is shown at the top. Each parameter number includes one MSB (MB) and one LSB (LB). Mute Parameter Numbers – Inputs to LR/Aux (MB/LB) MUTE MUTE MUTE MUTE MSB LSB...
  • Page 20 Level Parameter Numbers – Inputs to LR (+Groups) and Aux (MB/LB) Aux1 Aux2 Aux3 Aux4 Aux5 Aux6 Aux7 Aux8 Aux9 Aux10 Aux11 Aux12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB Ip1 40 00 40 44 40 45 40 46 40 47 40 48 40 49 40 4A 40 4B 40 4C 40 4D 40 4E 40 4F Ip2 40 01 40 50 40 51 40 52 40 53 40 54 40 55 40 56 40 57 40 58 40 59 40 5A 40 5B Ip3 40 02 40 5C 40 5D 40 5E 40 5F 40 60 40 61 40 62 40 63 40 64 40 65 40 66 40 67...
  • Page 21 Level Parameter Numbers – Groups to LR/Aux (MB/LB) Aux1 Aux2 Aux3 Aux4 Aux5 Aux6 Aux7 Aux8 Aux9 Aux10 Aux11 Aux12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB 40 30 45 04 45 05 45 06 45 07 45 08 45 09 45 0A 45 0B 45 0C 45 0D 45 0E Grp1 40 31 45 10 45 11 45 12 45 13 45 14 45 15 45 16 45 17 45 18 45 19...
  • Page 22 Level Parameter Numbers – FX Sends (MB/LB) FX1Snd FX2Snd FX3Snd FX4Snd FX1Snd FX2Snd FX3Snd FX4Snd FX1Snd FX2Snd FX3Snd FX4Snd MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB Ip1 4C 14 4C 15 4C 16 4C 17 Ip25 4C 74 4C 75 4C 76 4C 77 4D 54 4D 55 4D 56 4D 57...
  • Page 23 Panning/Balance Parameter Numbers – Inputs to LR (+Groups) and Aux (MB/LB) Aux1 Aux2 Aux3 Aux4 Aux5 Aux6 Aux7 Aux8 Aux9 Aux10 Aux11 Aux12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB Ip1 50 00 50 44 50 45 50 46 50 47 50 48 50 49 50 4A 50 4B 50 4C 50 4D 50 4E 50 4F Ip2 50 01 50 50 50 51 50 52 50 53 50 54 50 55 50 56 50 57 50 58 50 59 50 5A 50 5B Ip3 50 02 50 5C 50 5D 50 5E 50 5F 50 60 50 61 50 62 50 63 50 64 50 65 50 66 50 67...
  • Page 24 Balance Parameter Numbers – Groups to LR/Aux (MB/LB) Aux1 Aux2 Aux3 Aux4 Aux5 Aux6 Aux7 Aux8 Aux9 Aux10 Aux11 Aux12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB 50 30 55 04 55 05 55 06 55 07 55 08 55 09 55 0A 55 0B 55 0C 55 0D 55 0E Grp1 50 31 55 10 55 11 55 12 55 13 55 14 55 15 55 16 55 17 55 18 55 19...
  • Page 25 Balance Parameter Numbers – Master Sends (MB/LB) Mtx1 Mtx2 Mtx3 Mtx1 Mtx2 Mtx3 Output Output MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB 5E 24 5E 25 5E 26 5E 4B 5E 4C 5E 4D 5F 00 FX1Snd 5F 0D Grp1...
  • Page 26 Assignment Parameter Numbers – Inputs to LR/Aux (MB/LB) Aux1 Aux2 Aux3 Aux4 Aux5 Aux6 Aux7 Aux8 Aux9 Aux10 Aux11 Aux12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB Ip1 60 00 60 44 60 45 60 46 60 47 60 48 60 49 60 4A 60 4B 60 4C 60 4D 60 4E 60 4F Ip2 60 01 60 50 60 51 60 52 60 53 60 54 60 55 60 56 60 57 60 58 60 59 60 5A 60 5B Ip3 60 02 60 5C 60 5D 60 5E 60 5F 60 60 60 61 60 62 60 63 60 64 60 65 60 66 60 67...
  • Page 27 Assignment Parameter Numbers – Inputs to Groups (MB/LB) Grp1 Grp2 Grp3 Grp4 Grp5 Grp6 Grp7 Grp8 Grp9 Grp10 Grp11 Grp12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB Ip1 66 74 66 75 66 76 66 77 66 78 66 79 66 7A 66 7B 66 7C 66 7D 66 7E 66 7F Ip2 67 00 67 01 67 02 67 03 67 04 67 05 67 06 67 07 67 08 67 09 67 0A 67 0B Ip3 67 0C 67 0D 67 0E 67 0F 67 10 67 11 67 12 67 13 67 14 67 15 67 16 67 17...
  • Page 28 Assignment Parameter Numbers – Groups to LR/Aux (MB/LB) Aux1 Aux2 Aux3 Aux4 Aux5 Aux6 Aux7 Aux8 Aux9 Aux10 Aux11 Aux12 MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB 60 30 65 04 65 05 65 06 65 07 65 08 65 09 65 0A 65 0B 65 0C 65 0D 65 0E Grp1 60 31 65 10 65 11 65 12 65 13 65 14 65 15 65 16 65 17 65 18 65 19...
  • Page 29 Assignment Parameter Numbers – FX Sends (MB/LB) FX1Snd FX2Snd FX3Snd FX4Snd FX1Snd FX2Snd FX3Snd FX4Snd FX1Snd FX2Snd FX3Snd FX4Snd MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB MSB LSB Ip1 6C 14 6C 15 6C 16 6C 17 Ip25 6C 74 6C 75 6C 76 6C 77 6D 54 6D 55 6D 56 6D 57...
