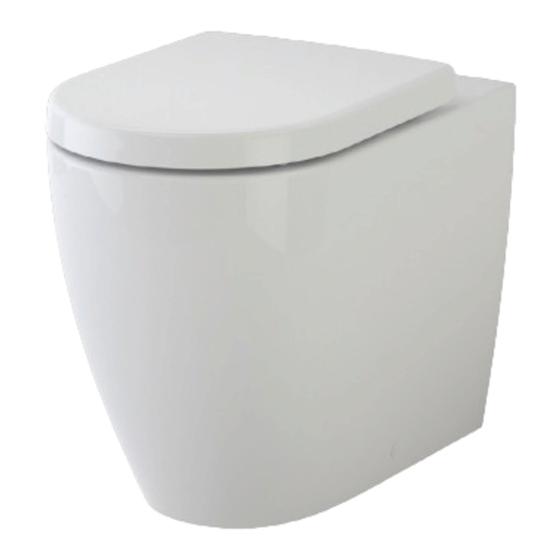

CAROMA FORMA CLEANFLUSH
BACK TO WALL RIMLESS TOILET SUITE
Inwall Installation
400 – 420 Frame
Integrated
45
isolating valve
supplied
SPECIFICATIONS
Recommended use
Domestic, hotel and commercial
Material
Pan: Vitreous china
Cistern: Plastic
Seat: Thermoset
Colour
White
Weight
Pan: 28 kg
Cistern: 3 kg
Water inlet
Back entry
Inlet valve
Suitable for dynamic flow pressures of 30 kPa to
1000 kPa.
Bowl configuration
Universal trap for S or P trap installations
Rim configuration
Rimless
Arc soft close quick release thermoset toilet seat
Seat
Cistern fixing
In-wall or under counter
Pan can be fixed to the floor by either bedding
Pan fixing
into mortar or using the supplied D82 Concealed
Fixing Bracket.
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by
the product warranty. Refer to Warranty Conditions.
The more
stars the more
water efficient
WATER RATING
Australian
www.waterrating.gov.au
Standard
3.5
litres
average flush
4.5 L per full flush / 3 L per half flush
WaterMark
In accordance with AS/NZS 6400
AS 1172
Licence No. 0001
Lic SMKP1368/6
WMKA1368/6
Caroma Industries Limited
SAI Global
6 min. – 45 max.
Access plate
and buttons
210
90 recommended setout, range 60 – 120
(up to 50mm sideways adjustment)
TM
TM
Disclaimer: Products in this specification manual must by regulation be installed by
licensed and registered trade people. The manufacturer/distributor reserves the right
to vary specifications or delete models from their range without prior notification.
Dimensions are nominal measurements only. Dimensions and set-outs listed are correct
at time of publication however the manufacturer/distributor takes no responsibility for
printing errors.
Tech Page Version: 2
90
min
wall thickness
570
25
All dimensions are in millimetres and are subject to normal manufacturing
variations. Caroma pursues a policy of continuing improvement in design
and performance of its products. The right is therefore reserved to vary
specifications without notice.
To see the complete CAROMA range go to
www.reece.com.au/bathrooms
INVISI II
™
150
350
page 1 of 3
