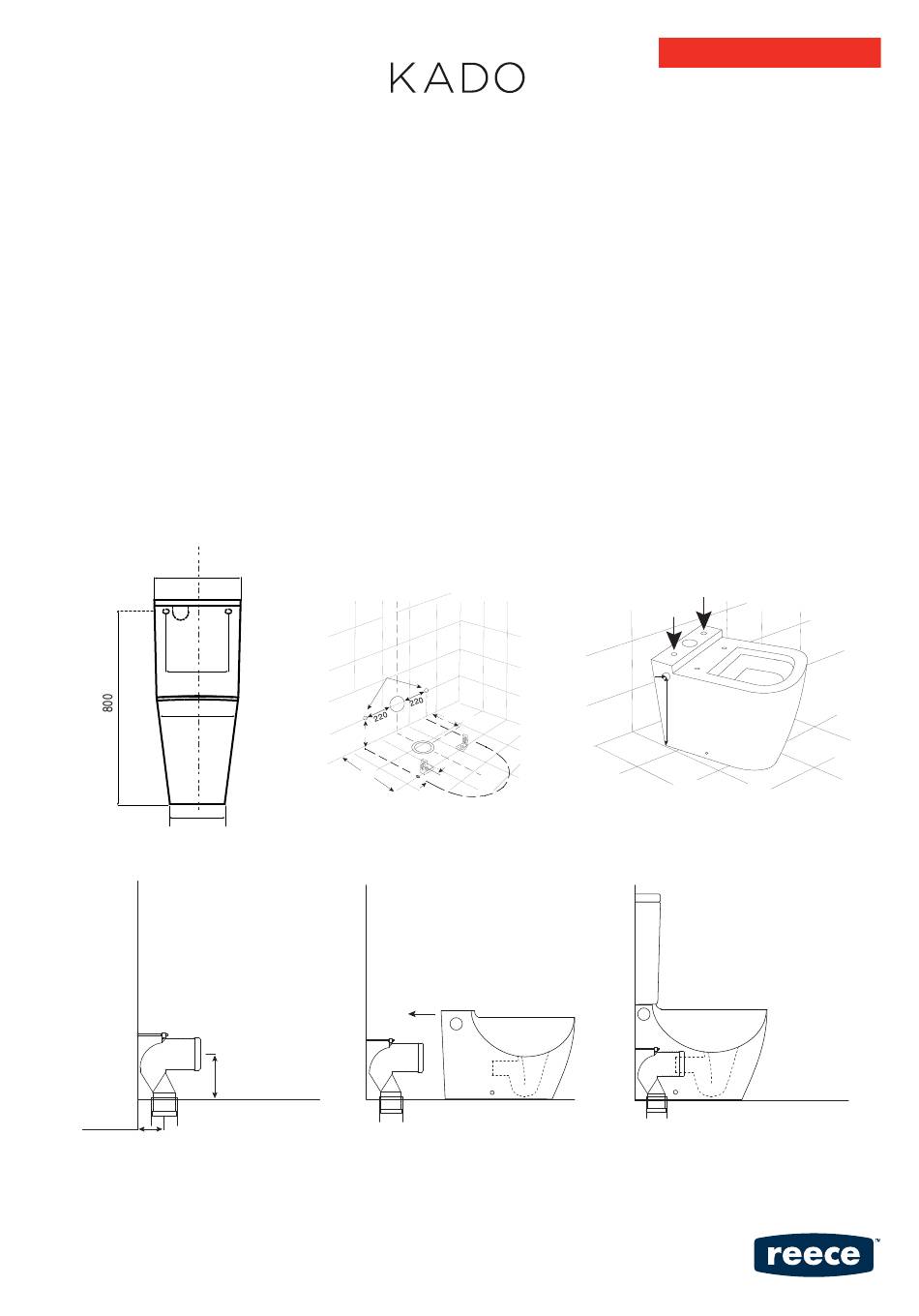

Reece Kado Lux Installation Instructions

Kado Lux Close Coupled Back to Wall Overheight
Set-Up
1. Rough in positions of water inlet, waste outlet and fixing bracket. Prepare waste outlet according to required setout
(95mm min - 180mm max) and drill floor fixing brackets into position (60mm inside traced mark of pan rim).
2. Insert top-fix plastic fixing nut and bolt into pan (supplied).
S-Trap Installation
1. Lubricate the rubber fins of the pan bend and position in the waste pipe at the required height. Fix the pan
connector back to the wall using the rod and bracket.
2. Align and push pan back to wall, connect pan spigot into waste bend ensuring firm connection.
3. Fix cistern onto pan, bucket flush and check for leaks.
Water Inlet & Levelling Pan
1. Connect water inlet valve using 15mm mini cistern stop and 15mm flexible connector (not supplied). Fill the cistern
and ensure correct water level. For adjustment refer separate inlet valve instructions.
2. Ensure that pan is level and that cistern aligns with wall. Make minor adjustments if necessary.
3. Fix pan to floor using screws and caps provided.
4. Silicone pan to floor. Remove excess sealant.
390
285
360
250
Front View
WALL
95-180mm
Dimensions are nominal measurements only.
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference
Published 23/11/2020
Bottom Inlet Toilet Suite (4 Star)
Water Inlets
180
215
WALL
180
95-180
60
FINISHED FLOOR LEVEL
Installation Instructions
70
350
Left Hand or Right Hand Water Inlet
WALL
FINISHED FLOOR LEVEL
page 1 of 2
