Reece LAUFEN New Classic 1813058 Installation Instructions

Rimless back to wall pan and soft close quick release seat

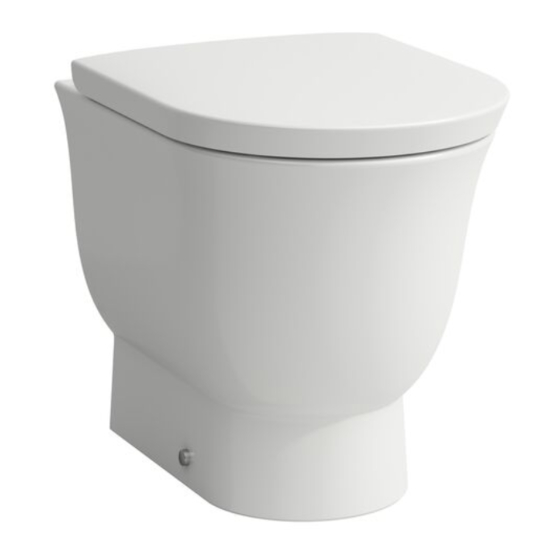

Laufen New Classic Rimless Back to Wall Pan and

370

CLEANING RECOMMENDATIONS:

We recommend the use of soapy water or approved cleaners.

This product should not be cleaned with abrasive materials.

Damage caused by any improper treatment is not covered by the product warranty - refer to Warranty document.

Please ensure a copy of the installation

instructions is left with the end user for future reference.

Published 04/03/2021

Soft Close Quick Release Seat (4 Star)

~130

Installation Instructions

120

~230

Pan S Trap Setout Dimensions 95mm to 120mm

page 1 of 3

Table of Contents

Do you have a question about the LAUFEN New Classic 1813058 and is the answer not in the manual?

Page 1 Installation Instructions page 1 of 3 Laufen New Classic Rimless Back to Wall Pan and Soft Close Quick Release Seat (4 Star) ~130 ~230 Pan S Trap Setout Dimensions 95mm to 120mm CLEANING RECOMMENDATIONS: We recommend the use of soapy water or approved cleaners. This product should not be cleaned with abrasive materials.
Page 2 Garantie/Haftung nur bei Montage gemäss Anleitung durch eine konzessionierte Fachkraft und gemäss der örtlichen Vorschriften. Garantie/responsabilité uniquement assurées en cas de montage conforme au mode d’emploi, e re et en fonction des prescriptions locales. Garanzia/responsabilità assicurate soltanto in caso di montaggio conforme alle istruzioni per l’uso e eseguito da uno specialista concessionario in funzione delle prescrizioni locali. Guarantee/Liability only when assembled by an approved specialist in accordance with the instructions and local regulations.
Page 3 Installation Stand-WC Instalace záchodové mísy Installation gulvstående toilet Brīvi stāvoša tualetes poda uzstādīšana Installation toilettes au sol Ant grindų statomo klozeto įrengimas Installasjon gulvstående toalett Instalação de sanita de pousar Montaggio vaso a pavimento Instalacja toalety stojącej Asennus, vapaasti seisova wc Instalare WC sta ionar Installation ﬂoor-standing toilet Padlóra szerelhető...
