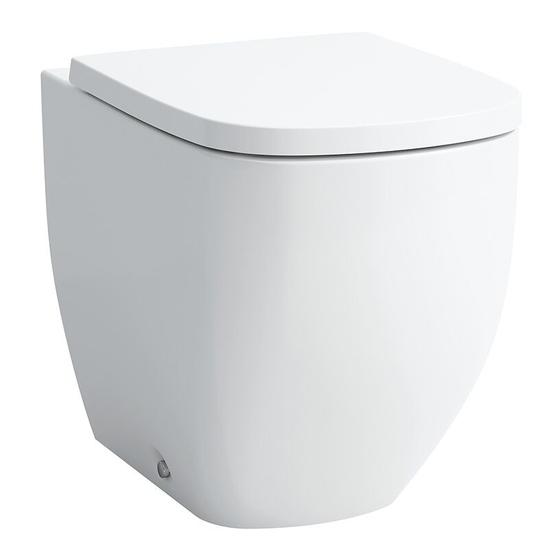

LAUFEN
PALOMBA
BTW PAN
40
100-115
SPECIFICATION
Rim configuration
Bowl configuration
Set out
Pan fixing
Seat
Flushing
WELS
Standards
FEATURES
Recommended Use
Weight
Finish
CLEANING RECOMMENDATIONS
Soapy water or approved bathroom cleaners. This bathroom
product should not be cleaned with abrasive materials. Damage
caused by any improper treatment is not covered by the
product warranty. Refer to Warranty Conditions.
The more
stars the more
water efficient
WATER RATING
www.waterrating.gov.au
3.4
litres
average flush
4.5 L per full flush / 3 L per half flush
In accordance with AS/NZS 6400
Licence No. 0137
WMKA
Bathroom Products Australia
02321
~140
Box rim
Available in P and S Trap
P Trap: 185mm, S Trap: 100-115mm
Screwed to floor brackets and bedded with
sealant
Soft-close matching seat
4.5/3 ltr flush, 3.4 Av ltr flush
4 Star WELS Rating
AS1172.1
Domestic, hotel and commercial
30.9kg
LAUFEN Clean Coat
Disclaimer: Products in this specification manual must by regulation be installed by
licensed and registered trade people. The manufacturer/distributor reserves the right
to vary specifications or delete models from their range without prior notification.
Dimensions and set-outs listed are correct at time of publication however the
manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
360
To see the complete LAUFEN range go to
www.reece.com.au/bathrooms
page 1 of 5
