SECO-LARM SD-996C-NUQ Manual

Features:
 Field selectable for fail-safe or fail-secure
 12/24 VDC Operating voltage
 Static strength – 1,000-lb (4,448N)
 Dynamic strength – 50ft-lb (68J)
 Includes wiring harness and connectors
for either 12VDC or 24VDC
 Trim plate included
 Mounting tabs included for mounting to
hollow aluminum door
 For Indoor Use Only

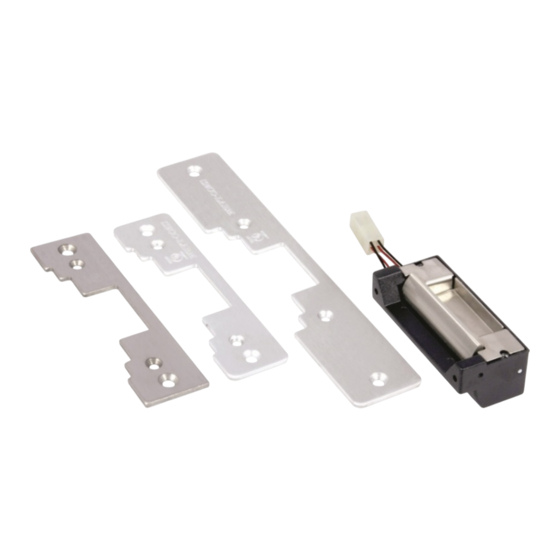

 Includes 3 faceplates for nearly any
type of door:
 Aluminum door frames
 Hollow metal door frames
 Wood door frames
SD-996C-NUQ
Universal Door Strike
Manual
 Reversible non-handed design fits either right-
 Low profile: Strike is only 1
 The SD-996C-NUQ is intended to be used with UL
 The SD-996C-NUQ shall not impair the intended
 The SD-996C-NUQ shall not impair the operation
 Wiring methods shall be in accordance
 Optional lip-extension brackets available:
- SD-995C-LE25 1" Lip Extension
- SD-995C-LE50 2" Lip Extension
hand or left-hand doors
aluminum frames
Listed Exit Hardware
operation of an emergency unit
of panic hardware mounted on the door
with NFPA70
43RG
/ " deep for use with
1
4
