Features:
• Horizontally adjustable keeper
accommodates latchbolt positioning
• Vertically adjustable ramp accommodates
nib positioning
• Low profile: Strike is only 1
use with aluminum frames
• Field selectable for fail-safe or
fail-secure operation
• Mounting tabs included for mounting to
hollow aluminum & metal doors
• Reversible non-handed design fits either
right-hand or left-hand doors
• For Indoor Use Only

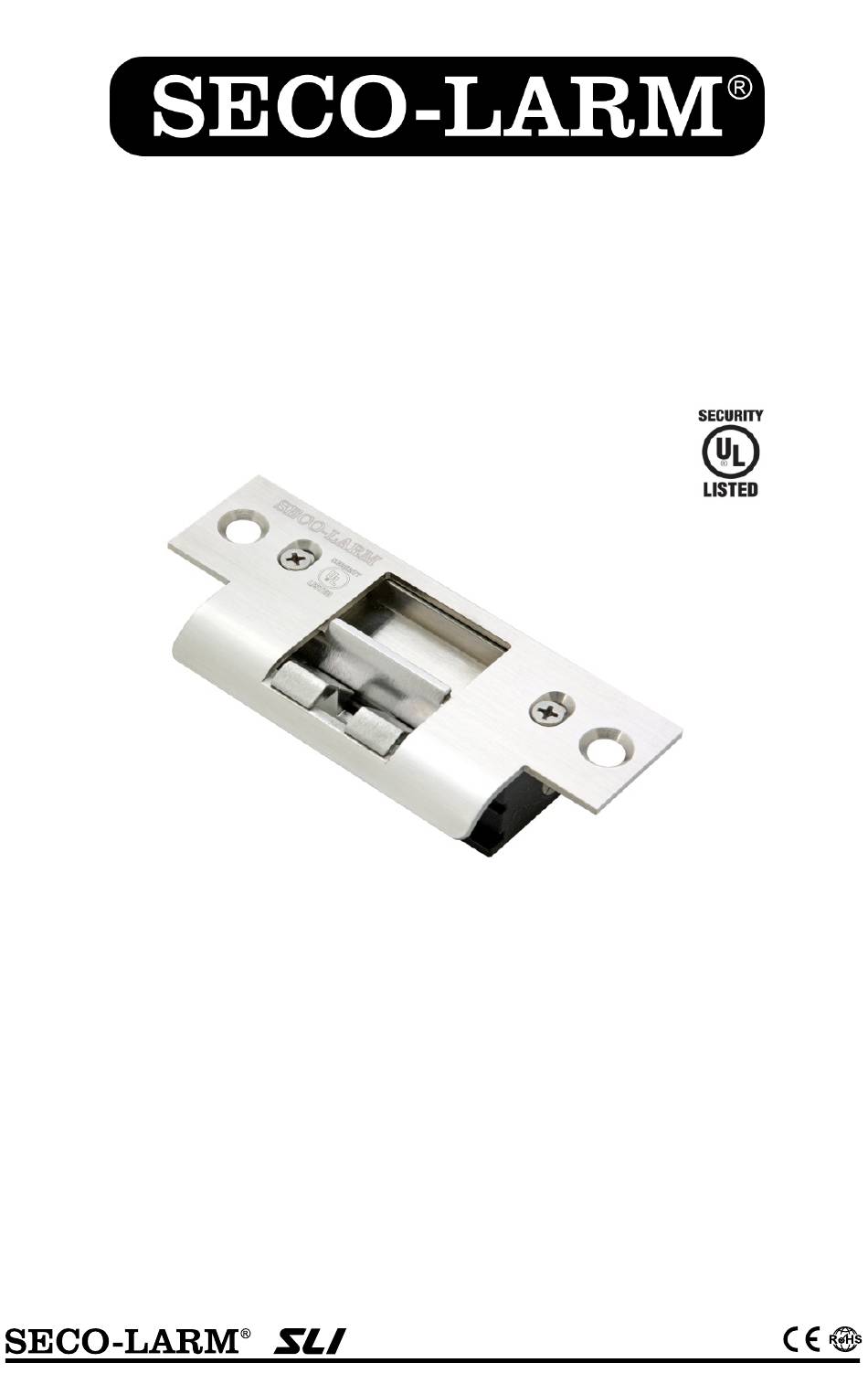

SD-993C-D3Q
No-Cut Door Strike
Manual
/
" deep for
1
16
• Static strength – 1,500 lbs. (680kg)
• Dynamic strength – 70 ft-lbs. (9.68 m-kgs)
• 12/24 VDC Operating voltage
• Tested to 100,000 cycles (UL Tested),
tested to 1,000,000 cycles (Factory Tested)
• Low current draw: 300mA@12VDC,
150mA@24VDC
• The SD-993C-D3Q is intended to be used with
UL Listed Exit Hardware
• The SD-993C-D3Q shall not impair the intended
operation of an emergency exit
• The SD-993C-D3Q shall not impair the operation
of panic hardware mounted on the door
43RG
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM SD-993C-D3Q
Summary of Contents for SECO-LARM SD-993C-D3Q
- Page 1 • Low current draw: 300mA@12VDC, • Field selectable for fail-safe or 150mA@24VDC fail-secure operation • The SD-993C-D3Q is intended to be used with • Mounting tabs included for mounting to UL Listed Exit Hardware hollow aluminum & metal doors • The SD-993C-D3Q shall not impair the intended •...
- Page 2 SECO-LARM No-Cut Door Strike Specifications: Model SD-993C-D3Q Operating voltage 12/24 VDC 12VDC 300mA Current draw 24VDC 150mA Latch throw " (15mm) Keeper width " (36mm) Static strength 1,500 lbs. (680kg) Dynamic strength 70 ft-lbs. (9.68 m-kgs) Endurance 100,000 cycles (UL Tested), 1,000,000 cycles (Factory Tested) Operating temperature 32°~120°...
- Page 3 SECO-LARM No-Cut Door Strike Installation: Door jamb 1. Measure the latch line (see fig. 1). Latch Line a. Measure the distance between the face of the door Door latch jamb and the face of the door latch. This is the Deadlatch pin vertical latch distance.
- Page 4 This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for three (3) years from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This...
