10.3 Connecting in parallel NPN sensors.

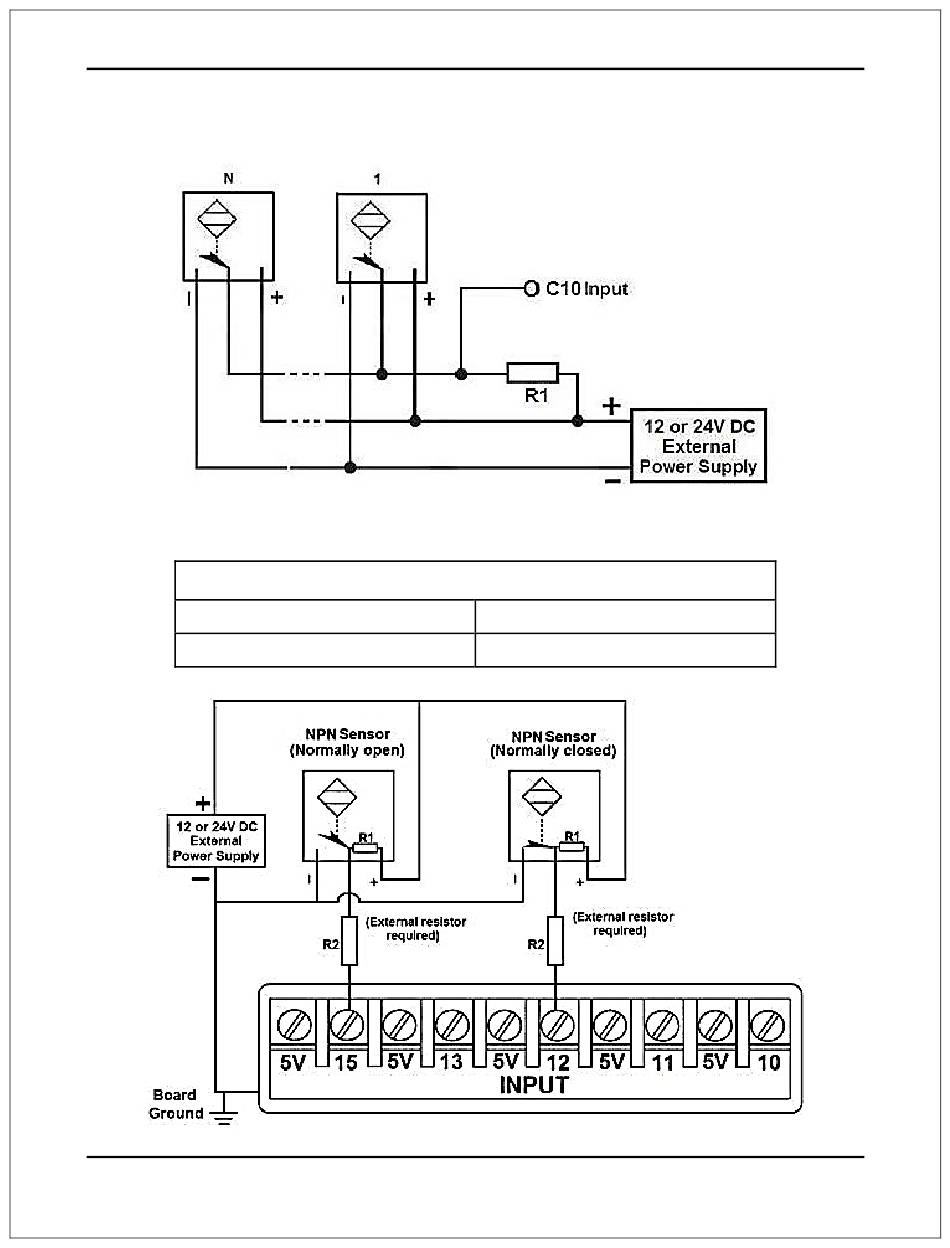

Fig. 5 Wiring diagram to connect in parallel NPN open collector proximity sensors.
Connecting NPN open collector proximity sensor with the C25
R1 Value (12V)
R1 Value (24V)
Approx. 10KΩ
Approx. 25KΩ
Fig. 6 Wiring diagram to connect NPN proximity sensors with internal pull up resistor.
User's Manual
Page 8
