This field is only valid when the CPE is synchronized with the cBST.
7. Choose the "SS" tab, from the menu on the left hand side of the screen, choose showSs.
Press the "CALL" button. Check if the WiN5000/5200 is in OPERATIONAL status.
"OPERATIONAL" status means that the link is up.

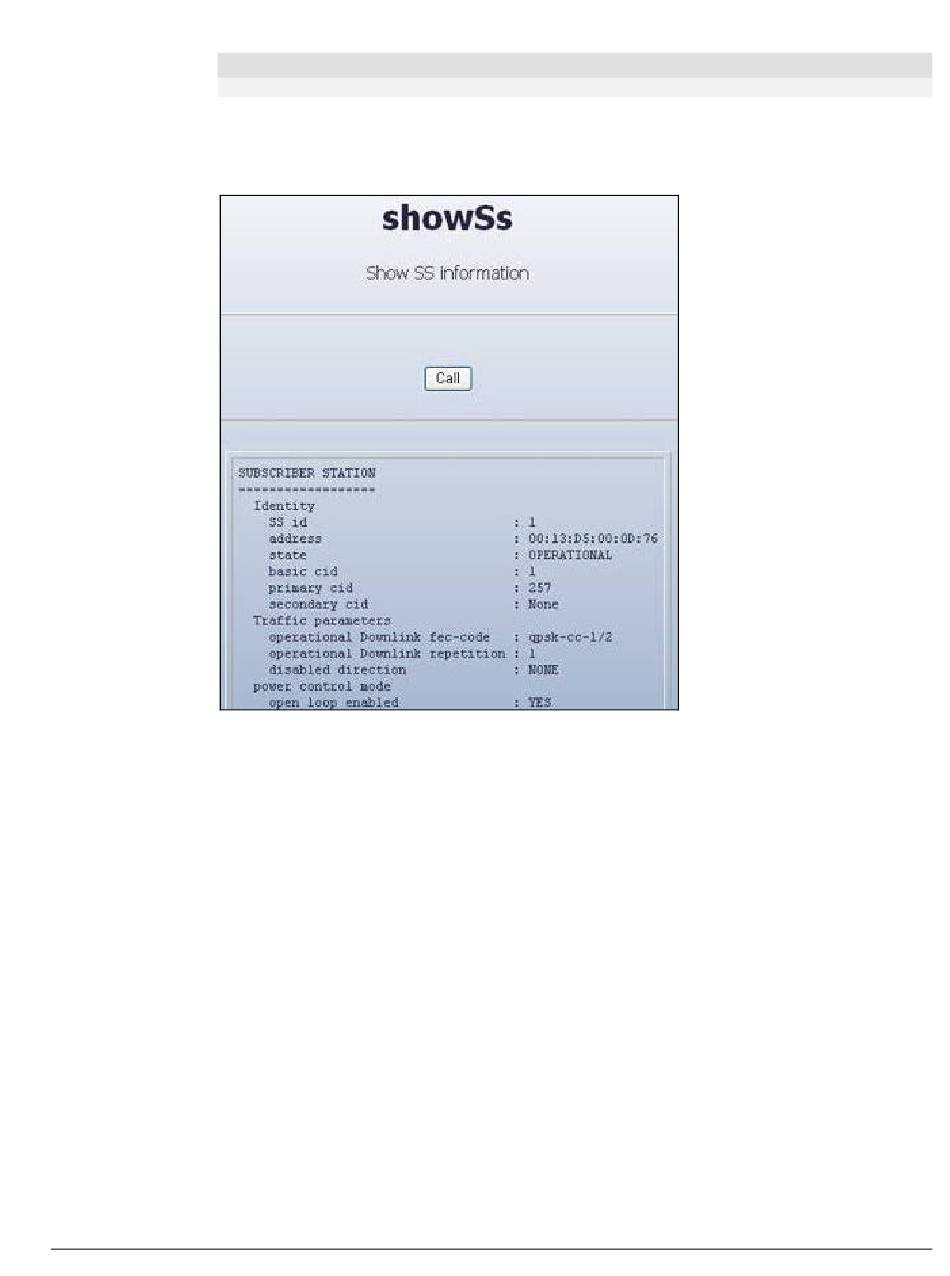

Figure 5-6: showSsPhyStatDl screen
8. Check that all the Service flows are created by using the showSF menu
5.2
Aligning the CPE Antenna
The LINK QUALITY bar display is located on the bottom panel of the outdoor unit. The LED
marked WLNK indicates that the wireless link is active, and is lit when the CPE has
completed the Network Entry process. There are 8 LEDs that indicate the quality of the
received signal. The higher the number of LEDs that are on, the better the quality of the
received signal.
This section describes how to align the CPE antenna using the LINK QUALITY bar display.
WiN5200
Equipment Configuration and Monitoring | 41
