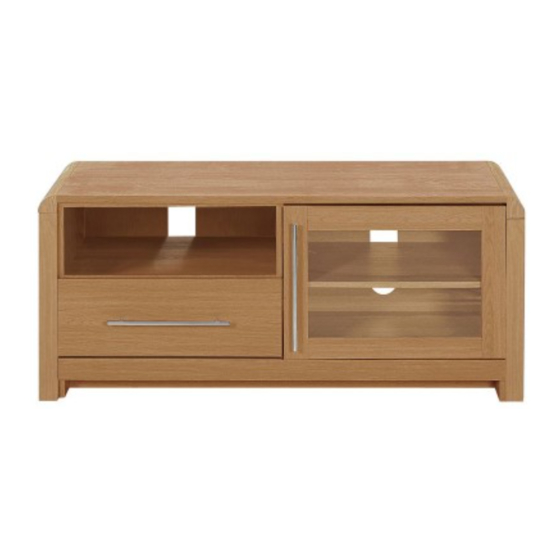

Elford - Entertainment Unit
245/8911
- Please keep for further reference
246/6934
Dimensions
Width - 130cm
Depth - 41cm
Height - 53cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6403030
BK02560 - Issue 1 - 29/05/2014
Advertisement
Table of Contents
Related Manuals for Heart of House Elford 245/8911
Summary of Contents for Heart of House Elford 245/8911
- Page 1 Elford - Entertainment Unit Assembly Instructions 245/8911 - Please keep for further reference 246/6934 Dimensions Width - 130cm Depth - 41cm Height - 53cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6403030 BK02560 - Issue 1 - 29/05/2014...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Parts of the assembly will be • We do not components and tools listed on easier with 2 people. recommend the pages 2 and 3.
- Page 3 If you have damaged or missing components, call the Components - Panels Argos = 0345 6403030 Customer Helpline: Please check you have all the panels listed below Entertainment unit (53 x 130 x 41cm)
- Page 4 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 15mm Screw x 1 15mm Washer x 2 Wall strap x 1 The following components are pre-fi...
- Page 5 Assembly Instructions Step 1 Remove and replace handles Position the unit in the required position. The large bar handles are fi tted to the inside of the unit, using a Philips screwdriver unscrew the 20mm handle screws in each handle and remove both the 20mm handle screw and the large and small bar handles.
- Page 6 Assembly Instructions Step 2 Fixing to wall It is recommended that the unit is fi xed to a wall Fix wall strap to the back of the unit using 15mm screw 15mm washer Warning: The 15mm screw is for Back Panel fi...
- Page 7 Customer Helpline: If you need help or have damaged or missing parts, call the Customer Helpline: 0845 2417621 If you need help or have damaged or missing parts, call the Argos = 0345 6403030...
