- Page 1 User Manual for XMRCP4 XMRCP4 Multy Functions Control Panel User Manual www. syscom.mx For more information, please visit our website:...
-
Page 2: Product Characteristic
I\O signal, which is to switch the pictures of camera. 1.2.5 Drivers Swipe Card There is a built-in RFID module in XMRCP4, which is used for drivers to sign in and sign out. The information will be uploaded to platform via MDVR network. 1.2.6... -
Page 3: Product Structure

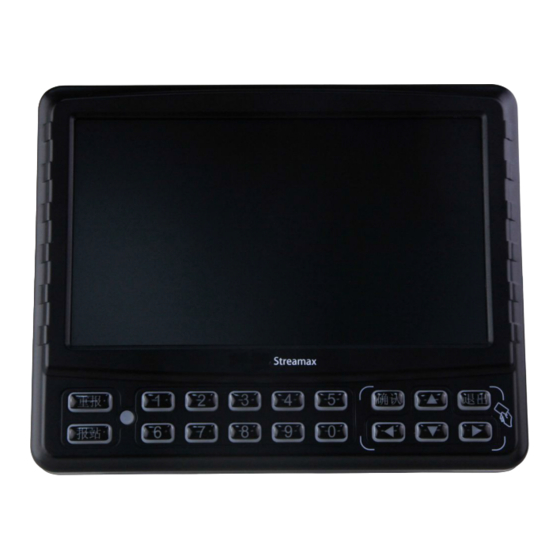

User Manual for XMRCP4 1.3 Product structure 1.3.1 Product appearance and size. Front Panel of XMRCP4 Dimension of XMRCP4 1.3.2 Button Introduction CP4 applies with 18 buttons, including 1-0 number buttons, 4 function buttons and 4 arrow buttons for bus control and scheduling application. - Page 4 User Manual for XMRCP4 Example : If the speaker says we are arriving XX, and it will turn to we are leaving XX when pressing Next Stop. Press Enter to view system information and open the selected menu. Press Exit to exit current interface and switch from the main interface to the live-view interface.
-
Page 5: Lcd Specification
User Manual for XMRCP4 1.3.4 LCD Specification LCD Parameters Performance Index Description Screen Type LCD screen Touch Type 4 wire resistor type Size 7 inches Resolution 800*480 Luminance 400cd/m2 Under a suitable brightness condition, the higher contrast, the Contrast Ratio 20.83402778... - Page 6 1.3.6 Interface To ensure the waterproof, the external interface of XMRCP4 uses harness, which leads a bunch of buses from XMRCP4, and then the joint distributes according to their functions, details are as following: Definition： Connector Name Function Definition Black 10PIN aviation-din male connector connects to Streamax MDVR.
-
Page 7: Product Performance
User Manual for CP4 2 Product Performance Environmental Performance Serial No. Experiment Items Test Methods Test equipment applies to GB/T 2423.1—2008 Put into the cryogenic chamber at -20℃±2℃ for 72 hours at 0.85 times rated voltage. During this time, cut off the power for 1 hour and reconnect the power for 1 Low Temperature Operation hour repeatedly until the end of the test. - Page 8 User Manual for XMRCP4 2.2 Mechanical Environmental Performance Serial No. Experiment Items Test methods Test equipment and method apply to GB/T 2423.5—2008 Normal installation and without power supply, the peak acceleration is 490 m/s² and pulse duration is 11 ms. Six sides Impact do these steps 3 times.
