Summary of Contents for Epcom XMR Series

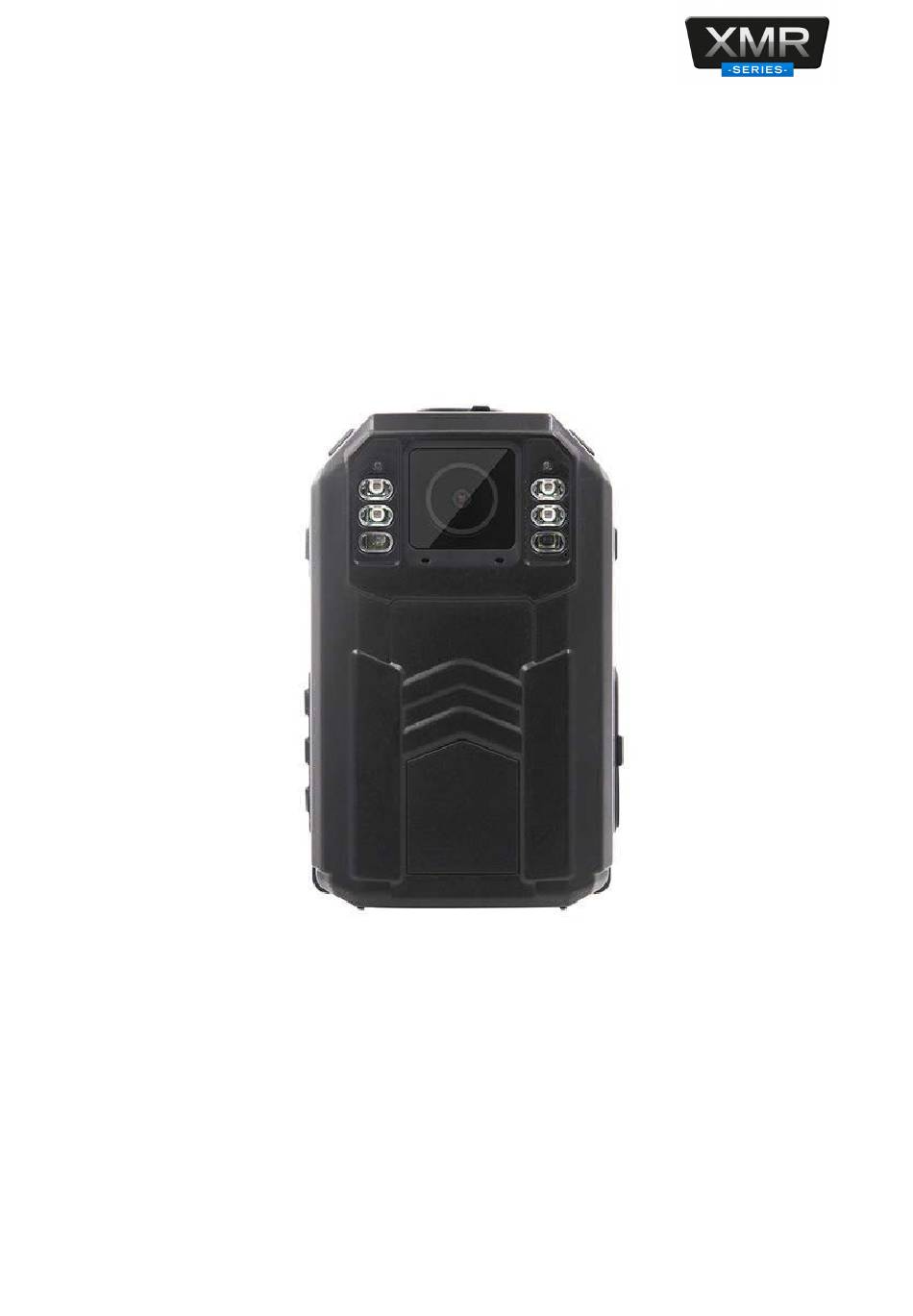

  • Page 1 XMRX2 User manual...

  • Page 2: Table Of Contents

    Content 1. Introduction.............................1 2. Structural Diagram..........................2 2.1 Front view..........................2 2.2 Back view..........................3 3. Basic Operations..........................4 3.1 Live view window.........................4 3.2 Main menu..........................4 4. Device using............................9...

  • Page 3: Introduction

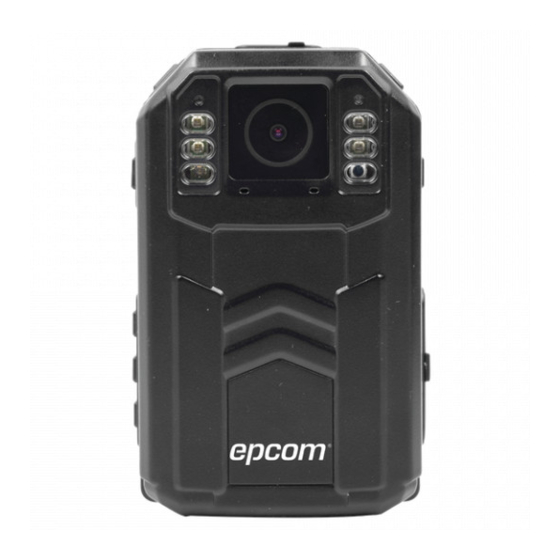

    1. Introduction XMRX2 is a full featured body worn camera specifically designed for Law Enforcement. The camera features real time HD video, 1296P recording, and a high resolution still image capture visible on the LCD screen for instant playback, with wide angle; The rugged design is resilient to withstand demanding work environments faced by law enforcement officers, corrections, military and security detail.

  • Page 4: Structural Diagram

    2. Structural Diagram 2.1 Front view Item Name Description Solid red means camera is recharging, solid green means the Charge indicator camera recharging is completed. Record clear image in HD in low light situations. 10 meters IR light visible. Microphone Capture the environment voice during the recording mode.

  • Page 5: Back View

    2.2 Back view Item Name Description Connect to external camera, when it is connected, the image External camera port will switch to external camera automatically. Video REC button Press this button to start/stop the video recording Audio REC button Press this button to start/stop the audio recording Press this button to start capture the snapshots, even during Snapshot button video recording mode.

  • Page 6: Basic Operations

    3. Basic Operations 3.1 Live view window The body worn camera LCD screen is a small monitor to display various camera information and operation status. Item Name Description Video recording icon Yellow means recording Snapshot icon Yellow means snapshot success Yellow means GPS detected, green means GPS GPS icon signal is valid.
  • Page 7 Menu list: 1.Video resolution 2.Video quality 3. Video clip 4.Pre-recording 5.Post-recording 6.Photo pixel 7.Snapshot 8.LCD brightness 9. Screen off 10. Video loop 11.Volume 12.Indicate sound 13. Key sound 14.Hourly notice 15. Indicate light 16. Auto IR switch 17.GPS 18.Language 19. Auto power off 20.Microphone 21.Motion detect 22.
  • Page 8 1. Video resolution The body worn camera offers five different recording resolutions. Resolution and frame rate options feature a proper balance between video quality and maximizing amount of video stored. Options Display resolution Images per second 720P30 1280*720 848P60 848*480 848P30 848*480 1296P30...
  • Page 9 6. Photo pixel The photo pixel provides options for still image resolution. 7. Snapshot In preview mode, Long press the snapshot button to shoot the selected number of pictures, and you can set the option as 2 PCS, 3 PCS, 5 PCS, 10 PCS, 15 PCS, 20 PCS. When video recording is working, the option will not work.
  • Page 10 13. Key sound Select to turn the key tone ON of OFF when you press the keys. 14. Hourly notice Select to turn the hourly notice ON or OFF, it will give the voice report hourly if the switch is ON. 15.

  • Page 11: Device Using

    22. Security password Select to turn security password ON or OFF. When it is ON, it will require the password when the users go to playback mode and menu mode, and the default password is 000000. 23. IR Sensitive It will help the camera to detect the brightness of environment, and check if the camera will activate or inactivate the IR.
  • Page 12 5. Recording Video In preview mode, press , the camera will start recording video. Meanwhile, t h e s t a t u s indicator will turn red and blinking. Press again, the camera will stop recording, and the video will be saved in MP4 format automatically.
  • Page 13 12. PTT Intercom Insert connecting cable of intercom into data interface of body camera to enable the PTT intercom function. Remark: The connecting cable should be selected according to the model of intercom. For any questions, please contact the manufacture directly. 13.
  • Page 14 17. Charging the Battery This camera has a chargeable battery built in. In case of low battery, please connect this camera to power supply for battery charging. Connect this camera and adapter via USB cable, and connect adapter to power supply to charge the battery.
