Rosewill PB360-RGB Instruction Manual

Rosewill PB360-RGB Instruction Manual

Advertisement

Quick Links

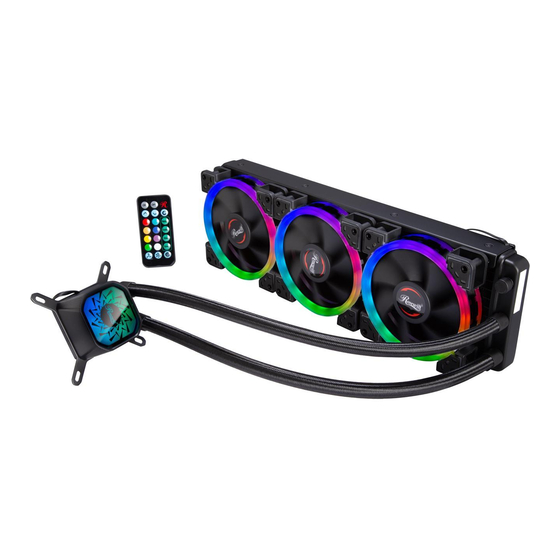

Product Overview
Accessory Kit
x1
Liquid CPU Cooler
x1
Remote
Controller
x1
Backplate
x4
Gasket
for Backplate
Please read the instruction manual before use and retain for future reference.
x1
RGB Hub
x1
Insulating Sheet
x4
Spring Screw
M3.5x31 Screw
for Backplate
Thank you for purchasing a Rosewill Liquid CPU Cooler.
* The apperance of product is subject to practicality.
x1
Intel Clip
(Pre-Installed)
x3
RGB Fan
x1
SATA Cable
x4
x12
#6-32x6 Screw
1
x1
AMD Clip
x4
LGA 2011
Screw
x1
3 Pin Connector
Cable
x12
#6-32x29.5 Screw
for Radiator
PB360-RGB
x1
Thermal
Grease
x4
Stand-Off
Cylinder
for Fan

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB360-RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosewill PB360-RGB

  • Page 1 PB360-RGB Thank you for purchasing a Rosewill Liquid CPU Cooler. Please read the instruction manual before use and retain for future reference. Product Overview * The apperance of product is subject to practicality. Accessory Kit Liquid CPU Cooler Intel Clip...
  • Page 2 Installation Guide 1. Install the Fan and Radiator into PC Case 1-1. Secure fans on radiator with twelve #6-32x29.5 mm screws (Figure 1). 1-2. Secure installed radiator in the case with twelve #6-32x6 mm screws. #6-32x6 Radiator Screws #6-32x29.5 * The apperance of product is Fan Screws subject to practicality.
  • Page 3 4. Instructions for AMD / Intel 4-1. Confirm the motherboard and match the correct side of backplate (AMD / Intel) (Figure 4). 4-2. Find the screw holes and secure four M3.5x31 screws in. Please note the scramble of dummy-proof between stand-off and M3.5x31 screws. 4-3.
  • Page 4 To avoid damage during installation, connect the case fan to the included fan hub only. Do not connect fans directly to any motherboard. *12V RGB headers are not supported Technical Support Information techsupport@rosewill.com 1-800-575-9885 Please register your product at www.rosewill.com for complete warranty information and support for your product. PB360-RGB_A...
