- Page 1 SATA+Ultra ATA RAID CONTROLLER RC212 User Manual...
- Page 2 SATA+ Ultra ATA RAID CONTROLLER Feature Highlights Compliant with PCI Specification, Rev. 2.2 Compliant with PCI “Plug & Play” 32-bit 33 MHz PCI interface Drive support: Serial ATA, Ultra ATA/133, Ultra ATA/100,Ultra ATA/66 Support ATA/ATAPI6 Supports SATA up to 150MB/Sec 48-bit LBA Support: Recognizes drives bigger than 137GB Support Windows 98SE, ME, 2000, XP, Server 2003 ant NT 4.0 Support RAID 0, 1, 0+1 and JBOD...

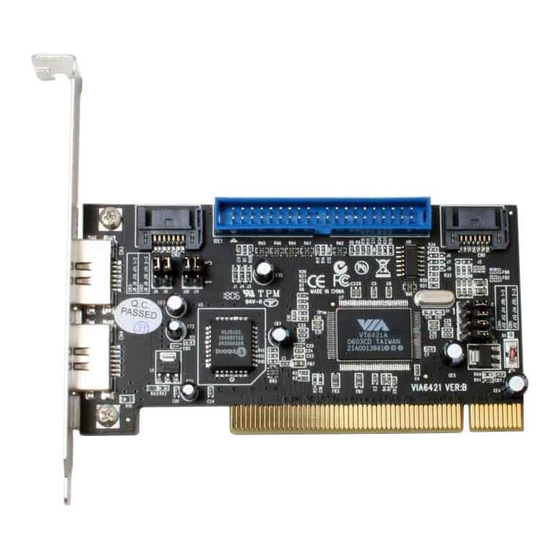

- Page 3 SATA+ Ultra ATA RAID CONTROLLER SATA Connector (Internal) SATA Connector (Internal) PATA Connector Jumpers control BC Switch Jumpers control AD Switch IDE/RAID: Jumper Settings Description J8-J11 Enable SATA Connector B close Enable SATA Connector C close J12-J15 Enable SATA Connector A close Enable SATA Connector D close...
- Page 4 SATA+ Ultra ATA RAID CONTROLLER attached hard drives. Please follow the steps below to setup your disk array. Warning: Please backup data in your hard drives to prevent data damage resulting from the unfamiliarity with the operation. Boot your system Please attach your hard drives to the VIA VT6421 RAID card, boot your system and then you will see the following message shown by the VIA VT6421 RAID card onboard BIOS on the screen: VIA Technologies, Inc.
- Page 5 SATA+ Ultra ATA RAID CONTROLLER Array Mode RAID 1 (Mirroring) Select Disk Drives Start Create Process Totally, there are four configurations supported: RAID Configurations Number of disks level/Type RAID 0 Disk Striping RAID 1 Disk Mirroring RAID 0+1 Disk Striping + Mirroring JBOD Disk...
- Page 6 “Yes, I want to restart my computer now.” and restart your system. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com/ for complete warranty information and future support for your product.
