- Page 1 COOLER RCX-Z3 USER Manual...

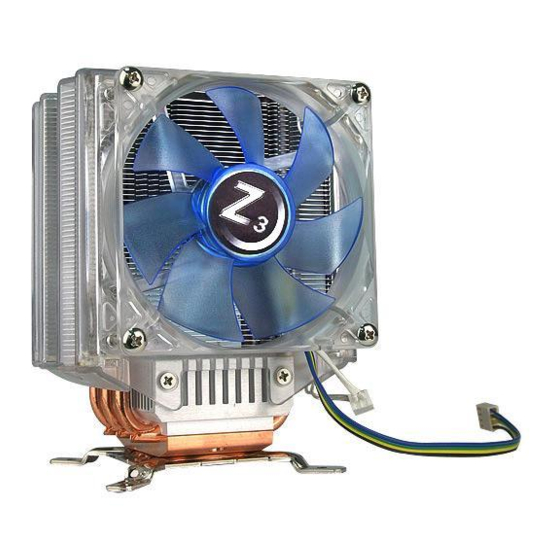

- Page 2 COOLER RCX-Z3 User Manual WARNING Improper Installation will result in damage to the processor. Never switch on the computer system until the fan is connected. Features ．Six embedded 6mm full copper heatpipes with new heatpipe technology provide rapid and even heat transfer.
-
Page 3: Installation Components
COOLER RCX-Z3 User Manual Installation Components LGA775 (A) X 1pcs (B) X 4pcs (C) X 4pcs (D) X 4pcs (N) X 1 pcs AMD K8-AM2 (E) X 1pcs (F) X 1pcs (G) X 1pcs (H) X 1pcs (I) X 4pcs... - Page 4 COOLER RCX-Z3 User Manual RCX-Z3 for LGA775 1. Place a rubber washer (part D) over each of the screws of the LGA775 backplate (part A). 2. Place the LGA775 backplate under the motherboard aligning the screws to fit through the four holes available around the CPU as illustrated.
- Page 5 COOLER RCX-Z3 User Manual 4. Apply the proper amount of thermal compound (part N) on the CPU surface; a thin layer is ideal, extra thermal compound will not improve performance. Make sure the CPU surface is perfectly clean. 5. Position the cooler over the four mounting screws. The installation direction of the heatsink will depend on your case and its airflow requirements.
- Page 6 COOLER RCX-Z3 User Manual 7. Connect the 2-pin female LED connector to the 2-pin male power connector from the fan. 8. Connect the 4-pin fan connector to the CPU fan motherboard connector. If a connector marked CPU fan is not apparent on the board, check the...
- Page 7 COOLER RCX-Z3 User Manual for AMD K8 / AM2 1. Take off the pre-attached LGA 775 heatsink retention bracket and retain the four (4) screws for the next step. 2. Place the K8 heatsink retention bracket (part G) on the heatsink base aligning the fixing screws with the Fan bracket indents and the corresponding...
- Page 8 COOLER RCX-Z3 User Manual for AMD K8 1. Remove the retention bracket from the motherboard by removing the screws (or pins in some motherboards). Note: It may be possible that the removal of the original backplate is not required if the cooler spring loaded screws are compatible.
- Page 9 COOLER RCX-Z3 User Manual for AM2 1. Remove the retention bracket from the motherboard by removing the screws (or pins in some motherboards). Note: It may be possible that the removal of the original backplate is not required if the cooler spring loaded screws are compatible.
- Page 10 D. Connect the 3-pin female connector (with yellow / black wires) to the CPU fan motherboard connector. E. Connect the fan control to the 4-pin PSU connector. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
- Page 11 www.rosewill.com...
