Summary of Contents for Rosewill RCX-Z4

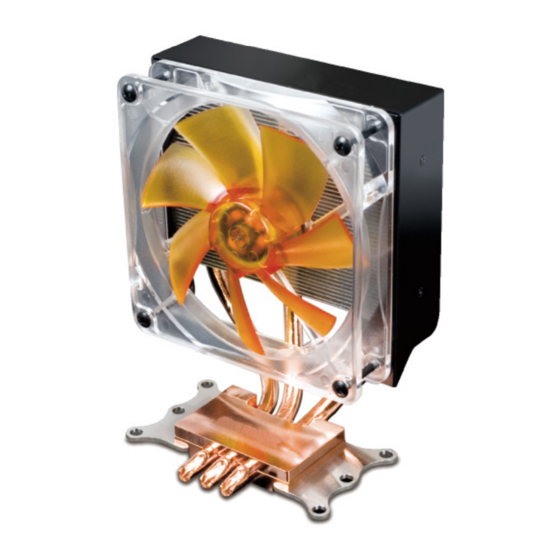

- Page 1 COOLER RCX-Z4 user manual...
- Page 2 COOLER RCX-Z4 user manual WARNING Improper Installation will result in damage to the processor. Never switch on the computer system until the fan is connected on to the motherboard power connector.
- Page 3 COOLER RCX-Z4 Installation Components user manual...
- Page 4 COOLER RCX-Z4 AMD K8 / AM2 Installation NOTE The K8 / AM2 heatsink retention bracket have been pre-installed on the heatsink. Do not remove for K8 / AM2. Keep the original motherboard backplate as it is. Remove the retention module from the motherboard by removing the screws.
- Page 5 film onto the back of the heatsink retention brackets. FOR AMD K8 Place the RCX-Z4 on the top of the CPU, align two holes ( shown in red as the picture below ) of heatsink retention bracket with the Motherboard holes. Using the K8 screws...
- Page 6 Motherboard holes. Using the K8 screws spring inserted, screwing down into the motherboard backplate. The RCX-Z4 is now installed on your K8-AM2 CPU See page 10-11 for the backplate fan controller and fan Installation with user manual...
- Page 7 COOLER RCX-Z4 INTEL P4 LGA775 Installation Remove the fan from the sink by unscrewing the four black screws. Attach both of the LGA775 heatsink retention brackets to the heatsink base. Take off the pre-attached pair of K8-AM2 heatsink retention bracket; keep the four screws...
- Page 8 COOLER RCX-Z4 Stick the protective insulated film onto the back of the heatsink retention brackets. Put the backplate with the screws fixed through the four motherboard holes as illustrated. Place the screws backplate of the screws correct four holes are used, as shown in the diagram highlighted with red.
- Page 9 COOLER RCX-Z4 Place the insulation washer over the screws so they sit on the motherboard as shown. Follow the same procedure for all four screws. Put the four rubber pads top of the four screws Secure the backplate onto the...
- Page 10 Screw the fan onto the heatsink using the four black screws. The RCX-Z4 is now installed on your INTEL LGA 775 CPU See page 10-11 for the backplate fan controller and fan Installation Place the cooler onto the four...
- Page 11 COOLER RCX-Z4 For the backplate fan controller and fan Installation Remove a PCI slot backplate and install the fan control unit. Connect the 3-pin connector of the Y fan cable assigned with a yellow and a black cable to the CPU fan motherboard connector.
- Page 12 Connect the 3-pin connector with the yellow / red / black cable to the Controller Circuit board.. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
- Page 13 www.rosewill.com...
