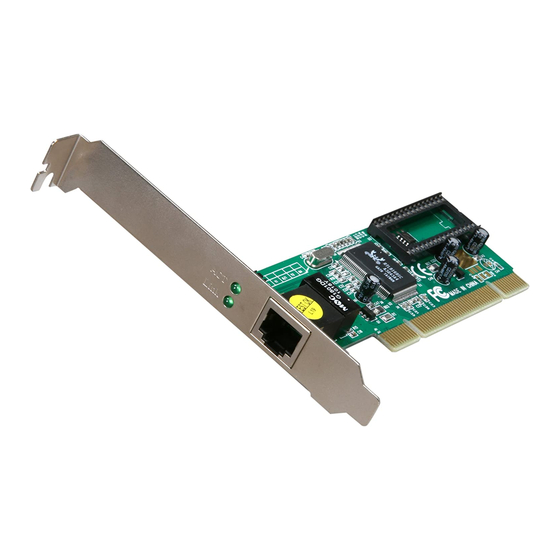

- Page 1 Gigabit PCI LAN Card RC-404 Quick Installation Guide...
- Page 2 Gigabit PCI Card RC-404 Quick Installation Guide Features and Benefits Supports 32-bit PCI (and 64-bit) Bus (in master mode expansion slot) for optimum performance 1 x 10/100/1000Mbps Auto Negotiation and Auto MDI-X Gigabit Port Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3ab (1000BASE-T Gbit/s...
-
Page 3: Before You Start
Gigabit PCI Card RC-404 Quick Installation Guide Before you Start: Package Contents 1 x Gigabit Ethernet PCI Card 1 x Driver CD System Requirements OS: Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit, WIN7 32/64 bit; NOVELL (4.x/5.x/6.x); LINUX2.2X/2.4X/2.6X; Free BSD; MAC OS. -
Page 4: How To Install
Gigabit PCI Card RC-404 Quick Installation Guide How to Install: Installation Follow the instruction given below to install the Gigabit Ethernet PCI Card. Turn your computer off and remove the power plug from the plug socket. Remove the cover from the computer... - Page 5 Gigabit PCI Card RC-404 Quick Installation Guide Remove the metal cover plate on the rear of a free PCI slot. Insert the card into one free PCI slot and screw it firmly on the bracket side.
- Page 6 Gigabit PCI Card RC-404 Quick Installation Guide Insert the card into one free PCI slot and screw it firmly on the bracket side. Placed the metal cover plate on the rear back.
- Page 7 Gigabit PCI Card RC-404 Quick Installation Guide Place the cover back onto the computer. Turn your computer’s power back on, insert the Driver CD into your CD-ROM. When the Auto-run wizard start, select the driver apply to your computer’s OS to install...
- Page 8 Gigabit PCI Card RC-404 Quick Installation Guide 10. Connect a RJ45 cable from RC-404’s port to an available Ethernet port of your router or switch or your modem. Troubleshooting The computer can not detect the Gigabit Ethernet PCI Card 1. Make sure that the Gigabit Ethernet PCI card is correctly plugged into the PCI slot;...
- Page 9 Gigabit PCI Card RC-404 Quick Installation Guide not work, contact your motherboard vendor asking the advanced supporting for BIOS updated. 5. The board itself might be defective. You can try another motherboard testing Gigabit Ethernet PCI card working or not.
- Page 10 Gigabit Ethernet PCI card has the ability of automatic sensing and operating on either speed without manual reconfiguration. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
