Team C TS2 Manual page 16

26

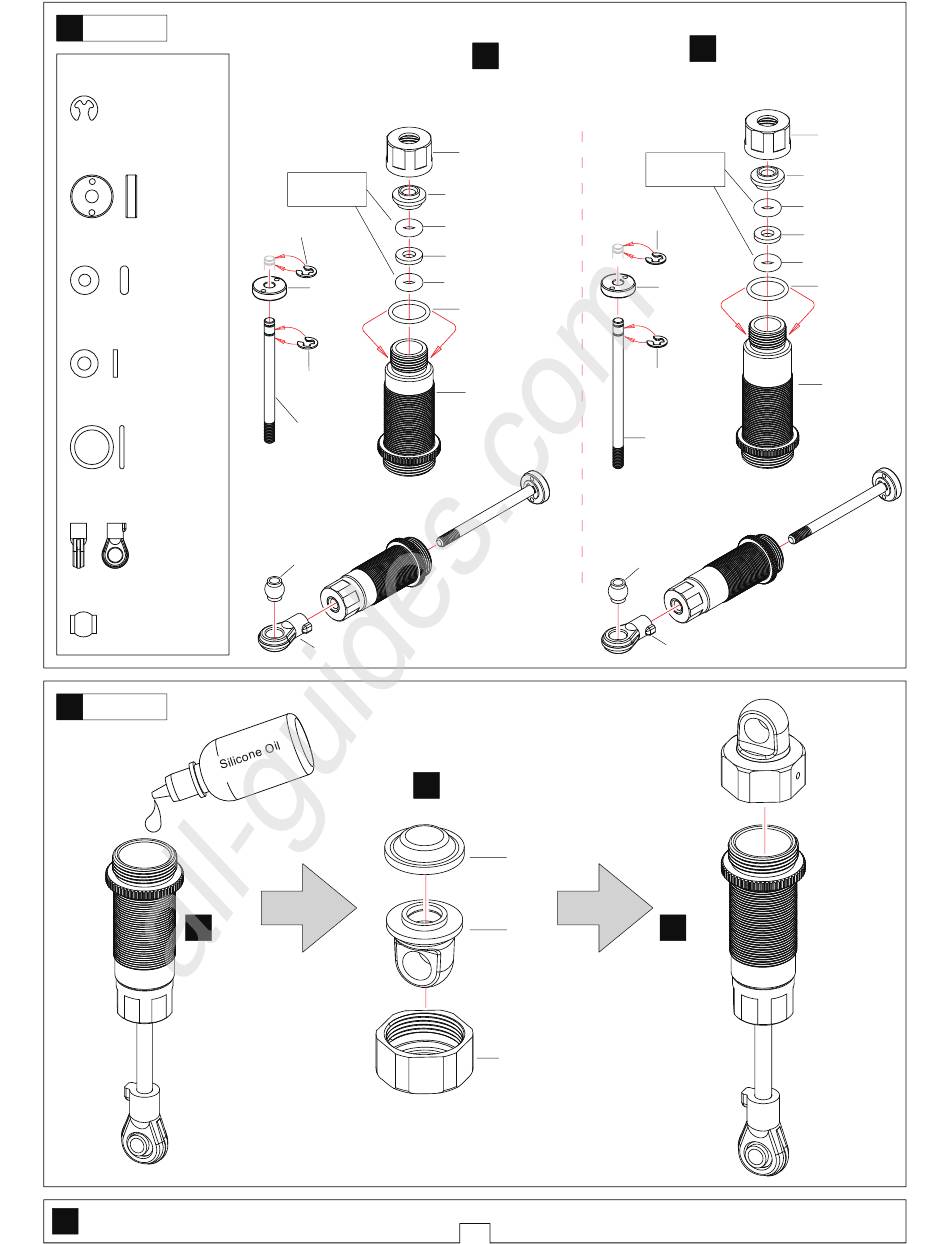

Shock Absorber
TG2013 / TG2014 2.3 E-ring
...........................8
T02096 Shock Piston
..................4
T02097 2.8x1.9 O-ring
.....................8
T02097 3.1x1 Plastic Washer
........................4
TG2025/TG2026 8x1 O-ring
.....................4
T02031 5.8 Ball End
.....................4
T02062 5.8x6 Ball stud
...........................4
27 Shock Absorber
x2
Front-Short
Rear-Long
Assemble as many times as specified
x2
All manuals and user guides at all-guides.com
Front-Short
Put a little oil
T02097
T02097(2.8x1.9)
TG2013
T02097(3.1x1)
T02097(2.8x1.9)
T02096
TG2013
TG2013
T02062
T02031
x4
Rear-Long
x2
TG2025
TG2014
TG2025
TG2014
TG2025
T02062
T02073
T02031
TG2025/TG2026
12
x2
TG2026
Put a little oil
T02097
T02097(2.8x1.9)
T02097(3.1x1)
T02097(2.8x1.9)
T02096 TG2026
T02067
TG2014
T02031
x2
Front-Short
Rear-Long
