Team C TS2 Manual page 14

22

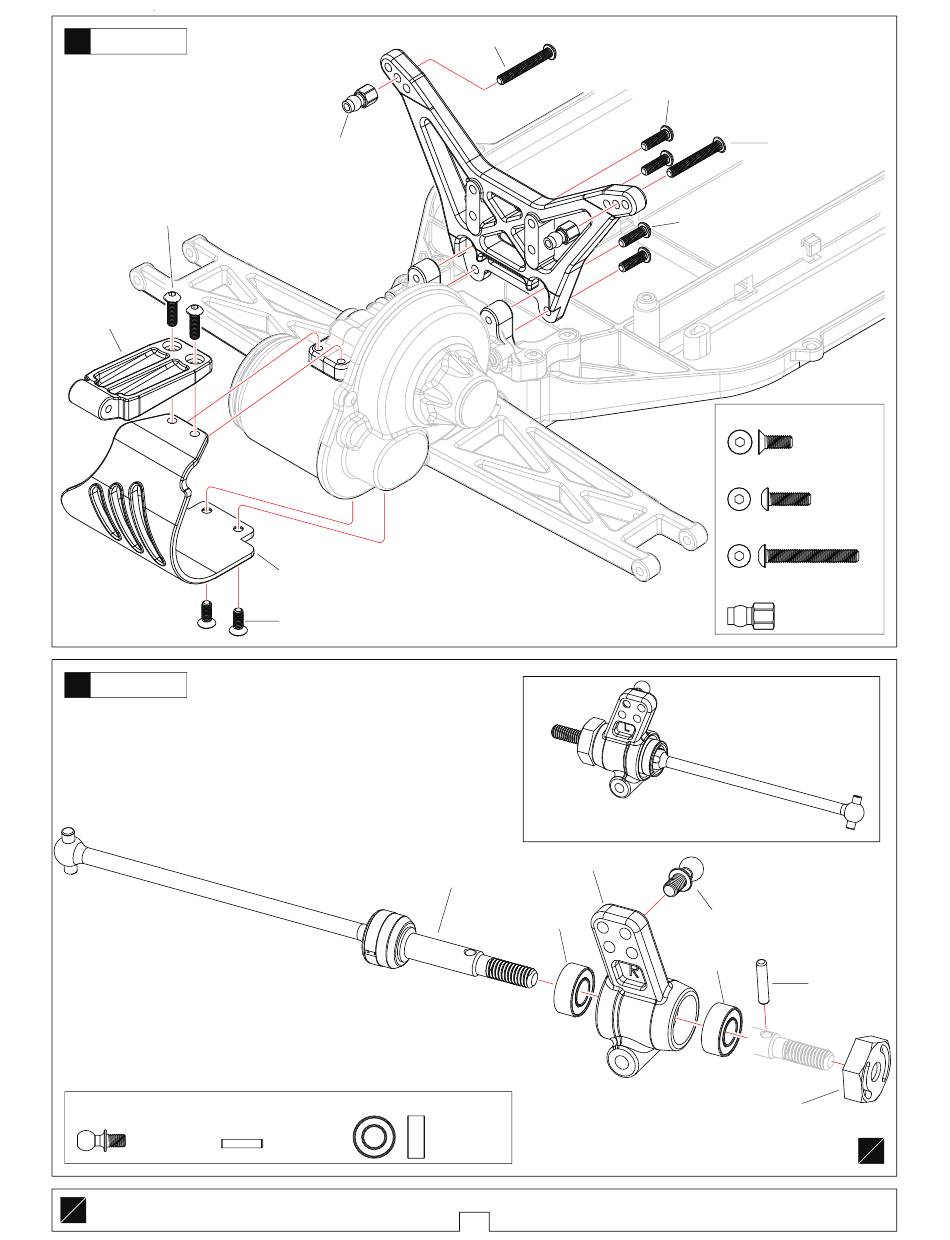

Rear Suspension
TS2025 M3x10
TS2025
23
Rear Suspension
<Right>
T02093 Ball stud-Short
T02034 2x9.8 Shaft
..................2
Assemble Both Left And Right
L
R
All manuals and user guides at all-guides.com
T02082 M3x22
T02063
T02026
T02083 M3x8
TG2012
T02100 5x10x4 Ball Bearing
...............2
..................4
T02013
T02100
10
T02082 M3x10
T02082 M3x22
T02082 M3x10
T02083 M3x8 Screw
..................2
TS2025/T02082 M3x10 Screw
............6
T02082 M3x22 Screw
T02063 5mm Plastic Ball stud
........................2
<Left>
T02093
T02100
T02034
T02034
...2
L
R
