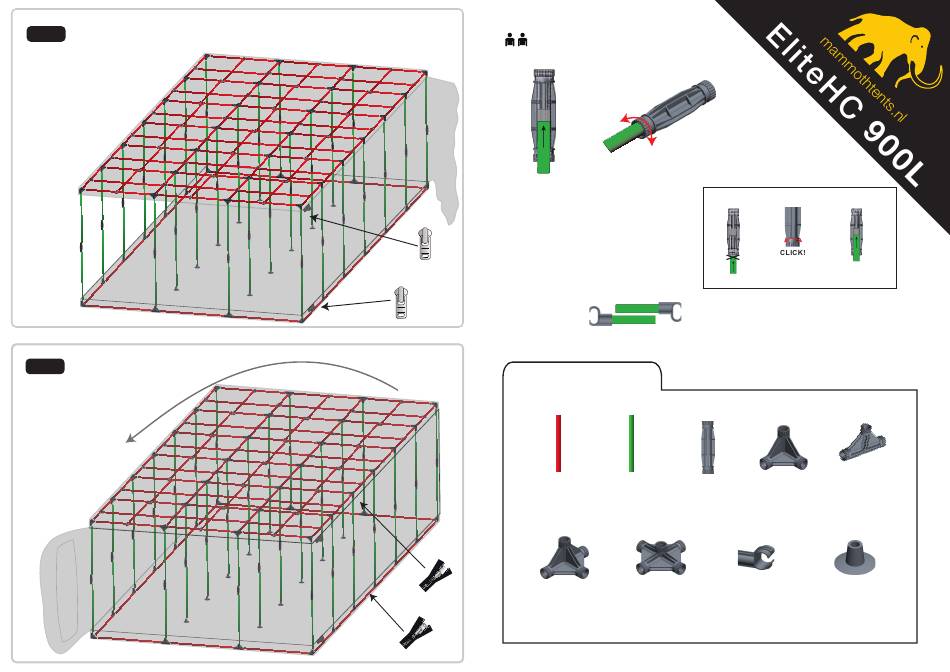

Step 5
Connect wall panel zip to the roof
and base zips (under Velcro flaps).
Step 6
Zip the wall panel to the roof and base.
Assembly Instructions
Two Person Assembly Recommended
Lock poles into connecters
by rotating left or right
Insert pole into connector
(ensure poles are fully inserted)
Equipment Hangers
Lower Equipment Hanger
Parts List
Red Pole
Green Pole
x99
x56
4-Way
5-Way
Join
Join
x14
x10
NOTE
Rotate locking
mechanism until it clicks
Insert pole into connector
(ensure poles are fully inserted)
If unable to Insert pole
Upper Equipment Hanger
Straight
3-Way
3-Way
Connector
Corner
T Piece
x28
x8
x14
Equipment
Support Pole
Hanger Ends
Foot
x72
x10
Advertisement
Related Manuals for Mammoth Tents EliteHC 900L
Summary of Contents for Mammoth Tents EliteHC 900L
- Page 1 Assembly Instructions Step 5 Two Person Assembly Recommended Connect wall panel zip to the roof and base zips (under Velcro flaps). Lock poles into connecters by rotating left or right Insert pole into connector (ensure poles are fully inserted) NOTE Rotate locking mechanism until it clicks Insert pole into connector...
- Page 2 Step 3 Step 1 Insert ceiling poles into 3-way corners, 3-way T pieces, 4-way joins and 5-way joins. 3-Way Corner Fit equipment hanger ends to poles. Position equipment hangers as required. Lay out base ensuring Velcro flap is in front right corner. Fit support poles into 5-way joins at the top and support pole feet at the bottom.
