Related Manuals for Texas Instruments TPA2005D1
Summary of Contents for Texas Instruments TPA2005D1

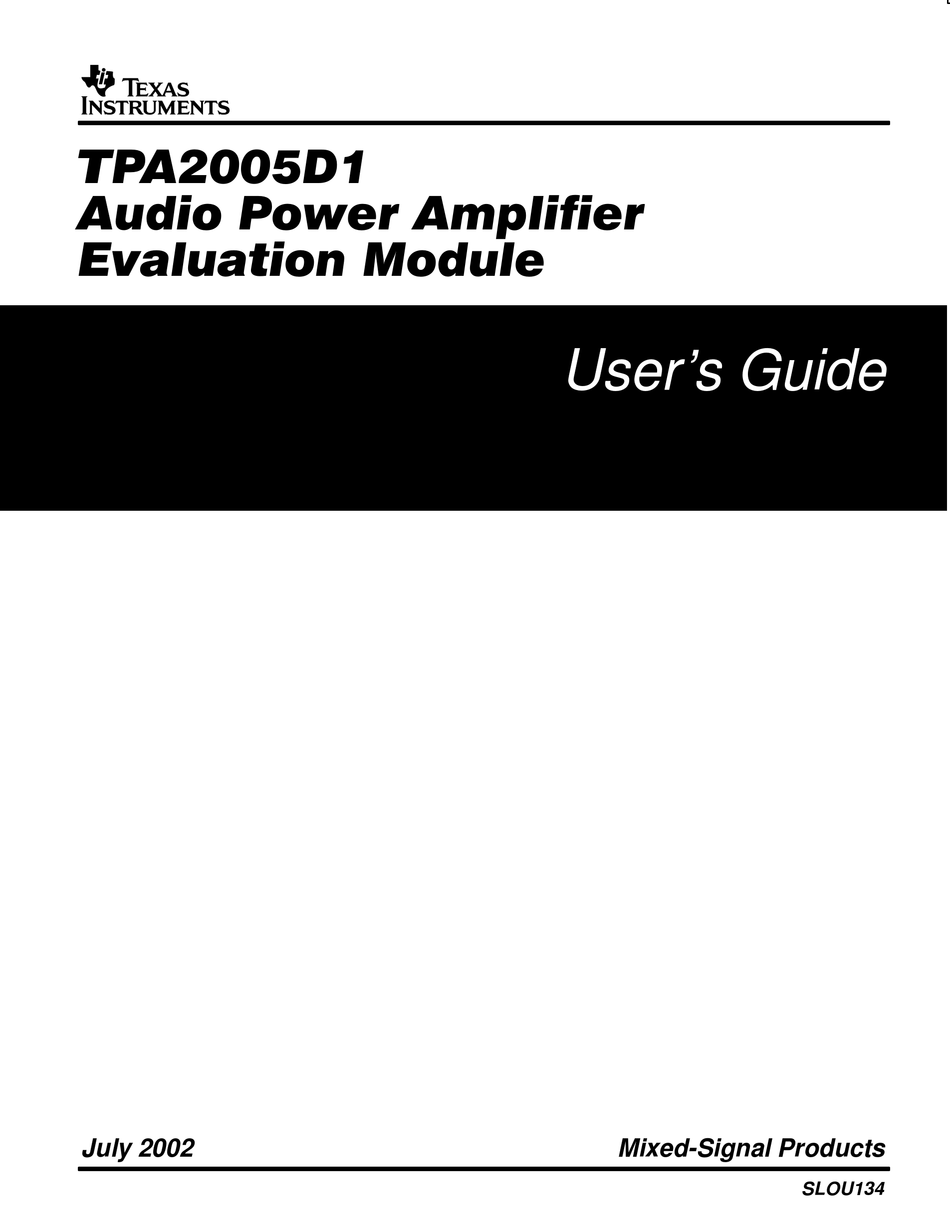

- Page 1 TPA2005D1 Audio Power Amplifier Evaluation Module User’s Guide July 2002 Mixed-Signal Products SLOU134...
- Page 2 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
- Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
- Page 4 EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265 Copyright 2002, Texas Instruments Incorporated...
- Page 5 SLOU011) provides detailed information on the evaluation platform and its use with TI audio evaluation modules. TPA2005D1 1.1-W Mono Filter-Free Class-D Audio Power Amplifier (literature number SLOS369) This is the data sheet for the TPA2005D1 audio amplifier integrated circuit.
- Page 6 FCC Warning FCC Warning This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference.
-
Page 7: Table Of Contents
..........Tables 2–1 Typical TI Plug-N-Play Platform Jumper and Switch Settings for the TPA2005D1 EVM 2–2 Platform Jumper and Switch Settings for the TPA2005D1 EVM . - Page 8 Contents...
-
Page 9: Introduction
Chapter 1 Introduction This chapter provides an overview of the Texas Instruments (TI) TPA2005D1 MicroStar Junior BGA audio amplifier evaluation module (SLOP381). It includes a list of EVM features, a brief illustrated description of the module, and a list of EVM specifications. -
Page 10: Feature Highlights
Feature Highlights 1.1 Feature Highlights The TI TPA2005D1 audio amplifier evaluation module and the TI plug-n-play audio amplifier evaluation platform include the following features: TPA2005D1 Low-Voltage Audio Power Amplifier Evaluation Module 2.5 mm x 2.5 mm MicroStar Junior BGA Fully-differential filter-free class-D amplifier Single channel, bridge-tied load (BTL) 2.5-V and 5.5-V operation... -
Page 11: Description

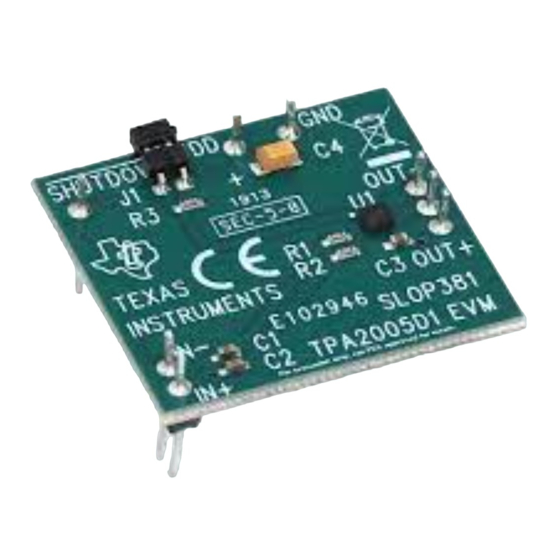

(see Figure 1–1). Figure 1–1. The TI TPA2005D1 Audio Amplifier Evaluation Module † Due to the very small size of the MicroStar Junior BGA IC package, the standard part number TPA2005D1 is replaced with the code PB051. Single in-line header pins are mounted to the underside of the module circuit board. -
Page 12: Tpa2005D1 Evm Specifications
TPA2005D1 EVM Specifications The platform, which has room for a pair of TPA2005D1 evaluation modules, is a convenient vehicle for demonstrating TI’s audio power amplifier and related evaluation modules. The EVMs simply plug into the platform, which automatically provides power to the modules, interconnects them correctly, and connects them to a versatile array of standard audio input and output jacks and connectors. -
Page 13: Operation
Chapter 2 Operation Follow the steps in this chapter to prepare the TPA2005D1 audio amplifier EVM for use. Using the TPA2005D1 EVM with the TI plug-n-play audio amplifier evaluation platform is a quick and easy way to connect power, signal and control inputs, and signal outputs to the EVM, using standard connectors. -
Page 14: Precautions
Precautions 2.1 Precautions Power Supply Input Polarity and Maximum Voltage Always ensure that the polarity and voltage of the external power connected to V power input connector J1, J2, and/or V power input connector J6 are correct. Overvoltage or reverse-polarity power applied to these terminals can open onboard soldered-in fuses and cause other damage to the platform, installed evaluation modules, and/or the power source. -
Page 15: Quick Start List For Platform
1) Ensure that all external power sources are set to off and that the platform power switch S1 is set to off. 2) Install a TPA2005D1 module in platform sockets U3 and U4 for stereo operation (or a module in either U3 or U4 for single channel operation), taking care to align the module pins correctly. -
Page 16: Quick Start List For Stand-Alone
Figure 2–2. Figure 2–2. Quick Start Module Map ‡ Due to the very small size of the MicroStar Junior BGA IC package, the standard part number TPA2005D1 is replaced with the code PB051. Power supply 1) Ensure that all external power sources are set to off. - Page 17 Quick Start List for Stand-Alone 5) Ensure that SHUTDOWN jumper, J1, is installed for active mode, or leave J1 open and drive the SHUTDOWN EVM pin with TTL level logic. 6) Connect an 8-Ω–32-Ω speaker to the module OUT+ and OUT– pins. Power Up 7) Verify correct voltage and input polarity and set the external power supply to on.
-
Page 18: References
5 VDC Right Audio Input (Right) 5 VDC External Mute Control Left Audio Input (Left) † Due to the very small size of the MicroStar Junior BGA IC package, the standard part number TPA2005D1 is replaced with the code PB051. -
Page 19: Tpa2005D1 Evm Schematic Diagram
TPA2005D1GQY mono PCB1 PCB, TPA2005D1 EVM † Due to the very small size of the MicroStar Junior BGA IC package, the standard part number TPA2005D1 is replaced with the code PB051. Note: All items are SMD except terminal posts. Operation... -
Page 20: Tpa2005D1 Evm Pcb Layers
TPA2005D1 EVM PCB Layers 2.4.4 TPA2005D1 EVM PCB Layers The following illustrations depict the TPA2005D1 EVM PCB layers and silk- screen. These drawings are not to scale. Gerber plots can be obtained from any TI sales office. Figure 2–5. TPA2005D1 EVM Top Layer... -
Page 21: Tpa2005D1 Evm Bottom Layer
TPA2005D1 EVM PCB Layers Figure 2–6. TPA2005D1 EVM Bottom Layer Operation... - Page 22 2-10...
