StarTech.com AP300WN2X2W Quick Start Manual

Quick Start Guide
300Mbps Wireless N PoE-Powered Wallplate Access Point
AP300WN2X2W / AP300WN22WUE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x In-Wall Access Point
• 1 x Faceplate
• 1 x Frame for Faceplate
• 2 x Screws
• 2 x Washers
• 1 x Quick Start Guide
• 1 x Instruction Manual CD
System Requirements
• 802.3af / at compatible PoE Switch
• Cat 5e (or better) Ethernet cabling from PoE switch to the Access
Point
• 1 gang receptacle box
LED Indicators
LED State Description
Off No power
PWR
Green Unit powered on
Off Remains off while the unit is initializing
SYS Green Initializing complete, system is ready to use
Green (Blinking) During firmware upgrades, this system LED will blink
Off No network connector
Link/
Green 10/100Mbps network connection established
WAN
Green (Blinking) Indicates WAN activity
Off No network connection
LAN Green 10/100Mbps network connection established
Green (Blinking) Indicates LAN activity
Off The Wireless is not ready
WLAN Green Wireless connection established
Green (Blinking) Indicates Wireless activity
For the most up-to-date information, please visit: www.startech.com

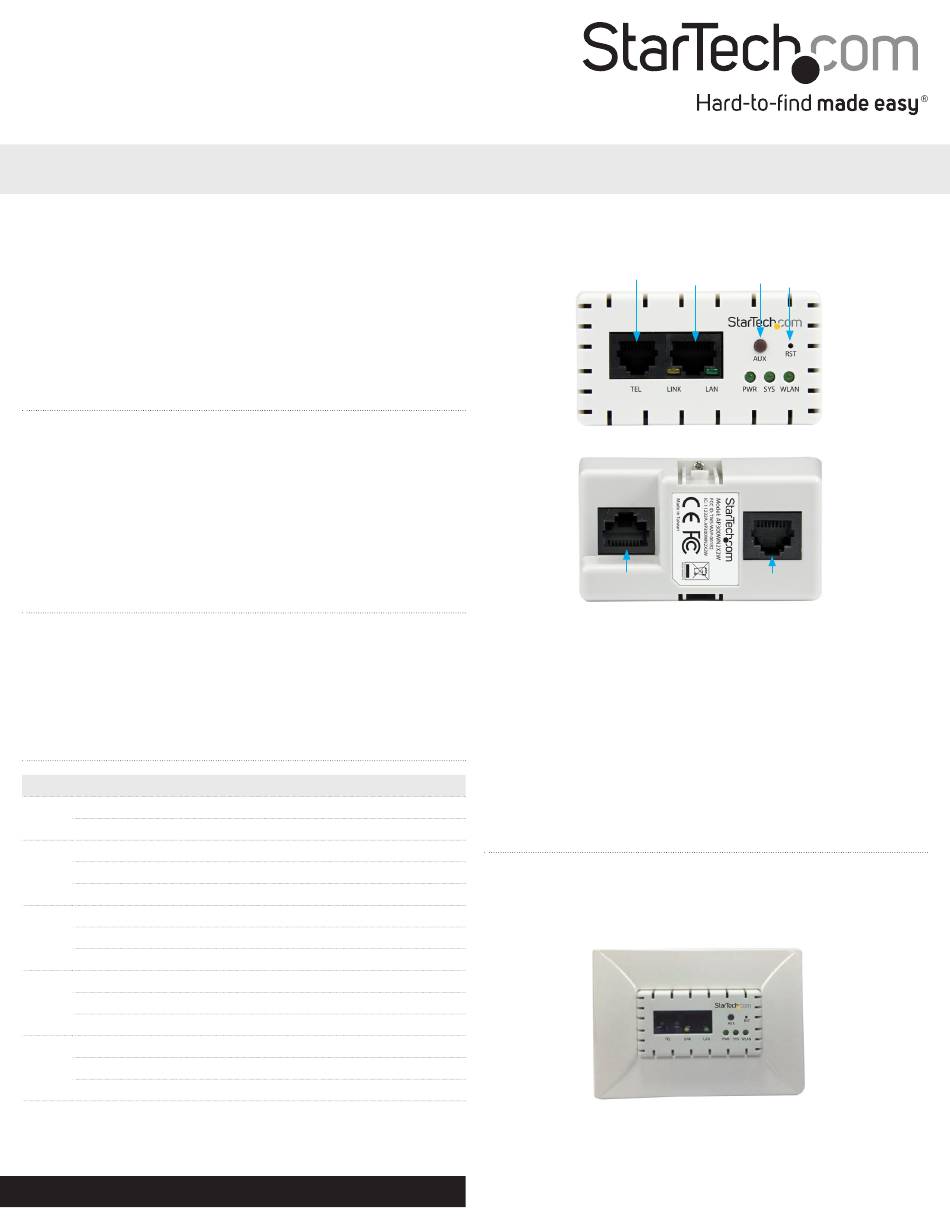

Front View
Ethernet Connector
(transparent)
Rear View
PoE Power / Data
Connector
Reset Procedure
To reset the unit to factory defaults, press and hold the AUX and
Reset buttons simultaneously for 5 seconds and then release.
Default Settings
Default IP Address: 10.59.1.200
Username / Password: admin / admin
Installation
1. Slide the Frame over the back of the AP and secure using the
provided screws w/ washers.
Reset
LAN Connector AUX
Button
Ethernet Connector
(transparent)
*actual product may vary from photos
Manual Revision: 08/07/2014
