StarTech.com WFRAP433ACD Manual

StarTech.com WFRAP433ACD Manual

Wall plug ac750 dual band wireless-ac access point / router / repeater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

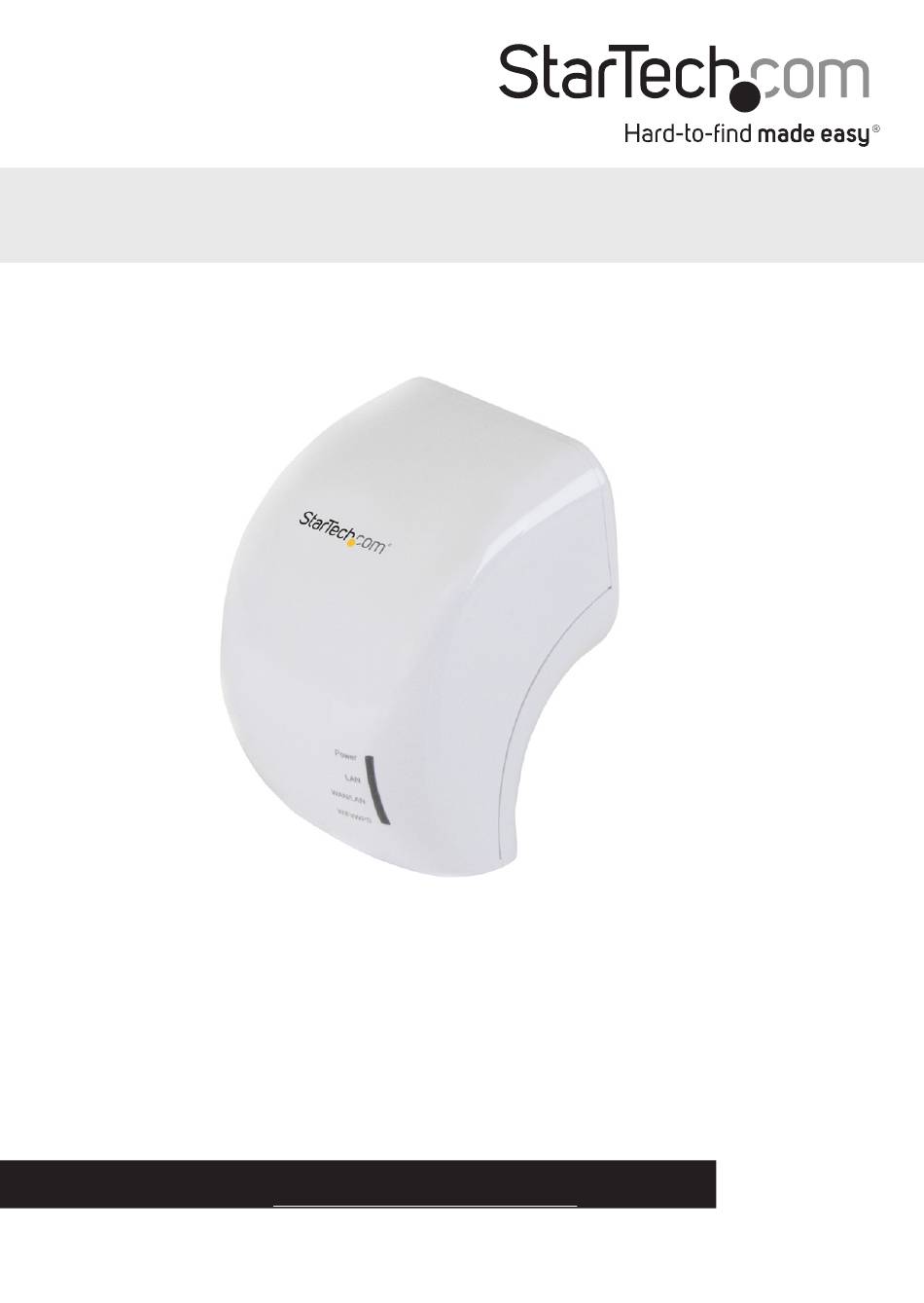

Wall Plug AC750 Dual Band Wireless-
AC Access Point / Router / Repeater
WFRAP433ACD
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/WFRAP433ACD.
Manual Revision: 02/17/2016
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WFRAP433ACD and is the answer not in the manual?

Questions and answers

Related Manuals for StarTech.com WFRAP433ACD

Summary of Contents for StarTech.com WFRAP433ACD

  • Page 1 Wall Plug AC750 Dual Band Wireless- AC Access Point / Router / Repeater WFRAP433ACD *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
  • Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.
  • Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...

  • Page 4: Table Of Contents

    Back up and restore the WFRAP433ACD settings ................. 10 Connecting computers to the device ..........10 Add a wireless computer to the WFRAP433ACD ................10 Use the WFRAP433ACD to add a wireless computer ..............11 Add a wired computer to the WFRAP433ACD ................11 Instruction manual...
  • Page 5 Reset to the factory default settings ..........11 Technical support ...................12 Warranty information ................12 Instruction manual...

  • Page 6: Introduction

    Introduction You can use the WFRAP433ACD to easily create a wireless network from your existing wired network connection or extend the distance and performance of your Wi-Fi® network throughout your home or office. Simply plug the WFRAP433ACD into a wall outlet and set up or enhance your wireless environment through one of three selectable operating modes: access point, router, or repeater.

  • Page 7: Product Diagram

    Product diagram Front view Power LED LAN LED WAN/LAN LED Wi-Fi/WPS LED Bottom view LAN port WPS button WAN/LAN port Reset button Mode switch Instruction manual...

  • Page 8: Back View

    Back view Wall plug interface Wall plug release button Instruction manual...

  • Page 9: About Led Indicators

    About LED indicators The WFRAP433ACD features four LED indicators that are located on the front of the device. For more information about what the LED indicators represent, consult the table below. LED behavior Meaning Illuminated Device is receiving power. Power (green) Not illuminated Device isn’t receiving power.

  • Page 10: Insert One Of The Wall Plugs

    WPS. 2. On the WFRAP433ACD, move the Mode switch to AP/Repeater. 3. Insert the wall plug for your region and plug the WFRAP433ACD into an AC wall outlet. 4. Press and hold the WPS button on the WFRAP433ACD for ten seconds. The Wi-Fi/ WPS LED indicator will start to blink.

  • Page 11: Wirelessly Configure Wi-Fi Repeater Mode

    Wirelessly configure Wi-Fi repeater mode 1. On the WFRAP433ACD, move the Mode switch to AP/Repeater. 2. Insert the wall plug for your region and plug the WFRAP433ACD into an AC wall outlet. 3. On your computer, click the network icon on your desktop.

  • Page 12: Create A Wireless Access Point

    Create a wireless access point To use the WFRAP433ACD as a wireless access point, you need to connect it to a wired network. The WFRAP433ACD then broadcasts the wired Internet signal as a wireless signal that multiple devices can access. This works best in places where only a wired network is available.

  • Page 13: Use The Device As A Wireless Router

    Use the device as a wireless router You can connect the WFRAP433ACD to a DSL or cable modem and use it as a regular wireless router. Using the WFRAP433ACD as a wireless router works best in situations where more than one user needs to access the Internet.

  • Page 14: Managing The Wfrap433Acd

    You can use the web interface to change the settings on the WFRAP433ACD. To access the web interface, complete the following: 1. Insert the wall plug for your region and plug the WFRAP433ACD into an AC wall outlet. 2. On your computer, open a web browser and enter http://192.168.10.1 or http:// ap.setup in the address bar.

  • Page 15: Back Up And Restore The Wfrap433Acd Settings

    These steps apply to a computer running a version of Windows. 1. Log on to the wireless computer that you want to add. 2. Insert the wall plug for your region and plug the WFRAP433ACD into an AC wall outlet.

  • Page 16: Use The Wfrap433Acd To Add A Wireless Computer

    Use the WFRAP433ACD to add a wireless computer 1. Log on to the wireless computer that you want to add. 2. Insert the wall plug for your region and plug the WFRAP433ACD into an AC wall outlet. 3. Press and hold the WPS button on the WFRAP433ACD for five seconds. The Wi-Fi/ WPS LED indicator will start to blink and continue blinking for approximately two minutes.
  • Page 17 Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
