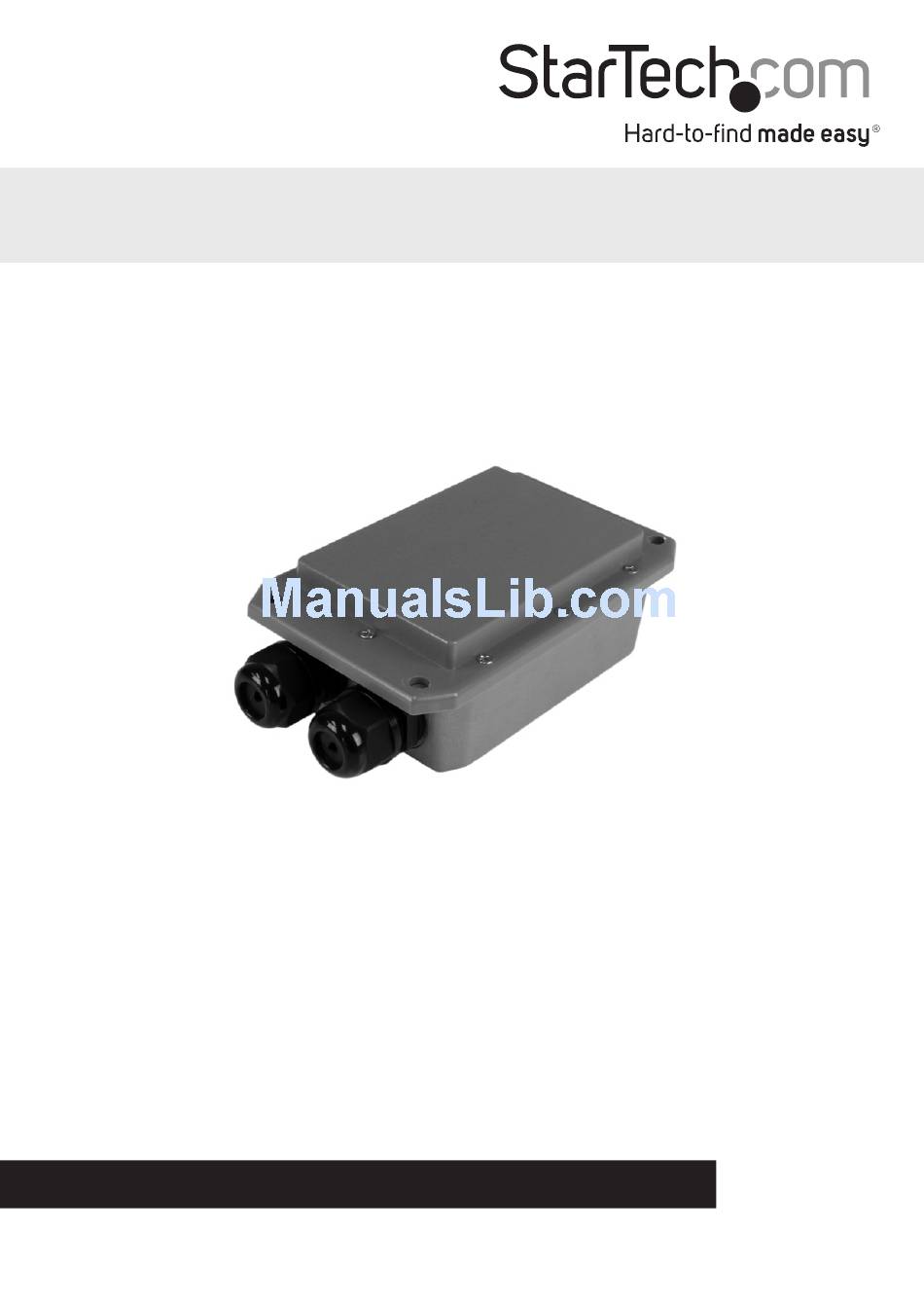

Metal IP67 Outdoor Wireless-N Access
Point - 300Mbps
R300WN22MOD / R300WN22ODG / R300WN22ODE /
R300WN22MOD5 / R300WN22MO5G / R300WN22MO5E
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/19/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com R300WN22MOD
Summary of Contents for StarTech.com R300WN22MOD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/19/2014...
-
Page 2: Fcc Compliance Statement
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment. - Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 4 Instruction Manual...
-
Page 5: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................1 Front View ..............................1 LED Indicators ..................2 Installation ....................2 Preparing Your Site ........................... 2 Hardware Installation ..........................3 Operation ....................4 Default Settings ............................4 AP Mode Setup ............................ -
Page 6: Introduction
Introduction Packaging Contents • 1 x Outdoor Wireless Access Point • 1 x PoE Injector • 1 x Pole Mounting Kit • 1 x Power Adapter • 1 x Quick Start Guide System Requirements • A networked computer system with a Java-enabled web browser (for configuration) •... -
Page 7: Led Indicators
LED Indicators Wireless Signal Shows different signal strength levels. (Only supported in WDS, Strengths LEDs Client Bridge + Repeater AP, CPE + Repeater AP Mode) Power LED A solid green light indicates the device is powered and ready. A solid green light indicates the LAN port connection is OK. A LAN LED blinking green light indicates that the unit is transmitting data over that port. -
Page 8: Hardware Installation
Hardware Installation 1. Connect the included power adapter to an available wall outlet and the DC jack to the PoE injector. 2. Connect an Ethernet cable from the LAN port of the PoE Injector to your LAN switch or router. 3. -
Page 9: Operation
Operation For complete operating instructions / specifications, please visit www.startech.com/ R300WN22MOD Default Settings Default IP Address: 192.168.2.254 Username / Password: root / default 1. Configure a system to be on the same subnet as the AP (e.g. 192.168.2.2 – 253). -
Page 10: Ap Mode Setup
5. Once the AP reboots into your desired mode, re-connect to the web interface. 6. Select System -> Setup Wizard to go through the basic configuration for that mode. Available screens and settings will vary, depending on the mode selected. AP Mode Setup LAN Setup –... - Page 11 Wireless Setup – Configure your desired wireless settings including SSID, wireless mode and transmit power, then click Next. Wireless Security Setup – Select your desired wireless security type and configure a key, then click Finish to apply your settings and restart the AP. Note: It is strongly recommended to configure security, to avoid unwanted access to your wireless network.
- Page 12 Instruction Manual...
- Page 13 Instruction Manual...
-
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
