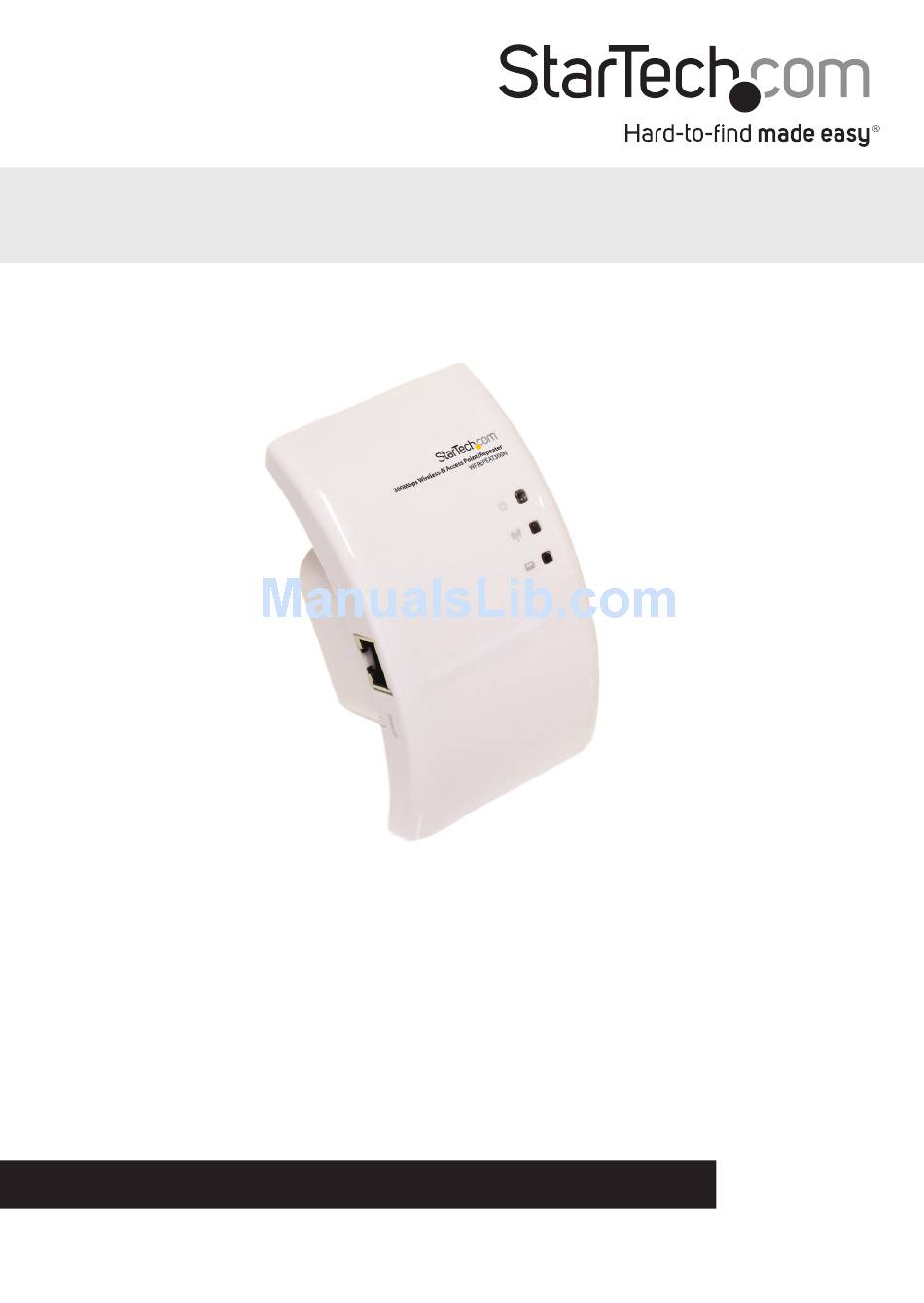

WFREPEAT300N
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/18/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com WFREPEAT300N
Summary of Contents for StarTech.com WFREPEAT300N
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/18/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Diagram ....................2 Front ................................2 Back ................................2 Installation ....................3 Repeater Mode Setup: ..........................3 Access Point Mode Setup: ........................6 Advanced Configuration ...............8 Wireless ................................. 9 Wireless Cont’d ............................ -
Page 4: Introduction
802.11b/802.11g networks. As a wireless access point (AP), any non- wireless router can be given wireless-N capabilities. Built in wireless security (WEP/ WPA/WPA2) will help to keep the network private. Backed by a StarTech.com 2-year warranty and free lifetime technical support. -
Page 5: Diagram
Diagram Front Power Wireless Link/Activity Ethernet Link/Activity RJ45 Ethernet port Reset Button Back Modular Wall Plug Plug Release Button Instruction Manual... -
Page 6: Installation
Installation Repeater Mode Setup: 1. Connect the Repeater to an available AC electrical outlet. 2. Wired Setup: Connect an RJ45 Ethernet cable from the Repeater to your computer. Wireless Setup: Connect to the wireless network ‘WiFi-Repeater’ . 3. The default IP address on the Repeater is 192.168.10.1; configure your computer to a matching network address (192.168.10.x, where ‘x’... - Page 7 7. The next screen will display a list of detected wireless networks. Click the ‘Refresh List’ button to rescan. Select the desired wireless network and then click the ‘Next’ button. 8. Wireless encryption settings will be automatically detected and listed on the following screen.
- Page 8 9. After the unit has rebooted, the configuration settings/status will be listed. Confirm that the Mode has been set and the correct network name (SSID) is listed and connected to. Instruction Manual...
-
Page 9: Access Point Mode Setup
Access Point Mode Setup: 1. Connect the Repeater to an available AC electrical outlet. 2. Wired Setup: Connect an RJ45 Ethernet cable from the Repeater to your computer. Wireless Setup: Connect to the wireless network ‘WiFi-Repeater’ . 3. The default IP address on the Repeater is 192.168.10.1; configure your computer to a matching network address (192.168.10.x, where ‘x’... - Page 10 7. The Repeater will automatically pre-configure itself with default information and then reboot. If there are multiple wireless networks or a problem occurs with the automatic setup, Advanced Configuration may be required. Otherwise the setup is complete. Instruction Manual...
-
Page 11: Advanced Configuration
Advanced Configuration Advanced configuration options for the Repeater can be accessed via the web interface. 1. Connect an RJ45 Ethernet cable from the Repeater to your computer. 2. The default IP address on the Repeater is 192.168.10.1; configure your computer to a matching network address (192.168.10.x, where ‘x’... -
Page 12: Wireless
Wireless Click the link for ‘Wireless’ on the main menu, followed by ‘Basic Settings’ . This will present the basic wireless configuration options for the current mode and also allow for manually changing the Mode type. Other options are available on the main menu, such as encryption settings (Security), list of detected WiFi networks (Site Survey), time of use scheduling (Schedule) and WiFi Protected Setup (WPS). -
Page 13: Wireless Cont'd
Wireless Cont’d Instruction Manual... -
Page 14: Lan Interface
LAN Interface The ‘LAN Interface’ options allow for configuration of settings for the LAN port (RJ45), when used in Access Point mode. The Unit’s IP address, DHCP settings and other related settings can be customized to match your needs. Management The ‘Management’... -
Page 15: Save/Reload Settings
Save/Reload Settings The current settings for the unit can be saved to a file on your computer and reloaded onto the Repeater at any time. The Repeater can be reset to factory defaults from this screen, by clicking the ‘Reset’ button. The Repeater can also be reset to factory defaults by pressing and holding the ‘Reset’... -
Page 16: Specifications
Specifications Supported Wireless IEEE 802.11b/g/n Standards Chipset ID Realtek RTL8196C Connectors 1 x RJ45 Ethernet female 1 x Power LEDs 1 x Wireless Link/Activity 1 x Ethernet Link/Activity Antenna Configuration 2x2:2 (TxR:S) Antenna Type 2dBi (internal) Wireless Frequency Range 2.4 GHz ~ 2.485 GHz Wireless Bandwidth 20/40MHz Wireless Encryption... -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
